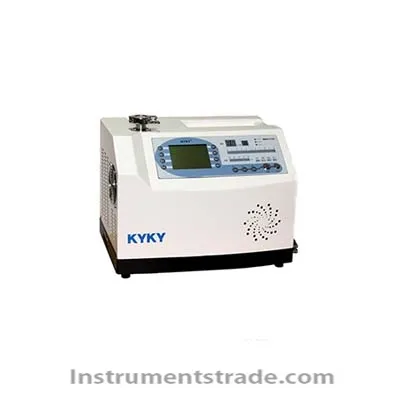

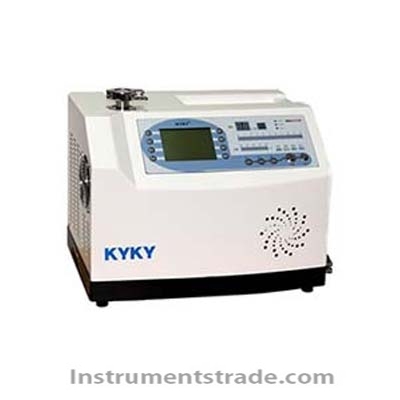

ZQJ-2300 Helium Mass Spectrometer Leak Detector
Product Introduction
The ZQJ-2300 Helium Mass Spectrometer Leak Detector is a compact and mobile helium leak detector designed for high-sensitivity leak testing of vacuum systems, pressure vessels, components, and sealed assemblies. Using helium or hydrogen as a tracer gas, the instrument detects tracer gas entering through microscopic leaks and determines leak location and leakage rate.
Helium is widely used as a tracer gas because of its low background level, small molecular size, low viscosity, high diffusivity, and inert chemical properties. The ZQJ-2300 combines a mass spectrometer-based detection system with fast vacuum protection and background clearance to provide reliable leak detection performance.
With a compact design, built-in auxiliary pumping interface, RS232 communication and external I/O, the ZQJ-2300 is suitable for both laboratory and industrial leak testing.

Performance Features
•  High leak detection sensitivity: Minimum detectable leak rate of 2.0 × 10⁻¹¹ Pa·m³/s.
•  Wide measurement range: 1 × 10⁻¹¹ to 1 × 10⁻⁵ Pa·m³/s.
•  Fast response: Response time ≤2 seconds for efficient leak localization.
•  Rapid startup: Startup time of less than 7 minutes.
•  Compact mobile design: 39.5 kg body with dimensions of 500 × 354 × 397 mm for convenient movement.
•  Fast background clearance: Quickly removes helium background for stable measurement.
•  Reliable vacuum protection: Rapid vacuum protection helps protect the detection system.
•  Long-life yttrium oxide filament: Improves service life and helps reduce maintenance requirements.
•  Built-in auxiliary pumping interface: Supports different vacuum system configurations.
•  Multiple communication interfaces: RS232 and external I/O facilitate integration with automated test equipment.

Working Principle
The ZQJ-2300 Helium Mass Spectrometer Leak Detector uses helium as a tracer gas. Helium is introduced into or sprayed around the test component depending on the selected leak-testing method.
If a leak exists, helium passes through the leakage path and enters the vacuum detection system. The mass spectrometer is tuned to selectively detect helium ions while minimizing interference from other gases.
The detected helium signal is converted into a quantitative leak-rate value. By monitoring changes in the helium signal while scanning the test component, operators can identify the location and magnitude of leaks.
The instrument's fast background clearance and vacuum protection functions help maintain stable detection performance during continuous testing.

Technical Parameters

Parameter	Specification
Product Name	ZQJ-2300 Helium Mass Spectrometer Leak Detector
Minimum Detectable Leak Rate	2.0 × 10⁻¹¹ Pa·m³/s
Measurement Range	1 × 10⁻¹¹ to 1 × 10⁻⁵ Pa·m³/s
Maximum Test Pressure	1000 Pa
Response Time	≤2 s
Startup Time	<7 min
Tracer Gas	Helium or hydrogen
Power Supply	220 VAC ±10%, 50 Hz, 5 A
Operating Temperature	5–45℃
Relative Humidity	<80%
Dimensions (L × W × H)	500 × 354 × 397 mm
Weight	39.5 kg
Communication	RS232, External I/O
Auxiliary Pumping	Built-in auxiliary pumping interface
Filament	Yttrium oxide filament

Application Scenarios
Vacuum Equipment
Used for leak testing of vacuum chambers, vacuum components, vacuum systems, and related equipment.
Cryogenic and LNG Equipment
Suitable for leak detection of cryogenic systems, LNG components, valves, and sealed assemblies.
Automotive Manufacturing
Used for leak testing of automotive components, air-conditioning systems, fuel systems, and sealed parts.
Lithium Battery and New Energy
Suitable for leak testing of battery components, energy-storage systems, and other sealed new-energy products.
Electronics and Semiconductor Manufacturing
Used for high-sensitivity leak testing of electronic components, semiconductor equipment, and vacuum assemblies.
Aerospace and Nuclear Industry
Provides high-sensitivity leak detection for demanding applications in aerospace, defense, nuclear technology, and scientific research.
High-Voltage Electrical Equipment
Suitable for leak testing of sealed electrical components, switchgear, and other high-voltage equipment.

ZQJ-2300 vs Conventional Leak Detectors

Feature	ZQJ-2300 Helium Mass Spectrometer Leak Detector	Conventional Leak Detector
Detection Technology	Helium mass spectrometry	General gas/pressure detection
Minimum Leak Rate	2.0 × 10⁻¹¹ Pa·m³/s	Typically higher
Measurement Range	1 × 10⁻¹¹–1 × 10⁻⁵ Pa·m³/s	Model dependent
Response Time	≤2 s	Often slower
Startup Time	<7 min	Model dependent
Tracer Gas	Helium / hydrogen	Model dependent
Background Clearance	Fast	Basic or manual
Vacuum Protection	Rapid protection	Model dependent
Communication	RS232 + External I/O	Model dependent
Mobility	Compact mobile design	Varies

Frequently Asked Questions (FAQ)
1. What is the ZQJ-2300 used for?
The ZQJ-2300 is used for high-sensitivity leak detection of vacuum systems, sealed components, pressure vessels, valves, batteries, electronic components, and other products.
2. What tracer gases can the ZQJ-2300 use?
The detector can use helium or hydrogen as the tracer gas. Helium is commonly preferred because it is inert, highly diffusive, and easy to detect by mass spectrometry.
3. What is the minimum detectable leak rate?
The minimum detectable leak rate is 2.0 × 10⁻¹¹ Pa·m³/s.
4. What is the measurement range?
The specified measurement range is 1 × 10⁻¹¹ to 1 × 10⁻⁵ Pa·m³/s.
5. How quickly does the detector respond?
The response time is ≤2 seconds, allowing rapid identification of leak locations.
6. How long does the ZQJ-2300 take to start?
The startup time is less than 7 minutes, helping reduce preparation time between tests.
7. Can the ZQJ-2300 be integrated with an automated testing system?
Yes. The instrument provides RS232 and external I/O interfaces, allowing connection with external control and automation systems.
8. Is the ZQJ-2300 suitable for industrial applications?
Yes. Its compact mobile design, fast response, vacuum protection, and high sensitivity make it suitable for industrial leak testing as well as laboratory and research applications.
