ZP-01 Cell Culture Roller Bottle Machine

Position: Home > > Life science instrument and equipment > Biological engineering equipment > Rotating bottle machine > ZP-01 Cell Culture Roller Bottle Machine

ZP-01 Cell Culture Roller Bottle Machine

Product ID：SHGCzpj004

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZP-01

Brand NameHBHENGFENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZP-01 Cell Culture Roller Bottle Machine

Product Overview

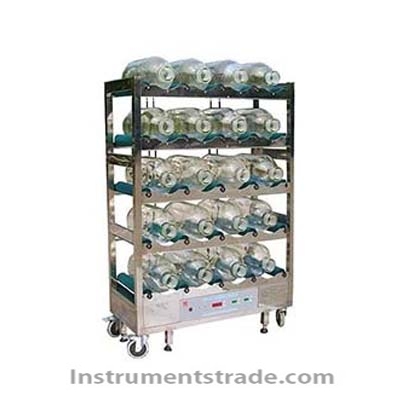

The ZP-01 is a laboratory cell culture roller bottle machine designed for continuous and stable rotation during roller bottle cell culture. It provides stepless speed adjustment from 3 to 20 rpm with a specified speed control accuracy of ±0.01 rpm, supporting consistent culture conditions for biological research and production.
With a compact structural design, low operating noise, simple operation, and long-term continuous operation capability, the ZP-01 is suitable for research institutions, laboratories, universities, and biotechnology-related production environments requiring reliable roller bottle culture equipment.

Key Features
• Wide low-speed range: Stepless rotation adjustment from 3 to 20 rpm for different cell culture requirements.
• Precise speed control: Speed control accuracy of ±0.01 rpm with a dedicated speed calibration function.
• Stable continuous operation: Designed for continuous operation exceeding 100 days.
• Low-noise operation: Overall operating noise is below 30 dB(A), suitable for laboratory environments.
• Compact and mobile design: Relatively lightweight structure with convenient movement and simple operation.
• Reliable drive system: Motor rated power is ≤30 W, providing stable low-speed rotation for extended operation.

Working Principle
The ZP-01 uses a controlled motor-driven roller mechanism to continuously rotate cell culture roller bottles at a preset low speed. The rolling motion helps maintain controlled contact between the culture medium and the inner surface of the roller bottle, supporting cell attachment and growth in suitable culture workflows.
The rotation speed can be adjusted steplessly between 3 and 20 rpm. The speed calibration function helps maintain the required rotational accuracy during operation, while the stable drive system supports long-duration continuous culture processes.

Technical Specifications

Specification	ZP-01
Product Type	Cell Culture Roller Bottle Machine
Power Supply	AC 220 V ±10%, 50 Hz
Motor Rated Power	≤30 W
Rotation Speed Range	3–20 rpm
Speed Adjustment	Stepless
Speed Control Accuracy	±0.01 rpm
Speed Calibration	Yes
Continuous Operation	More than 100 days
Operating Noise	<30 dB(A)
Dimensions (L × W × H)	1120 × 616 × 1616 mm
Ambient Temperature	5–45°C
Relative Humidity	≤90% RH
Atmospheric Pressure	86–106 kPa
Operating Environment	Free from corrosive gases and strong magnetic fields

Applications
• Cell culture research: Continuous roller bottle rotation for biological and cell culture experiments.
• Biological product research: Supporting the culture and production research of biological products.
• Biotechnology laboratories: Routine cell culture processes requiring stable low-speed rotation.
• Research institutions and universities: Cell biology, biotechnology, biomedical research, and laboratory teaching.
• Biopharmaceutical applications: Supporting suitable roller bottle-based cell culture and biological production workflows.
• Long-duration culture: Continuous operation for extended experimental or production cycles.

Applicable Standards
The ZP-01 is designed for laboratory and biological product research applications. Users should operate the equipment according to applicable laboratory electrical safety requirements, cell culture protocols, and environmental conditions specified by the manufacturer.

Comparison

Feature	ZP-01 Cell Culture Roller Bottle Machine	Conventional Laboratory Shaker	Cell Culture Incubator with Integrated Rotation
Primary Function	Roller bottle rotation	General sample agitation	Temperature-controlled cell culture with rotation
Rotation Speed	3–20 rpm	Usually higher	Model dependent
Speed Adjustment	Stepless	Model dependent	Model dependent
Speed Control Accuracy	±0.01 rpm	Model dependent	Model dependent
Continuous Operation	>100 days	Model dependent	Model dependent
Operating Noise	<30 dB(A)	Model dependent	Model dependent
Application	Roller bottle cell culture	General mixing and agitation	Integrated cell culture
Temperature Control	External/environment dependent	Model dependent	Usually integrated
Speed Calibration	Yes	Model dependent	Model dependent

FAQ
Q1: What is the speed range of the ZP-01?
The working speed range is 3–20 rpm with stepless speed adjustment.
Q2: How accurately can the rotation speed be controlled?
The specified speed control accuracy is ±0.01 rpm, and the machine also provides a speed calibration function.
Q3: How long can the ZP-01 operate continuously?
The ZP-01 is designed for continuous operation exceeding 100 days, making it suitable for long-duration cell culture processes.
Q4: Is the ZP-01 noisy during operation?
The overall operating noise is specified as less than 30 dB(A), supporting use in laboratory environments where low noise is important.
Q5: What is the power requirement?
The machine uses an AC 220 V ±10%, 50 Hz power supply, and the motor rated power is ≤30 W.
Q6: What environmental conditions are required?
The recommended operating environment is 5–45°C with relative humidity ≤90% and atmospheric pressure of 86–106 kPa. The surrounding environment should be free from corrosive gases and strong magnetic fields.
Q7: What laboratories can use the ZP-01?
It is suitable for research institutions, universities, biotechnology laboratories, biopharmaceutical research facilities, and other organizations conducting cell culture and biological product research.
Q8: What is the main advantage of a roller bottle machine in cell culture?
The controlled rolling motion provides stable and repeatable surface exposure of the culture medium to the inner wall of roller bottles, making it suitable for cell culture workflows requiring continuous low-speed rotation.
