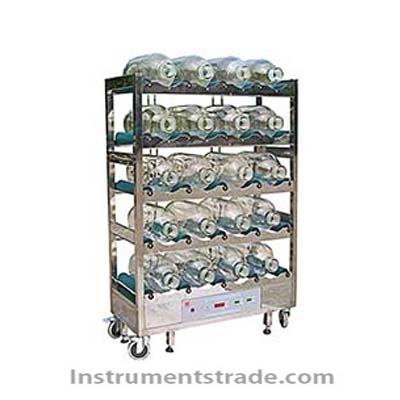

ZP-01 Cell Culture Roller Bottle Machine

Position: Home > > Life science instrument and equipment > Biological engineering equipment > Rotating bottle machine > ZP-01 Cell Culture Roller Bottle Machine – 40-Bottle Capacity

ZP-01 Cell Culture Roller Bottle Machine – 40-Bottle Capacity

Product ID：SHGCzpj022

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZP-01

Brand NameHBHENGFENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZP-01 Cell Culture Roller Bottle Machine – 40-Bottle Capacity
Product Introduction
The ZP-01 Cell Culture Roller Bottle Machine is a laboratory cell culture roller designed for the production and research of biological products. With a 40-bottle capacity, optimized mechanical design, advanced materials and precision motor control, it provides stable and reliable continuous rotation for roller bottle cell culture.
The machine features specially designed rubber rollers to synchronize the rotation speed of all culture bottles. Its stepper motor and precision control system provide smooth speed adjustment, while the digital speed display allows operators to monitor the actual bottle rotation speed directly.
With a compact, lightweight and easy-to-move design, the ZP-01 is suitable for research institutes, laboratories, universities, schools and biotechnology companies.

Key Features
•  40-bottle capacity: Designed for high-throughput roller bottle cell culture.
• Synchronized rotation: Specially manufactured rubber rollers help maintain consistent rotation among culture bottles.
• Precision speed control: Stepper motor technology provides stable and continuously adjustable rotation.
•  Wide speed range: Adjustable from 3–20 rpm.
• Digital speed display: Directly displays the culture bottle rotation speed for convenient monitoring.
•  High speed accuracy: Speed control precision up to ±0.01 rpm.
• Oil-free bearings: Reduce the risk of oil contamination during cell culture operations.
•  Stable operation: Reliable rotation speed for consistent cell culture conditions.
• Lightweight and portable: Convenient for laboratory movement and equipment arrangement.
•  Low power consumption: Rated power of only 50 W.

Working Principle
The ZP-01 uses a stepper motor and precision speed control system to drive the roller assembly at a preset rotation speed. Culture bottles are placed on the rubber rollers, and friction between the bottles and rollers causes the bottles to rotate continuously.
The specially designed rubber rollers help synchronize the rotational speed of multiple culture bottles, providing consistent culture conditions. The digital speed meter displays the operating speed, while the electronic control system allows the operator to adjust the rotation rate within the specified range.
Oil-free bearings are used in the mechanical transmission system to minimize potential contamination and support clean cell culture operations.

Technical Specifications

Parameter	Specification
Model	ZP-01
Product Type	Cell Culture Roller Bottle Machine
Bottle Capacity	40 bottles
Bottle Specification	2000 mL
Speed Range	3–20 rpm
Speed Control Precision	±0.01 rpm
Motor	Stepper Motor
Speed Display	Digital
Bearing Type	Oil-free bearing
Power Supply	220 V, 50 Hz
Power	50 W
Application	Biological product production and research

Applications
The ZP-01 40-bottle cell culture roller machine is suitable for:
•  Cell culture and biological research
•  Roller bottle cell culture
•  Biopharmaceutical research
•  Biological product production
•  Vaccine and biological product research
•  Biotechnology laboratories
•  Cell and tissue culture research
•  University and research institute laboratories
•  Pilot-scale biological production

ZP-01 vs. Conventional Roller Bottle Culture Equipment

Feature	ZP-01 Cell Culture Roller	Conventional Roller Equipment
Capacity	40 bottles	Often lower
Speed Control	Continuously adjustable	May be limited
Speed Range	3–20 rpm	Model-dependent
Speed Precision	±0.01 rpm	Generally lower
Speed Display	Digital display	May require manual monitoring
Bottle Synchronization	Special rubber rollers	May vary between bottles
Bearings	Oil-free	Conventional bearings may be used
Motor	Stepper motor	Conventional motor
Operation	Simple and stable	Model-dependent
Power	50 W	Usually varies

FAQ
What is the ZP-01 used for?
The ZP-01 is a cell culture roller bottle machine designed for cell culture, biological product research and production.
How many bottles can the ZP-01 accommodate?
The supplied configuration provides a capacity of 40 roller bottles.
What bottle capacity is supported?
The specified product configuration is designed for 2000 mL culture bottles.
What is the rotation speed range?
The rotation speed can be adjusted from 3 to 20 rpm.
How accurately can the rotation speed be controlled?
The specified speed control precision is ±0.01 rpm.
Does the machine display the actual rotation speed?
Yes. A digital speed meter directly displays the culture bottle rotation speed.
How are the bottles kept synchronized?
The machine uses specially manufactured rubber rollers designed to help maintain synchronized rotation of all culture bottles.
Does the ZP-01 use oil-free bearings?
Yes. Oil-free bearings are used to help avoid potential contamination during cell culture operations.
