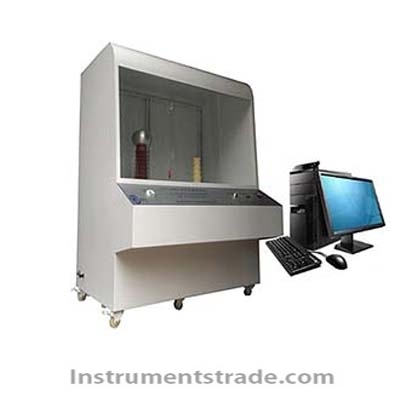

ZJC – 50KV voltage breakdown test instrument

Product ID:WSHdyjc002

US$0.00 ~ US$1.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberZJC – 50KV
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    ZJC - 50 kv voltage puncture tester adopt computer control, through the man-machine dialogue mode, complete the dielectric breakdown of power frequency voltage, power frequency withstand voltage test. Breakdown voltage tester is mainly used in the solid insulation materials such as insulating varnish, resin and rubber, impregnated fiber products, mica and its products, plastic, thin film composite products, such as ceramic and glass dielectric breakdown strength under power frequency voltage or dc voltage and time of withstand voltage test; Breakdown voltage tester adopt computer control, to test the various data in the process of rapid and accurate collection, processing, and can access, display and print.
    Features:
    1. The experiment process dynamically draw curve, the curve of the test can be a variety of color overlay.
    2. Can be edited on the test data to modify, flexible to apply;
    3. The test conditions and test results data can be automatically stored;
    4. Test report format flexible, suitable for the different needs of different users;
    5. For a set of tests for the selected curve data validity;
    6. The test results data can be introduced into EXECL, WORD document editing;
    7. Over current protection device have enough sensitivity, to ensure that the sample breakdown within 0.1 S to cut off the power supply;
    8. The durability of the instrument: the instrument can be continuous use, do not need to protect the instrument and stop on a regular basis.
    Technical parameters:
    The input voltage: AC 220 v
    AC output voltage: 0 ~ 50 kv; DC: 0 ~ 30 kv
    Output power: 50 KVA
    Measuring range: 0 kv ~ 50 kv
    Voltage measurement error: 2% or less
    Pressure rise rate: 0.1 kV/s ~ 10 kV/s
    Withstand voltage test voltage: 10 to 50 kv continuously adjustable
    Pressure time: 0 ~ 4 h () in the absence of any current conduction
    Power: 220 v + / - 10% of the single-phase ac voltage and the frequency of 50 hz + 1%
    Equipment size: length x width x height of 700 mm * 800 mm * 1650 mm
    Equipment weight: 100 kg
    Running environment temperature: 15 ~ 30 ℃, relative humidity: 30% ~ 85% can stable operation.
