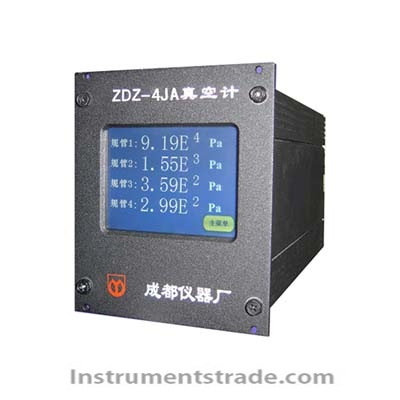

ZDZ-4JA Resistance Vacuum Gauge Introduction: The ZDZ-4JA type vacuum gauge (resistance Pirani vacuum gauge) is the latest touchscreen vacuum gauge developed by my Factory. Equipped with a Cortex3 core processor, it features fast response, high reliability, a wide measurement range, and excellent repeatability. This vacuum gauge boasts a compact design, high stability, and cost-effectiveness, making it an ideal instrument for rough (low) vacuum measurement. Technical parameters: Display method: Touchscreen display, simple operation. Measurement accuracy: better than ±20% Measurement range: 1×10⁵ Pa to 1×10⁻¹ Pa Regulation accessories: 4 CY-1Z resistance gauges (Pirani gauges), with standard KF16 interfaces. The standard cable length is 5 meters. Case dimensions (mm): 110(H) × 103(W) × 230(D) Power supply: AC 220V±10%, 50Hz Weight: approximately 3 kg
Introduction: The ZDZ-4JA type vacuum gauge (resistance Pirani vacuum gauge) is the latest touchscreen vacuum gauge developed by my Factory. Equipped with a Cortex3 core processor, it features fast response, high reliability, a wide measurement range, and excellent repeatability. This vacuum gauge boasts a compact design, high stability, and cost-effectiveness, making it an ideal instrument for rough (low) vacuum measurement.
