Brief introduction:

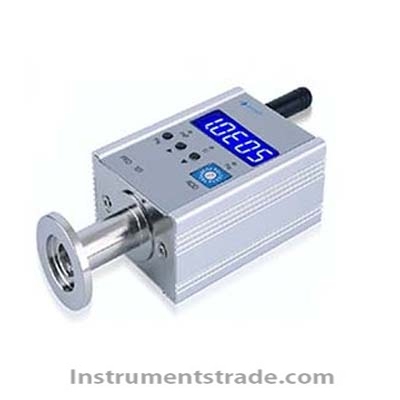

PRD101 is a vacuum sensor, display, control, and wired RS485, wireless data ransmission function in one of the high integration pirani vacuum gauge Features:
High brightness blue LED segment code real-time display vacuum
The intelligent function key real-time calibration, control point setting, unit selection
The panel comes with 16 bit dial code address setting, convenient networking communication
- Pa, mBar, Torr unit display can be freely selected
Dual path optocoupler isolation control collector switch
Set analog data transmission, RS485 communication and wireless data transmission in one
The metal shell, excellent electromagnetic interference prevention Main technical indicators:
Vacuum contact material :SS316L stainless steel, tungsten, varnished glass
Measurement range :1.0 x 10-1 ~ 1.0 x 10+5Pa(air,N2, other gases to be corrected)
Measurement accuracy :1.0 x 10-1 ~ 1.0 x 10+4Pa: + 10%
1.0 * 10 + 4 ~ 1.0 * 10 + 5 pa: plus or minus 30%
Repeatability: 1.0 x 10-1 ~ 1.0 x 10+3Pa:2%
1.0 * 10 + 3 ~ 1.0 * 10 + 5 pa: 5%
Data collection: resolution 1%, response time <100ms
Control unit: dual path optocoupler isolation control collector switch
Temperature characteristic: working temperature 0 ° C ~ + 45 ° C, storage temperature - 40% C ~ + 75 ° C
Probe baking temperature: 180 ° C MaX () electronic control unit (ECU) for removal
Maximum power consumption: 2.0w Max
Power supply: +24VDC(+ + 20%/ 0.5a) is recommended
Electrical signal interface :Dsub9, 9-pin (analog voltage,RS485, control port, power input)
Vacuum cavity: interface :DN16 ISO-KF (other optional), maximum pressure 1.5x10 +5Pa
Weight: 155g (including DN16 ISO-KF flange)
