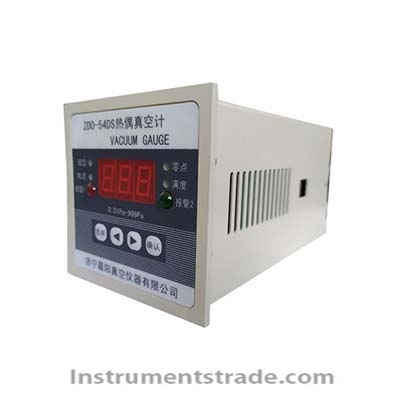

ZDO-54DS Thermocouple Vacuum Gauge (Refrigeration Vacuum Meter)

Product Introduction
The ZDO-54DS Thermocouple Vacuum Gauge, also known as a refrigeration vacuum meter, is a digital instrument designed for reliable low vacuum measurement and control. The system consists of a ZJ-54D thermocouple vacuum sensor and an electronic control unit.
Using a digital circuit design, the ZDO-54DS vacuum gauge provides accurate readings, a wide measurement range, fast response, and strong resistance to contamination. The thermocouple sensor is designed to maintain stable performance and reliable vacuum indication without oxidation in atmospheric conditions.
With a measuring range of 0.01–999 Pa, alarm indication, and an RS232 communication interface, this digital thermocouple vacuum meter is suitable for refrigeration servicing, electronic manufacturing, metallurgical processing, and other vacuum measurement applications.

Performance Features
• Wide vacuum measurement range from 0.01 to 999 Pa
• Digital circuit design for stable and reliable readings
• Fast response to vacuum changes
• Low measurement error
• Strong anti-contamination capability
• Reliable vacuum measurement display
• Suitable for low vacuum measurement and control
• Red and green indicator light alarm output
• Integrated RS232 communication interface
• Compact panel-mounted design
• Lightweight and convenient for installation
• Especially suitable for refrigeration vacuum applications

Working Principle
The ZDO-54DS Thermocouple Vacuum Gauge uses a thermocouple vacuum sensor to detect changes in gas pressure.
Under different vacuum conditions, the heat transfer characteristics of the gas surrounding the heated sensing element change. These changes affect the temperature of the sensing element and generate corresponding thermoelectric signals. The electronic control unit processes these signals through a digital measurement circuit and converts them into vacuum pressure values displayed in Pa.
This working principle enables the refrigeration vacuum meter to provide continuous monitoring of low vacuum conditions for vacuum measurement and process control.

Technical Parameters

Parameter	Specification
Model	ZDO-54DS
Product Type	Thermocouple Vacuum Gauge / Refrigeration Vacuum Meter
Measuring Range	0.01–999 Pa
Display Error	Less than 20% within 1–999 Pa
Overall Dimensions	90 × 90 × 180 mm
Installation Size	92 × 92 mm
Instrument Weight	Approximately 1 kg
Alarm Output	Red/Green indicator light switching
Communication Interface	RS232
Measurement Application	Low vacuum measurement and control

Application Scenarios
The ZDO-54DS digital vacuum gauge is suitable for:
• Refrigeration and air-conditioning vacuum evacuation
• Refrigeration equipment maintenance
• Vacuum pump monitoring
• Electronic component manufacturing
• Vacuum processing systems
• Metallurgical vacuum applications
• Laboratory vacuum equipment
• Industrial low vacuum measurement
• Vacuum process monitoring and control

ZDO-54DS vs. Conventional Analog Vacuum Gauges

Feature	ZDO-54DS Thermocouple Vacuum Gauge	Conventional Analog Vacuum Gauge
Display	Digital vacuum reading	Mechanical or analog indication
Measuring Range	0.01–999 Pa	Usually application-dependent
Response Speed	Fast	Generally slower
Measurement Stability	High digital processing stability	May be affected by mechanical components
Anti-Contamination Capability	Strong	Varies by design
Alarm Indication	Red/green indicator output	Often unavailable
Communication	RS232 interface	Usually unavailable
Application	Refrigeration and industrial vacuum measurement	General pressure/vacuum indication

The ZDO-54DS thermocouple vacuum gauge provides more convenient digital monitoring and communication capability than conventional analog vacuum gauges, making it particularly suitable for refrigeration systems and automated vacuum measurement applications.

Frequently Asked Questions (FAQ)
1. What is the measuring range of the ZDO-54DS Thermocouple Vacuum Gauge?
The ZDO-54DS measures vacuum pressure from 0.01 to 999 Pa.
2. Is the ZDO-54DS suitable for refrigeration applications?
Yes. It is specifically suitable for refrigeration vacuum measurement, including vacuum evacuation and vacuum monitoring of refrigeration and air-conditioning systems.
3. What type of vacuum does this instrument measure?
The ZDO-54DS is designed primarily for low vacuum measurement and control.
4. Does the ZDO-54DS have an alarm function?
Yes. The instrument provides alarm indication through red and green indicator light switching.
5. Does the vacuum gauge support computer communication?
Yes. The ZDO-54DS is equipped with an RS232 communication interface.
6. What sensor is used with the ZDO-54DS?
The system uses a ZJ-54D thermocouple vacuum gauge sensor together with an electronic control unit.
7. What industries can use this thermocouple vacuum meter?
It can be used in refrigeration, electronics, metallurgy, laboratories, vacuum equipment, and other industrial vacuum applications.
8. What are the installation dimensions?
The required installation size is approximately 92 × 92 mm.
9. What is the advantage of the digital design?
The digital circuit design helps provide stable readings, fast response, convenient operation, and reliable vacuum measurement display.

Conclusion
The ZDO-54DS Thermocouple Vacuum Gauge is a compact and reliable refrigeration vacuum meter for low vacuum measurement and control. With its 0.01–999 Pa measuring range, digital measurement design, fast response, anti-contamination capability, alarm indication, and RS232 interface, it provides an efficient solution for refrigeration, electronics, metallurgy, laboratory, and industrial vacuum applications.
