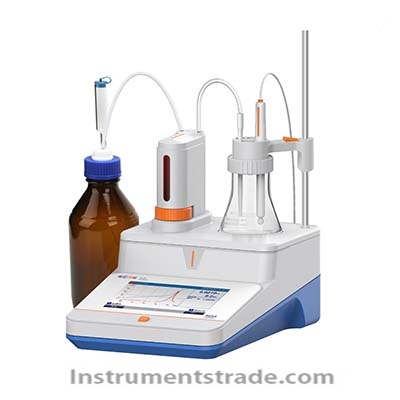

ZDJ-5D Automatic Titrator

Position: Home > > Analytical instruments > Electrochemical Equipment > Potentiometric titration > ZDJ-5D Automatic Titrator

ZDJ-5D Automatic Titrator

Product ID：FDdd054

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZDJ-5D

Brand NameSHYIDIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZDJ-5D Automatic Titrator
Product Definition
The ZDJ-5D Automatic Titrator is a high-precision intelligent laboratory titration system designed for automatic chemical analysis, supporting potentiometric titration, conductometric titration, amperometric (dead-stop) titration, photometric titration and temperature titration. It integrates pH/pX measurement, ion concentration analysis, conductivity measurement, automatic sample processing and GMP-compliant data management for advanced analytical laboratories.

Product Introduction
The ZDJ-5D automatic titrator adopts an advanced intelligent operating system with a 7-inch color touchscreen and navigation-based operation interface. It provides accurate, efficient and automated titration solutions for chemical, pharmaceutical, food, environmental and scientific research applications.
The instrument supports multiple titration methods including acid-base titration, non-aqueous titration, redox titration, precipitation titration and complexometric titration. With flexible modular expansion capability, users can configure different detection modules according to analytical requirements.
Equipped with intelligent endpoint recognition, automatic calculation, method management and traceable data management, the ZDJ-5D improves laboratory efficiency while meeting GLP and GMP requirements.

Key Features
• 7-inch Color Touchscreen Operation
Navigation-style interface simplifies operation and improves user experience.
• Multi-Mode Titration Capability
Supports potentiometric, conductivity, dead-stop, photometric and temperature titration.
• High Precision Titration Control
Valve-integrated burette design provides excellent accuracy and repeatability.
• Intelligent Automatic Recognition System
Automatically identifies sensors, titration methods and standard solutions.
• Advanced Data Management
Supports GLP/GMP compliant data storage, traceability and audit records.
• Flexible Burette Configuration
Supports 5mL, 10mL and 20mL interchangeable burettes.
• Multiple Measurement Functions
Supports pH, pX, ion concentration and conductivity measurement.
• Automatic Sample Processing Capability
Compatible with automatic sample changers for batch testing.
• Four-Level User Permission Management
Provides secure operation control for different laboratory users.
• Network and Cloud Data Support
Supports USB, RS-232, RJ45 network and Wi-Fi communication.

Working Principle
The ZDJ-5D automatic titrator determines the equivalence point during chemical reactions by continuously monitoring changes in electrical signals generated by sensors.
During titration, the instrument automatically adds titrant through a precision burette while measuring the response signal from electrodes or optical sensors. The built-in intelligent algorithm analyzes the titration curve and automatically determines the endpoint using different calculation methods including differential analysis, preset endpoint detection and constant parameter control.
Depending on the selected module:
• Potentiometric titration detects potential changes caused by ion concentration variations.
• Conductometric titration determines endpoints through conductivity changes.
• Dead-stop titration detects current changes under controlled polarization voltage.
• Photometric titration identifies endpoint changes through optical signals.
• Temperature titration determines reaction completion through temperature variation.

Main Functions
Potentiometric Titration Module
Supports:
• Dynamic titration
• Equal-volume titration
• Preset endpoint titration
• Constant pH titration
• Constant-speed titration
• Blank titration
• Manual titration
• First and second derivative endpoint calculation
Applicable for:
• Acid-base titration
• Redox titration
• Precipitation titration
• Complexometric titration
• Non-aqueous titration

pH / pX / Ion Concentration Measurement
Supports:
• pH measurement
• pX measurement
• Ion concentration analysis
• Direct concentration method
• Known increment method
• GRAN method
Built-in ion modes:
Ag⁺, Na⁺, K⁺, NH₄⁺, Cl⁻, F⁻, NO₃⁻, BF₄⁻, CN⁻, Cu²⁺, Pb²⁺, Ca²⁺, I⁻, Br⁻
Supports:
• Custom ion mode creation
• Multiple concentration units:
μg/L, mg/L, g/L, mol/L, mmol/L, ppm, ppb

Conductivity Measurement Function
Features:
• Automatic/manual temperature compensation
• Automatic recognition of conductivity standard solutions
• 1–3 point electrode calibration
• Linear compensation
• Pure water compensation
• No compensation mode
Reference temperature:
20℃ or 25℃ selectable

Data Management & GMP Compliance
The ZDJ-5D automatic titrator provides complete laboratory data management functions.
Features:
• GLP compliant operation
• Storage of up to 1000 sets of titration results
• Storage of pH, pX and ion concentration data
• Data review, deletion and analysis
• CSV and PDF data export
• USB method import/export
• GMP operation log recording
• Electronic signature support (optional GMP software)
• RS-232 printer connection
• PC communication software support

Technical Specifications

Parameter	Specification
Model	ZDJ-5D
Display	7-inch color touchscreen
Titration Modes	Potentiometric, Conductometric, Dead-stop, Photometric, Temperature
Burette Capacity	5mL / 10mL / 20mL
Burette Resolution	1/480000
Titration Accuracy (5mL burette)	±0.010mL
Titration Accuracy (10mL burette)	±0.020mL
Titration Accuracy (20mL burette)	±0.030mL
Potentiometric Repeatability	≤0.2%
pH Range	-5.000～20.000 pH
pH Resolution	0.001 pH
mV Range	-2000.00～2000.00mV
pX Range	-2.000～20.000 pX
Ion Concentration Range	1.000e-9～9.999e+9
Temperature Range	-10～135℃
Temperature Resolution	0.1℃
Conductivity Range	0.000μS/cm～2000mS/cm
Conductivity Accuracy	±0.5%FS
Dead-stop Current Range	0～199.9μA
Photometric Measurement Range	0.00～1500.00mV
Supported Optical Wavelengths	470nm / 520nm / 570nm / 620nm / 650nm
Temperature Titration Range	0.0000～60.0000℃
Temperature Resolution	0.0001℃
Communication Interface	USB, RS-232, RJ45, Wi-Fi
Power Supply	AC 80-250V, 47-63Hz
Dimensions	240×360×400mm
Weight	Approx. 4kg

Applications
Pharmaceutical Industry
• Active ingredient analysis
• Raw material quality control
• Drug formulation testing
• Content determination
Chemical Industry
• Acid-base analysis
• Redox reaction analysis
• Chemical concentration measurement
• Non-aqueous titration
Environmental Testing
• Water quality analysis
• Chemical oxygen demand related analysis
• Ion concentration detection
Food & Beverage Industry
• Acidity determination
• Salt content analysis
• Quality control testing
Research Laboratories
• Chemical reaction studies
• Analytical method development
• Teaching laboratories

ZDJ-5D vs Traditional Manual Titration

Comparison	ZDJ-5D Automatic Titrator	Manual Titration
Operation	Automatic	Manual
Endpoint Detection	Intelligent automatic recognition	Visual judgment
Accuracy	High precision	Operator dependent
Repeatability	Excellent	Variable
Data Management	Digital traceability	Manual recording
GMP Compliance	Supported	Limited
Batch Testing	Supported with autosampler	Low efficiency
Multiple Methods	5 titration modes	Single method

FAQ
1. What is the ZDJ-5D automatic titrator used for?
The ZDJ-5D automatic titrator is used for precise chemical analysis including acid-base titration, redox titration, precipitation titration, complexometric titration, pH measurement, ion concentration analysis and conductivity testing.

2. What titration methods does the ZDJ-5D support?
It supports:
• Potentiometric titration
• Conductometric titration
• Dead-stop titration
• Photometric titration
• Temperature titration

3. Can the ZDJ-5D be used for non-aqueous titration?
Yes. The titration system uses corrosion-resistant materials compatible with acidic, alkaline, perchloric acid and organic reagents, making it suitable for non-aqueous titration applications.

4. Does the instrument support automatic sample testing?
Yes. The ZDJ-5D can connect with an automatic sample changer to perform automatic measurement and batch analysis.

5. Is the ZDJ-5D suitable for GMP laboratories?
Yes. The instrument supports GMP data management, operation logs, traceability records and optional electronic signature functions.

6. What industries commonly purchase automatic titrators?
Typical users include:
• Pharmaceutical manufacturers
• Chemical companies
• Environmental laboratories
• Food testing laboratories
• Universities and research institutes

7. Why choose an automatic titrator instead of manual titration?
An automatic titrator provides higher accuracy, better repeatability, reduced operator error, faster analysis and complete digital data management, making it ideal for modern quality-control laboratories.
