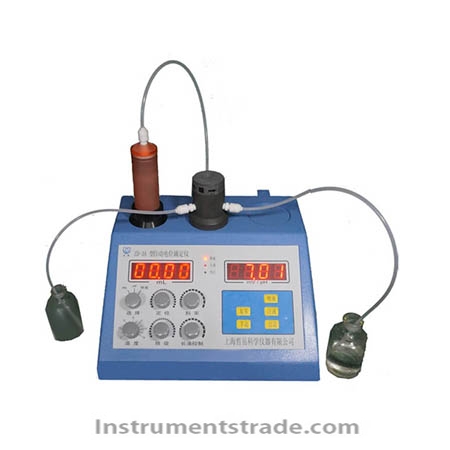

ZD-3A Automatic Potentiometric Titrator

Position: Home > > Analytical instruments > Electrochemical Equipment > Potentiometric titration > ZD-3A Automatic Potentiometric Titrator

ZD-3A Automatic Potentiometric Titrator

Product ID：FDdd001

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberZD-3A

Brand NameSHBENANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ZD-3A Automatic Potentiometric Titrator

Product Introduction
The ZD-3A Automatic Potentiometric Titrator is a versatile laboratory instrument designed for potentiometric titration and chemical analysis. It is suitable for applications in environmental monitoring, metallurgy, pharmaceuticals, educational institutions, and research laboratories.
Combining potentiometric titration with high-precision pH measurement, the instrument supports acid-base titration and various other analytical procedures, including water analysis. Its LED digital display provides clear, direct readings of titration values. Users can select manual operation or preset automatic titration, simplifying routine laboratory workflows.

Performance Features
• Dual-function measurement: Integrates potentiometric titration and pH measurement.
• High-precision pH readings: Provides a pH measurement resolution of 0.01 pH.
• Automatic titration control: Supports preset automatic titration for improved operational convenience.
• Manual operation: Offers flexibility for different laboratory procedures.
• LED digital display: Displays measurement and titration values clearly.
• Wide application range: Suitable for environmental, pharmaceutical, metallurgical, educational, and research laboratories.

Working Principle
The ZD-3A Automatic Potentiometric Titrator measures the potential difference between electrodes as a titrant is added to a sample. Changes in electrode potential help identify the titration endpoint, supporting quantitative chemical analysis. In pH measurement mode, the instrument measures the sample's pH using an appropriate electrode. Manual or preset automatic operation allows users to select a suitable titration procedure.

Technical Parameters

Parameter	Specification
Model	ZD-3A
Potential Measurement Range	0 to ±1999 mV
pH Measurement Range	0–14.00 pH
Potential Measurement Accuracy	0.1% F.S.
pH Measurement Resolution	0.01 pH
Control Accuracy	±0.03 pH; ±3 mV
Input Impedance	Not specified
Operating Temperature	5–40°C
Relative Humidity	Below 85%
Power Supply	AC 220 V ±10%, 50 Hz
Power Consumption	20 W
Net Weight	Approximately 6 kg

Note: The original specification lists a potential range of 0 to +1999 mV. The bipolar range shown above should be confirmed with the manufacturer before publication.

Application Scenarios
•   Environmental Laboratories: Acid-base titration and water quality analysis.
• Pharmaceutical Laboratories: Chemical testing and routine analytical procedures.
•   Metallurgical Laboratories: Potentiometric analysis of chemical components.
•   Universities and Research Institutes: Laboratory teaching, experiments, and analytical research.
• Chemical Laboratories: Quantitative analysis using potentiometric titration methods.

ZD-3A vs. Conventional Manual Titration

Comparison Item	ZD-3A Automatic Potentiometric Titrator	Conventional Manual Titration
Endpoint Detection	Based on electrode potential measurement	Often relies on visual indicators
Operation	Manual or preset automatic operation	Primarily manual
Result Display	Direct LED digital display	Often requires manual reading
pH Measurement	Integrated pH measurement function	Usually requires separate equipment
Operating Convenience	Simplifies routine titration procedures	More operator-dependent
Typical Applications	Laboratory chemical analysis and water testing	General-purpose chemical analysis

Frequently Asked Questions
1. What is the ZD-3A Automatic Potentiometric Titrator used for?
It is designed for potentiometric titration, pH measurement, acid-base analysis, and other laboratory chemical testing procedures.
2. Which industries can use the ZD-3A titrator?
It is suitable for environmental monitoring, pharmaceuticals, metallurgy, chemical laboratories, universities, and research institutions.
3. What is the pH measurement range?
The instrument has a pH measurement range of 0–14.00 pH.
4. What is the potential measurement range?
The supplied specifications state 0 to +1999 mV. Confirm whether the instrument supports negative potential measurements before ordering.
5. Does the ZD-3A support automatic titration?
Yes. It supports manual operation and preset automatic titration, providing flexibility for different analytical requirements.
6. How are measurement results displayed?
Titration values are displayed digitally through the instrument's LED display for convenient reading.
7. What are the operating environment requirements?
The recommended operating temperature is 5–40°C, with relative humidity below 85%.
8. What power supply does the instrument require?
It operates on AC 220 V ±10% at 50 Hz, with a rated power consumption of 20 W.
