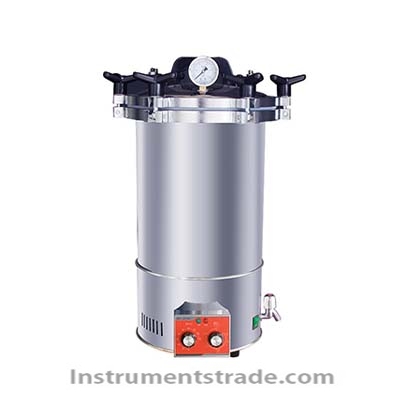

YXQ-LS-18AI Portable Pressure Steam Sterilizer

Position: Home > > Lab general equipment > Cleaning / disinfection equipment > High pressure sterilization > YXQ-LS-18AI Portable Pressure Steam Sterilizer

YXQ-LS-18AI Portable Pressure Steam Sterilizer

Product ID：SYQXXDmj028

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberYXQ-LS-18AI

Brand NameSHBOXUN

Payment TermsTT，PAYPAL，Alibaba.com Pay

YXQ-LS-18AI Portable Pressure Steam Sterilizer
Product Introduction
The YXQ-LS-18AI Portable Pressure Steam Sterilizer is a compact and efficient steam autoclave designed for rapid sterilization using saturated pressure steam. It is suitable for laboratories, pharmaceutical facilities, agricultural institutions, research centers, and healthcare environments.
With a durable SUS304 stainless steel chamber, microcomputer temperature control, automatic timing, and multiple safety protection systems, the sterilizer provides reliable sterilization for dressings, glassware, culture media, instruments, and laboratory supplies.

Features
• Microcomputer-controlled temperature regulation with automatic sterilization timing.
• Rotary knob control design for convenient temperature and time adjustment.
• Automatic countdown begins once the preset sterilization temperature is reached.
• Butterfly-nut lid locking mechanism for secure operation.
• High-density thermal insulation cover helps prevent accidental burns.
• SUS304 stainless steel body with precision manufacturing.
• 2 mm thick chamber wall with triple anti-corrosion treatment.
• Fast electric heating system reaches operating temperature in less than 30 minutes.
• Built-in safety valve automatically releases excessive pressure.
• Audible buzzer alarm and automatic heater shut-off after sterilization.
• Manual exhaust valve for controlled pressure release and emergency protection.
• Low-water-level float protection automatically stops heating and activates alarm.
• Self-expanding heat-resistant silicone sealing ring ensures excellent airtight performance.

Working Principle
The YXQ-LS-18AI sterilizes materials using saturated steam under pressure. As water is heated electrically, high-temperature steam is generated inside the sealed chamber. The elevated pressure increases the boiling point of water, allowing steam temperatures to reach sterilization levels capable of destroying bacteria, fungi, spores, and other microorganisms.
Once the preset temperature is achieved, the controller automatically starts the sterilization timer. After the cycle is completed, heating stops automatically, an alarm sounds, and the unit cools naturally before pressure is released.

Technical Specifications

Parameter	Specification
Model	YXQ-LS-18AI
Sterilization Chamber Volume	18 L
External Dimensions (Ø × H)	Ø350 × 570 mm
Chamber Dimensions (Ø × H)	Ø295 × 320 mm
Inner Basket Dimensions (Ø × H × Qty)	Ø280 × 230 × 1 mm
Power Supply	220 V
Power Consumption	2 kW
Maximum Working Temperature	126°C
Design Temperature	128°C
Temperature Resolution	0.1°C
Maximum Working Pressure	0.142 MPa
Design Pressure	0.165 MPa
Pressure Gauge Range	0–0.25 MPa (Class 2.5)
Sterilization Time	0–90 min
Heating Method	Electric Heating
Chamber Material	SUS304 Stainless Steel

Typical Applications
• Pharmaceutical laboratories
• Scientific research institutes
• Agricultural laboratories
• Medical clinics and healthcare facilities
• Universities and educational laboratories
• Culture media preparation
• Glassware sterilization
• Surgical dressing sterilization
• Biological sample processing
• Laboratory instrument sterilization

Comparison with Conventional Portable Sterilizers

Feature	YXQ-LS-18AI	Conventional Portable Sterilizer
Temperature Control	Microcomputer Automatic Control	Basic Mechanical Control
Timing Function	Automatic After Target Temperature	Manual Timing
Heating Speed	<30 Minutes	Usually Longer
Safety Valve	Standard	Optional
Low Water Protection	Included	Often Not Available
Automatic Alarm	Included	Limited
Chamber Material	SUS304 Stainless Steel	Ordinary Stainless Steel
Pressure Release	Automatic + Manual	Manual Only
Sealing Performance	Self-Expanding Silicone Seal	Standard Rubber Seal

FAQ
1. What materials can be sterilized in the YXQ-LS-18AI?
It is suitable for dressings, laboratory glassware, culture media, surgical instruments, and other heat-resistant laboratory materials.
2. How does the automatic timing function work?
The sterilizer automatically starts counting sterilization time once the preset temperature is reached, ensuring accurate sterilization cycles.
3. What safety protections are included?
The unit features a safety valve, low-water-level protection, manual pressure release valve, automatic alarm system, and automatic heater shutdown.
4. How long does it take to reach sterilization temperature?
The electric heating system typically reaches the preset temperature within 30 minutes.
5. What is the chamber material?
The sterilizer is manufactured from high-quality SUS304 stainless steel with enhanced corrosion resistance.
6. Is it suitable for laboratory culture media sterilization?
Yes. The YXQ-LS-18AI is widely used for sterilizing culture media, solutions, and laboratory consumables.
7. Does the sterilizer require manual pressure release?
It can operate with automatic pressure protection, while the manual exhaust valve allows controlled pressure release when needed.
8. Why choose the YXQ-LS-18AI portable autoclave?
Its combination of automatic temperature control, fast heating, comprehensive safety protection, durable SUS304 construction, and compact 18L capacity makes it an ideal solution for routine laboratory sterilization tasks.
