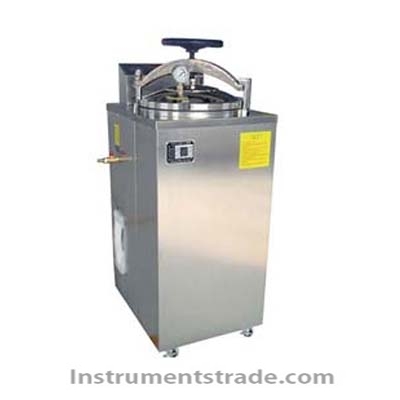

YXQ-LB-30SII Vertical Pressure Steam Sterilizer
Product Introduction
The YXQ-LB-30SII Vertical Autoclave Sterilizer is a high-performance laboratory steam sterilization equipment that uses high-pressure saturated steam to achieve rapid and reliable sterilization.
Designed for laboratories, pharmaceutical companies, research institutes, and agricultural organizations, this 29L vertical pressure steam sterilizer is suitable for sterilizing medical dressings, glassware, culture media, solutions, and other heat-resistant materials.
The YXQ-LB-30SII adopts a SUS304 stainless steel sterilization chamber, intelligent microcomputer control, automatic cold air discharge, and multiple safety protection systems to ensure stable operation, high sterilization efficiency, and safe laboratory use.

Performance Features
High-Efficiency Steam Sterilization
•  Uses saturated high-pressure steam for rapid heat penetration.
•  Provides reliable sterilization performance for laboratory materials.
•  Suitable for liquid, glassware, and culture medium sterilization.
Durable Stainless Steel Structure
•  Sterilization chamber made of SUS304 stainless steel.
• High-strength upper and lower flange structure improves safety and durability.
•  Corrosion-resistant and easy to clean.
Intelligent Microcomputer Control
•  Built-in intelligent control system.
•  Automatic management of sterilization temperature and time.
•  Simple operation with clear working status display.
Advanced Safety Protection
•  Automatic pressure release under overpressure conditions.
•  Over-temperature protection.
•  Water shortage automatic control.
•  Pressure safety interlock prevents unsafe operation.
Convenient Operation Design
•  Handwheel-type door locking structure.
•  Self-expanding sealing ring provides reliable sealing.
•  Automatic cold air discharge improves sterilization effectiveness.
•  Buzzer reminder after sterilization completion.

Working Principle
The YXQ-LB-30SII vertical autoclave sterilizer works based on high-pressure saturated steam sterilization technology.
The sterilization process includes:
1. Water is heated inside the chamber to generate saturated steam.
2. Increasing pressure raises the steam temperature above normal boiling temperature.
3. High-temperature steam penetrates materials and transfers heat efficiently.
4. Proteins and enzymes of microorganisms are destroyed through thermal action.
5. After the preset sterilization cycle is completed, the system automatically releases pressure and provides an end-of-cycle alarm.
The combination of high temperature, pressure, and steam penetration ensures effective sterilization of laboratory materials.

Technical Parameters

Parameter	Specification
Model	YXQ-LB-30SII
Product Type	Vertical Pressure Steam Sterilizer
Sterilization Capacity	29L
Sterilization Method	High-pressure saturated steam sterilization
Chamber Material	SUS304 Stainless Steel
Control System	Microcomputer intelligent control
Rated Power	2.3 kW
Power Supply	220V
Temperature Resolution	1℃
Maximum Working Temperature	135℃
Design Temperature	139℃
Maximum Working Pressure	0.22 MPa
Design Pressure	0.25 MPa
Pressure Gauge Range	0–0.4 MPa (Class 1.6)
Timer Range	4–120 minutes
Chamber Size	Φ300 × 485 mm
Basket Size	Φ280 × 340 mm
Basket Quantity	1 piece
Installation Height	400 mm
External Dimensions	445 × 445 × 900 mm
Net Weight	54 kg
Gross Weight	64 kg

Application Scenarios
Pharmaceutical Industry
Used for sterilization of:
•  Pharmaceutical laboratory materials
•  Sterile solutions
•  Culture media
•  Production-related tools
Scientific Research Laboratories
Suitable for:
•  Biological experiments
•  Microbiology research
•  Laboratory glassware sterilization
Agricultural Research
Applied in:
•  Plant tissue culture laboratories
•  Agricultural microorganism research
•  Experimental material sterilization
Medical and Health Institutions
Used for:
•  Dressings sterilization
•  Heat-resistant medical instruments
•  Laboratory supplies

YXQ-LB-30SII vs Traditional Sterilization Equipment

Feature	YXQ-LB-30SII Vertical Autoclave	Traditional Sterilization Equipment
Sterilization Method	High-pressure saturated steam	Various heating methods
Sterilization Efficiency	Fast heat penetration and reliable sterilization	Generally slower
Chamber Material	SUS304 stainless steel	May use ordinary materials
Control Mode	Intelligent microcomputer control	Manual or basic control
Safety Protection	Multiple automatic protection systems	Limited protection functions
Operation	Automatic timing and alarm	More manual operation
Application	Laboratory, pharmaceutical, research use	General sterilization applications

FAQ
Q1: What materials can be sterilized by the YXQ-LB-30SII autoclave?
The sterilizer is suitable for heat-resistant materials such as glassware, laboratory solutions, culture media, and medical dressings.
Q2: What is the sterilization principle of this vertical autoclave?
It uses high-pressure saturated steam to increase temperature and destroy microorganisms through thermal sterilization.
Q3: What is the chamber capacity of the YXQ-LB-30SII?
The sterilization chamber has a capacity of 29 liters.
Q4: Does the autoclave have safety protection functions?
Yes. It includes overpressure protection, over-temperature protection, water shortage control, and pressure safety interlock.
Q5: What temperature can the YXQ-LB-30SII reach?
The maximum working temperature is 135℃, with a design temperature of 139℃.
Q6: How is the sterilization time controlled?
The built-in timer can be set from 4 to 120 minutes according to different sterilization requirements.
Q7: What material is used for the sterilization chamber?
The chamber is manufactured from SUS304 stainless steel for corrosion resistance and long service life.
Q8: Does the device provide an alarm after sterilization?
Yes. A buzzer reminder automatically indicates sterilization completion.

Product Summary
The YXQ-LB-30SII Vertical Autoclave Sterilizer is a reliable 29L laboratory steam sterilization solution designed for pharmaceutical, research, agricultural, and laboratory applications. With SUS304 stainless steel construction, intelligent control, high-pressure steam sterilization technology, and comprehensive safety protection, it provides efficient and dependable sterilization performance for modern laboratories.
