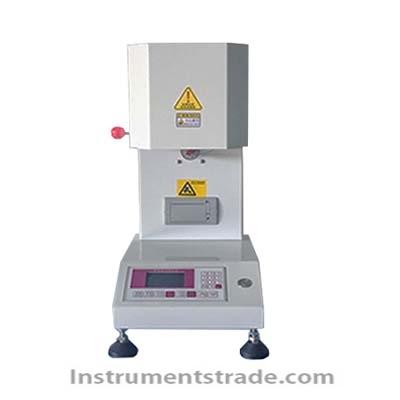

YTN-MFV4 Plastic Melt Flow Rate Meter Introduction: The melt index meter is specially designed for fast and accurate measurement, with features such as sturdy structure, easy operation, stable and reliable performance; High precision PID constant temperature technology is used, with high temperature control accuracy; Nitriding treatment of key components results in high strength and hardness, with minimal thermal expansion deformation. The plastic melt flow rate measuring instrument is used to determine the melt mass rate flow rate MFR value of various plastics and resin polymers in a viscous flow state. It is suitable for engineering plastics such as polycarbonate, nylon, fluoroplastics, and polyarylsulfone with high melting temperatures, as well as for testing plastics such as ABS resin, polystyrene (PS), polycarbonate (PC) resin, and polyoxymethylene (POM) with low melting temperatures. Suitable for industries such as composite materials, petrochemicals, plastics, rubber, metrology and quality inspection, technical supervision departments, universities, research and experimental institutes, commercial inspection and arbitration, electrical and electrical appliances, etc. characteristic: 1. Equipped with a printer to automatically print out the test results. 2. After filling, it can quickly return to a constant temperature state. 3. The ET-320 density meter can automatically test density (optional). 4. Equipped with an automatic cutting device, the cutting time can be set freely. 5. Simple and easy to understand measurement steps. 6. PID temperature control, fast heating speed, high constant temperature accuracy. 7. Multi language application function, suitable for use in different countries. ? After the measurement is completed, the measurement data can be automatically printed out. 9. Stable and reliable, with a long lifespan. 10. Equipped with an automatic cutting device, the cutting time can be set freely. 11. Better temperature stability and uniformity. 12. Equipped with a motion sensor with a high resolution of 0.001mm. Technical parameters: Model: YTN-MFV4 Automatic cutting device: Set the interval time (adjustable from 2 to 2000 seconds), automatically complete the cutting, or manually cut the material. Temperature control range: normal temperature to 400 ℃ (or 450 ℃, subject to design). Temperature control resolution: 0.1 ℃. Constant temperature accuracy: 0.2 ℃. Temperature control 4-hour drift: not exceeding ± 0.5 ℃. Discharge port diameter: Φ 2.095 ± 0.005 millimeters, discharge port length: 8.000 ± 0.025 millimeters. Diameter of loading cylinder: Φ 9.550 ± 0.007 mm, length of loading cylinder: 152 ± 0.100 mm. Piston rod head diameter: Φ 9.475 ± 0.007 millimeters, piston rod head length: 6.350 ± 0.100 millimeters. Power supply voltage: AC220V/50Hz or AC110/60Hz; Choose different power supply voltages according to the country of use. Product size/net weight/gross weight: 48KG/63kg. Weight loading method: manually load the weight. Displacement resolution: 0.001mm. Measurement result: Mass MFR, Volume MVR. Measurement range: 0.1-100g/10min. Standard test load: A total of 8 levels of complete set of weights: Level 1: 0.325kg, Level 2: 1.200kg, Level 3: 2.160kg, Level 4: 3.800kg, Level 5: 5.000kg, Level 6: 10.000kg, Level 7: 12.500kg, Level 8: 21.600 kg. Recovery time of material barrel temperature after feeding: ≤ 4 minutes. Timing range: 0-6000s. Clock resolution: 0.1-1s. Countdown time setting: can be freely set. Accuracy of weight load: ≤± 0.5%. Weight load range: 325-21600g discontinuous, combined load can meet standard requirements.
Introduction: The melt index meter is specially designed for fast and accurate measurement, with features such as sturdy structure, easy operation, stable and reliable performance; High precision PID constant temperature technology is used, with high temperature control accuracy; Nitriding treatment of key components results in high strength and hardness, with minimal thermal expansion deformation. The plastic melt flow rate measuring instrument is used to determine the melt mass rate flow rate MFR value of various plastics and resin polymers in a viscous flow state. It is suitable for engineering plastics such as polycarbonate, nylon, fluoroplastics, and polyarylsulfone with high melting temperatures, as well as for testing plastics such as ABS resin, polystyrene (PS), polycarbonate (PC) resin, and polyoxymethylene (POM) with low melting temperatures. Suitable for industries such as composite materials, petrochemicals, plastics, rubber, metrology and quality inspection, technical supervision departments, universities, research and experimental institutes, commercial inspection and arbitration, electrical and electrical appliances, etc.
