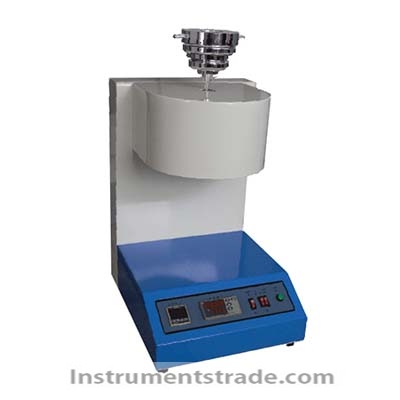

XNR-400A Melt Flow Index Tester

Product Introduction
The XNR-400A Melt Flow Index Tester is designed to measure the melt mass-flow rate (MFR) of thermoplastic materials under specified temperature and load conditions. It features intelligent temperature control, a short temperature stabilization cycle, and minimal temperature overshoot to support reliable and repeatable testing.
With both manual and timed cutting modes, the XNR-400A allows users to set cutting intervals and cutting durations according to their testing requirements. Its wide temperature range and straightforward operation make it suitable for plastic manufacturers, quality inspection laboratories, research institutions, and universities.

Performance Features
•   Wide measurement range: MFR measurement from 0.1 to 400.00 g/10 min.
•   Precise temperature control: Temperature control accuracy of ±0.2°C.
•   Intelligent temperature regulation: AI-based instrument control helps reduce temperature overshoot and improve stability.
• Flexible cutting modes: Supports both manual and time-controlled sample cutting.
•    Adjustable timing: Configurable timing ranges for different test procedures.
•    Standardized test components: Precision barrel and tungsten carbide die.
•   Compact laboratory design: Suitable for routine plastic material testing and teaching applications.

Working Principle
The melt flow index tester heats a thermoplastic sample inside a barrel to a specified temperature. Under the prescribed load, the molten material flows through a standard die. The extrudate is collected by manual or timed cutting, and its mass is measured over a defined period to determine the melt mass-flow rate, expressed in g/10 min.
The XNR-400A uses an intelligent temperature-control system to maintain the test temperature and a timing control system to coordinate cutting intervals. Test conditions, including temperature and load, must be selected according to the applicable material test method.

Technical Parameters

Parameter	Specification
Model	XNR-400A
Instrument type	Melt Flow Index Tester
Measurement range	0.1–400.00 g/10 min (MFR)
Temperature range	Room temperature to 450°C
Temperature control accuracy	±0.2°C
Timing accuracy	1 s or 0.01 s
Timing range	1–9999 s or 0.01–99.99 s
Load	Full-load configuration; specific test weights not provided
Cutting modes	Manual and time-controlled
Barrel inner diameter	9.550 ± 0.025 mm
Barrel length	160 mm
Die material	Tungsten carbide
Die length	8.000 ± 0.025 mm
Die inner diameter	2.095 ± 0.005 mm
Rated power	0.45 kW
Power supply	AC 220 V, 50 Hz
Dimensions (L × W × H)	400 × 500 × 600 mm
Net weight	60 kg

Application Scenarios
• Plastic manufacturing: Incoming material inspection and production quality control.
• Polymer laboratories: Evaluation of thermoplastic melt flow behavior.
• Quality inspection agencies: Routine testing of plastic raw materials and finished products.
• Research and development: Comparison of polymer grades and material formulations.
• Universities and technical colleges: Demonstrations and practical training in polymer testing.

Comparison: XNR-400A vs. Basic Melt Flow Index Testers

Feature	XNR-400A	Basic Melt Flow Index Tester
Temperature range	Room temperature to 450°C	Depends on model
Temperature control accuracy	±0.2°C	Depends on model
Cutting method	Manual and time-controlled	Depends on model
Timing configuration	Two selectable timing ranges	Depends on model
Barrel and die	Specified precision dimensions; tungsten carbide die	Depends on model
Typical applications	Quality control, laboratory testing, research, and teaching	Routine melt flow testing

Actual performance comparisons depend on the specifications of the alternative instrument.

Frequently Asked Questions
1. What does the XNR-400A measure?
It measures the melt mass-flow rate (MFR) of thermoplastic materials under specified temperature and load conditions, with results expressed in g/10 min.
2. What is the MFR measurement range?
The specified range is 0.1–400.00 g/10 min.
3. What is the maximum test temperature?
The temperature range extends from room temperature to 450°C, with a stated temperature-control accuracy of ±0.2°C.
4. Does the XNR-400A support automatic cutting?
It supports manual and time-controlled cutting. The cutting interval and cutting duration can be set according to the test requirements.
5. Which materials can be tested?
It is intended for thermoplastic materials suitable for melt flow rate testing. The appropriate temperature and load depend on the polymer and the applicable test standard.
6. What are the dimensions of the barrel and die?
The barrel has an inner diameter of 9.550 ± 0.025 mm and a length of 160 mm. The tungsten carbide die has an inner diameter of 2.095 ± 0.005 mm and a length of 8.000 ± 0.025 mm.
7. What are the power requirements?
The instrument has a rated power of 0.45 kW and operates on AC 220 V, 50 Hz.
8. What should be considered when selecting a melt flow index tester?
Consider the required temperature range, test load, die dimensions, timing accuracy, cutting method, measurement range, and compatibility with the relevant material testing standard.
