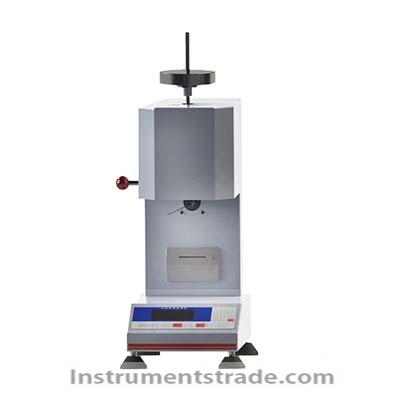

YTN-MF series melt index analyzer Introduction:
The YTN-MF series melt index meter, melt index meter, and melt flow rate tester are specially designed for fast and accurate measurement. They have the characteristics of sturdy structure, easy operation, stable and reliable performance; High precision PID constant temperature technology is used, with high temperature control accuracy; Nitriding treatment of key components results in high strength and hardness, with minimal thermal expansion deformation. Application industry: Plastic industry; Rubber industry; Measurement and quality inspection; Higher education institutions; Research laboratory; Inspection, arbitration, and technical supervision departments; Petrochemical industry; Electrical appliances; compound material; Other industries. characteristic:
1. Simple and easy to understand measurement steps
2. Stable and reliable, with a long lifespan
3. PID temperature control, fast heating speed, high constant temperature accuracy
4. Better temperature stability and uniformity
5. After filling, it can quickly restore a constant temperature state
6. Multi language application function, suitable for use in different countries
7. Equipped with an automatic cutting device, the cutting time can be set freely
8. Equipped with a printer to automatically print out the test results
9. RS232 interface, can directly connect to a computer to output data
10. After the measurement is completed, the measurement data can be automatically printed out
11. The ET-120H densitometer can automatically read the average (optional) Technical parameters:
Discharge port diameter: Φ 2.095 ± 0.005 mm, discharge port length: 8.000 ± 0.025 mm
(Optional: Φ 1.050 ± 0.005 mm, discharge port length: 4.000 ± 0.025 mm)
Diameter of loading cylinder: Φ 9.550 ± 0.007 mm, length of loading cylinder: 152 ± 0.100 mm
Piston rod head diameter: 9.475 ± 0.007 millimeters, piston rod head length: 6.350 ± 0.100 millimeters
Standard test load: A total of 8 levels of complete set of weights
Temperature range: Conventional room temperature -400 ℃ (500 ℃ optional)
Constant temperature accuracy: ± 0.5 ℃
Display resolution: 0.1 ℃
Cutting method: optional manual or automatic cutting
Temperature recovery time: less than 4 minutes
Printing: Micro printers automatically print output
Power supply voltage: AC220V/50HZ or AC110/60HZ; Select different power supply voltages according to the country of use
Optional test fluorine material
