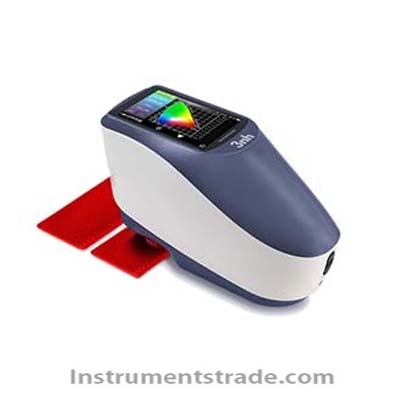

YS4560 Grating Spectrophotometer
Product Introduction
The YS4560 Grating Spectrophotometer is a high-precision spectral color measurement instrument designed for accurate color analysis, spectral measurement, and quality control in various industries.
The instrument adopts a 45/0 geometric optical structure (45-degree ring illumination and 0-degree reception) compliant with CIE No.15 standards, combined with advanced concave grating spectrometry technology to accurately measure sample reflectance and colorimetric data.
Equipped with a high-performance 256-element dual-array CMOS detector, UV illumination source, and multiple measurement apertures, the YS4560 spectrophotometer provides reliable color measurement solutions for:
• Plastic and electronic products
• Paint and ink industries
• Textile and garment dyeing
• Printing
• Ceramic materials
• Traffic signs and reflective films
The YS4560 supports professional color spaces, multiple illuminants, observer angles, and color difference formulas. It is an ideal grating spectrophotometer for laboratory color analysis, production quality control, and precise color communication.

Key Features and Benefits
1. High Precision 45/0 Optical Structure
• Complies with CIE No.15 international color measurement standards.
• 45-degree ring illumination provides uniform lighting.
• 0-degree receiving geometry ensures accurate color evaluation.
2. Advanced Concave Grating Spectrometry
• High-resolution spectral analysis.
• Accurate reflectance measurement from 400–700nm.
• Suitable for precise color matching and quality control.
3. Dual Measurement Aperture Design
Supports different sample measurement requirements:
• MAV: Φ8mm / Φ10mm
• SAV: Φ4mm / Φ5mm
Suitable for large and small samples.
4. UV Fluorescence Measurement Capability
• Independent UV light source.
• Supports fluorescent sample testing.
• Suitable for materials containing fluorescent whitening agents.
5. Intelligent Color Management System
• Built-in GB 2893 and GB/T 18833 standard colors.
• Supports customized polygon and rectangular tolerances.
• One-click evaluation of traffic signs, road markings, and reflective films.
6. Powerful Data Storage and Communication
• Stores more than 30,000 measurement records.
• USB and Bluetooth dual communication.
• Supports PC software expansion.
7. Portable and Ergonomic Design
• Compact structure.
• 3.5-inch TFT true-color capacitive touchscreen.
• Built-in rechargeable lithium battery.
• Up to 5,000 measurements per charge.

Working Principle
The YS4560 grating spectrophotometer works based on the principle of spectral reflectance measurement.
The LED light source illuminates the sample surface using a 45/0 optical geometry. The reflected light from the sample enters the optical system and is separated by the concave diffraction grating.
The 256-element CMOS detector captures spectral signals across the wavelength range of 400–700nm. The instrument processes these signals to calculate color values such as:
• CIE LAB
• XYZ
• Yxy
• LCh
• CIE LUV
• HunterLAB
Advanced algorithms calculate color differences and quality parameters, enabling accurate color evaluation, matching, and production inspection.

Technical Specifications

Parameter	Specification
Product Model	YS4560
Product Type	Grating Spectrophotometer
Optical Geometry	45/0 (45° ring illumination, 0° reception)
Standards Compliance	CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Spectral Technology	Concave grating spectrometry
Detector	256-element dual-array CMOS sensor
Measurement Wavelength Range	400–700nm
Wavelength Interval	10nm
Half Bandwidth	10nm
Reflectance Range	0–200%
Integrating Sphere Diameter	Φ48mm
Light Source	Combined LED + UV light source
Measurement Aperture	MAV: Φ8mm/Φ10mm; SAV: Φ4mm/Φ5mm
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, βxy
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔE CMC(2:1), ΔE CMC(1:1), ΔE00, ΔE(Hunter)
Observer Angles	2° / 10°
Standard Illuminants	D65, A, C, D50, D55, D75, F1–F12
Measurement Time	Approx. 1.5s
Measurement Mode	Single measurement, average measurement (2–99 times)
Repeatability	ΔE*ab ≤0.03 (after calibration)
Inter-instrument Agreement	ΔE*ab ≤0.15
Display	3.5-inch TFT color touchscreen
Communication Interface	USB, Bluetooth 4.0 (compatible with 2.1)
Data Storage	1000 standard samples, 30000 test samples
Battery	Lithium battery, approx. 5000 measurements / 8 hours
Light Source Lifetime	Over 3 million measurements / 5 years
Dimensions	184 × 77 × 105mm
Weight	Approx. 600g
Operating Temperature	0–40℃
Operating Humidity	0–85%RH (non-condensing)
Storage Temperature	-20–50℃

Applications
1. Plastic and Electronics Industry
Used for:
• Plastic color consistency testing
• Electronic housing color inspection
• Product appearance quality control
2. Paint and Ink Industry
Applications include:
• Paint color matching
• Ink quality inspection
• Printing color control
3. Textile and Garment Industry
Suitable for:
• Fabric color measurement
• Dyeing quality evaluation
• Batch color difference control
4. Printing Industry
Used for:
• Printing color verification
• Color reproduction management
• Production consistency inspection
5. Ceramic Industry
Provides:
• Ceramic glaze color measurement
• Surface color analysis
6. Traffic Safety Industry
Specially suitable for:
• Traffic signs
• Road markings
• Reflective films
Measurement functions include:
• Brightness factor
• Chromaticity coordinates
• Standard color range evaluation

YS4560 vs Traditional Color Measurement Instruments

Comparison Item	YS4560 Grating Spectrophotometer	Traditional Colorimeter
Measurement Principle	Spectral analysis with concave grating	Three-color sensor measurement
Optical Structure	CIE 45/0 geometry	Limited geometry options
Color Accuracy	High precision spectral measurement	Lower accuracy
UV Measurement	Supported	Usually unavailable
Spectral Data	Full 400–700nm spectrum	Limited color values
Color Matching	Professional color transfer capability	Basic comparison only
Standards Support	CIE, GB, ISO, ASTM standards	Limited standards
Data Storage	30000+ records	Smaller storage
Application Range	Industrial + laboratory analysis	General color inspection

Frequently Asked Questions (FAQ)
Q1: What is the YS4560 spectrophotometer used for?
The YS4560 is used for precise color measurement, spectral analysis, and quality control in plastics, paints, textiles, printing, ceramics, electronics, and traffic materials.
Q2: What is the advantage of a 45/0 optical structure?
The 45/0 geometry follows international color measurement standards and provides accurate evaluation of surface color under controlled illumination conditions.
Q3: Can the YS4560 measure fluorescent samples?
Yes. The instrument includes an independent UV light source for fluorescent material measurement.
Q4: How many measurement records can the YS4560 store?
The instrument can store more than 30,000 test records and 1,000 standard samples.
Q5: Does the YS4560 support traffic sign color testing?
Yes. The instrument includes GB 2893 and GB/T 18833 standard colors and supports brightness factor and chromaticity measurement for traffic signs and reflective films.

Product Advantages Summary
The YS4560 Grating Spectrophotometer is a professional high precision color measurement instrument combining CIE 45/0 optical technology, concave grating spectrometry, UV fluorescence measurement, and intelligent color management functions.
With accurate spectral analysis, wide industry compatibility, large data storage, and advanced quality control capabilities, the YS4560 provides an ideal solution for industrial color measurement, laboratory analysis, product quality inspection, and precise color communication.
