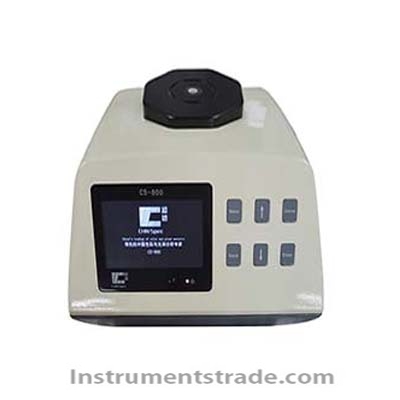

CS-800 desktop spectrophotometer for color measurement

Product ID:GGCcsyi003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCS-800
    Brand NameYIMA
    Payment TermsT/T, paypal
    Profile:
    CS-800 is a desktop spectrophotometer Chinese domestic first developed, to make up for the domestic corresponding market vacancy, and accumulated over time, the precision and the performance of the instrument is improved, now in the market occupies a huge share.
    CS-800 desktop spectrophotometer is high performance spectrophotometer test caliber upwards. The instrument adopts the geometric conditions of the International Commission on illumination lighting and observation D/8 CIE recommendations, integrated full band LED composite light source, double beam optical system, ETC real-time calibration technology, light reflection rate standard deviation is within 0.08 the maximum value, chroma value of delta E*ab 0.03, Taiwan difference is less than 0.2, all the necessary color equation, meet the coating, printing, textile, plastics, food, medicine, measurement of car demand in various fields.
    Characteristic
    1 load measurement
    Solid samples (steel, cloth) can be placed directly on the measurement port, particles (tablets, masterbatch), powder (pigment, coffee), paste objects (tomato sauce) can be placed in a Petri dish, and then placed in the test port on the measurement.
    2.D8 structure
    The instrument with the international D/8 (integrating sphere diffuse lighting, 8 degree viewing angle) SCI/SCE compatible condition of lighting and observation.
    3 simultaneous measurement of SCI and SCE
    4.ETC real time calibration technique (Every Test Calibration)
    5 color management software
    It can be used for the quality control and color data management of the enterprise, and can be used to manage the color of the user data, to compare the color difference, to generate the test report, to provide a variety of color space measurement data, and to customize the customer's color management
    Technical index:
    Type: desktop spectrometer
    Power supply voltage: can be recharged, continuous measurement of 20000, 7.4
    Viewing angle: 2 degrees /10 degrees
    Model: CS-800
    Reflectance measurement range: 0-200%
    Data storage: 20000 test data
    Integral ball size: 40mm diameter, Avian-D diffuse surface coating
    Measuring wavelength range: 400-700nm
    Lighting source: CLEDs (full band balanced Led light source)


  • Profile:
    CS-800 is a desktop spectrophotometer Chinese domestic first developed, to make up for the domestic corresponding market vacancy, and accumulated over time, the precision and the performance of the instrument is improved, now in the market occupies a huge share.
    CS-800 desktop spectrophotometer is high performance spectrophotometer test caliber upwards. The instrument adopts the geometric conditions of the International Commission on illumination lighting and observation D/8 CIE recommendations, integrated full band LED composite light source, double beam optical system, ETC real-time calibration technology, light reflection rate standard deviation is within 0.08 the maximum value, chroma value of delta E*ab 0.03, Taiwan difference is less than 0.2, all the necessary color equation, meet the coating, printing, textile, plastics, food, medicine, measurement of car demand in various fields.
