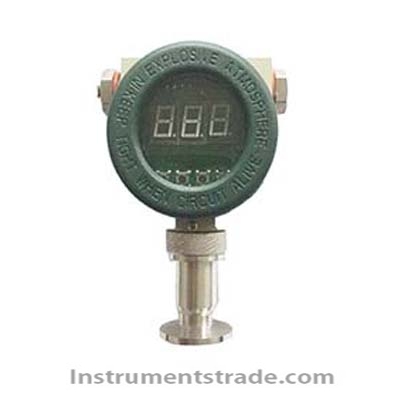

YK-1008 (KF25) Intelligent Thermocouple Vacuum Gauge

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Vacuum gauge > YK-1008 (KF25) Intelligent Thermocouple Vacuum Gauge

YK-1008 (KF25) Intelligent Thermocouple Vacuum Gauge

Product ID：CLQTzkj020

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberYK-1008 (KF25)

Brand NameJNCHENYANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

YK-1008 (KF25) Intelligent Thermocouple Vacuum Gauge
Product Introduction
The YK-1008 KF25 Intelligent Thermocouple Vacuum Gauge is a high-precision digital low vacuum measurement instrument composed of a specially designed ZJ-54D thermocouple vacuum sensor and an advanced electronic control unit. It is designed for accurate measurement and control of low vacuum levels in industrial and laboratory environments.
With digital circuit technology, the YK-1008 thermocouple vacuum gauge features high measurement accuracy, wide measuring range, fast response, low error, and excellent anti-contamination capability. The sensor maintains reliable operation without oxidation exposure in atmospheric conditions, ensuring stable vacuum readings.
The KF25 vacuum gauge is widely used for vacuum monitoring and control in electronics manufacturing, refrigeration systems, vacuum equipment, metallurgy, scientific research, and industrial processing applications.

Performance Features
• Wide vacuum measurement range: Covers 0.01-999 Pa low vacuum measurement requirements.
•   Digital intelligent design: Provides accurate and stable vacuum readings with reduced measurement errors.
•  Fast response performance: Quickly reflects vacuum changes for real-time monitoring.
•  Strong anti-contamination capability: Suitable for industrial environments with demanding conditions.
•  Reliable thermocouple sensor technology: Uses ZJ-54D thermocouple vacuum gauge technology for stable performance.
•  KF25 standard installation interface: Easy integration into existing vacuum systems.
•  Compact and lightweight design: Only 1 kg for convenient installation and operation.
•  Multi-industry compatibility: Suitable for electronics, refrigeration, metallurgy, and vacuum control applications.

Working Principle
The YK-1008 intelligent thermocouple vacuum gauge operates based on the relationship between gas pressure and heat conduction under vacuum conditions.
The ZJ-54D thermocouple vacuum sensor contains a heated filament and thermocouple element. When the filament is heated, the heat loss caused by surrounding gas molecules changes according to the vacuum pressure level. The thermocouple detects temperature variations caused by heat transfer changes and converts them into electrical signals.
The electronic control unit processes these signals through digital circuits and converts them into accurate vacuum pressure readings displayed in Pa. This thermocouple measurement principle enables fast response, reliable operation, and stable low vacuum measurement.

Technical Parameters

Parameter	Specification
Model	YK-1008 (KF25)
Product Type	Intelligent Thermocouple Vacuum Gauge
Vacuum Sensor	ZJ-54D Thermocouple Vacuum Gauge
Measurement Range	0.01-999 Pa
Display Error	≤20% (1-999 Pa)
Vacuum Measurement Type	Low vacuum measurement
Installation Interface	KF25
Weight	1 kg
Display Method	Digital display
Application	Vacuum measurement and control

Application Scenarios
Electronics Manufacturing
Used for vacuum monitoring in semiconductor production, electronic components processing, and vacuum chambers requiring stable low-pressure measurement.
Refrigeration Industry
Suitable for refrigeration system vacuum detection, evacuation processes, and maintenance applications.
Metallurgical Processing
Provides vacuum monitoring solutions for metallurgy processes requiring controlled vacuum environments.
Vacuum Equipment Control
Integrated into vacuum systems, pumps, chambers, and industrial vacuum control equipment.
Laboratory Research
Used in scientific research equipment requiring accurate low vacuum measurement.

YK-1008 KF25 Vacuum Gauge vs Conventional Vacuum Gauges

Comparison Item	YK-1008 Intelligent Thermocouple Vacuum Gauge	Conventional Vacuum Gauge
Measurement Range	0.01-999 Pa	Usually limited range
Measurement Technology	Digital thermocouple technology	Mechanical or analog measurement
Display Accuracy	High digital reading accuracy	Lower readability
Response Speed	Fast response	Slower response
Anti-Contamination Ability	Strong	Usually weaker
Installation Interface	KF25 standard	Various interfaces
Application Fields	Electronics, refrigeration, metallurgy, vacuum systems	General vacuum monitoring

Frequently Asked Questions (FAQ)
1. What is the measurement range of the YK-1008 KF25 vacuum gauge?
The YK-1008 thermocouple vacuum gauge measures vacuum levels from 0.01 Pa to 999 Pa, making it suitable for low vacuum applications.
2. What type of sensor does the YK-1008 use?
The instrument uses a specially designed ZJ-54D thermocouple vacuum sensor combined with a digital electronic control unit.
3. Is the YK-1008 suitable for industrial vacuum systems?
Yes. The YK-1008 is designed for industrial vacuum measurement and control applications, including electronics, refrigeration, and metallurgy industries.
4. What is the accuracy of the YK-1008 vacuum gauge?
The display value error is less than 20% within the range of 1-999 Pa.
5. What does KF25 mean in the model name?
KF25 refers to the standard vacuum flange installation size, allowing convenient connection with KF25 vacuum components.
6. Can the vacuum gauge work in contaminated environments?
Yes. The thermocouple sensor design provides strong anti-contamination performance and improves measurement reliability.
7. What are the main advantages of a thermocouple vacuum gauge?
Thermocouple vacuum gauges offer wide low-pressure measurement capability, fast response, compact structure, and reliable digital monitoring.
8. What industries commonly use the YK-1008?
The YK-1008 is commonly used in electronics, refrigeration, metallurgy, vacuum equipment manufacturing, and laboratory research fields.

Conclusion
The YK-1008 KF25 Intelligent Thermocouple Vacuum Gauge is a reliable digital vacuum measurement solution for low vacuum applications. Combining ZJ-54D thermocouple sensing technology, digital control circuits, KF25 installation compatibility, and accurate Pa-level measurement, it provides stable vacuum monitoring performance for industrial and laboratory environments.
