YDS-10 Storage-Type Liquid Nitrogen Tank

Position: Home > > Life science instrument and equipment > Biological engineering equipment > Liquid nitrogen tank > YDS-10 Storage-Type Liquid Nitrogen Tank

YDS-10 Storage-Type Liquid Nitrogen Tank

Product ID：SHGCydg003

Price: Please inquire PDF Format

Supply Ability:500SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberYDS-10

Brand NameLSDONGYA

Payment TermsTT，PAYPAL，Alibaba.com Pay

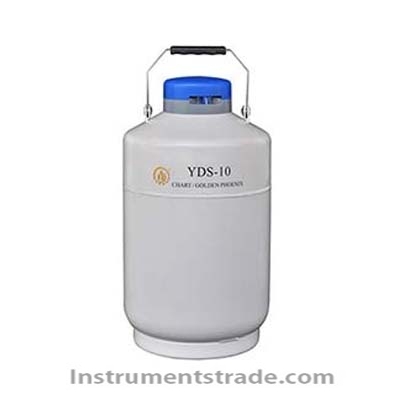

YDS-10 Storage-Type Liquid Nitrogen Tank
Product Overview
The YDS-10 Storage-Type Liquid Nitrogen Tank is a compact cryogenic container designed for the storage and manual transportation of biological samples in liquid nitrogen. With a 10 L capacity, lightweight aluminum construction and low static liquid nitrogen evaporation rate, it is particularly suitable for applications where samples need to be frequently moved or transported manually, including laboratories and users in mountainous or remote areas.
The tank uses high-vacuum multilayer insulation to reduce heat transfer and maintain liquid nitrogen storage conditions efficiently. Six sample canisters are provided for organized storage of biological samples.

Key Features
• High-strength aluminum alloy construction for reduced weight and easy handling
• High-vacuum multilayer thermal insulation for efficient liquid nitrogen storage
• Flexible hinged carrying handle for convenient transportation
• Optional lockable lid to help protect stored samples
• Protective outer sleeve helps prevent impact and handling damage
• Low static liquid nitrogen evaporation rate for economical operation
• Vacuum quality guaranteed for at least five years

Working Principle
The YDS-10 uses a vacuum-insulated double-wall structure with multiple insulation layers to minimize heat transfer from the external environment to the liquid nitrogen inside the vessel.
Liquid nitrogen is maintained in the insulated storage space, while biological samples are placed in the internal sample canisters or straws. The low heat-transfer design reduces the rate of liquid nitrogen evaporation, allowing samples to remain stored for extended periods with relatively low nitrogen consumption.

Technical Specifications

Parameter	Specification
Model	YDS-10
Type	Storage-type liquid nitrogen tank
Geometric Capacity	10 L
Empty Weight	6.2 kg
Neck Opening Diameter	50 mm
External Diameter	303 mm
Height	530 mm
Static Liquid Nitrogen Evaporation Rate	0.12 L/day
Static Liquid Nitrogen Holding Time	86 days
Sample Canister Outer Diameter	38 mm
Sample Canister Height	120 mm
Number of Sample Canisters	6
Straw Capacity, 0.5 mL	792
Straw Capacity, 0.25 mL	1,788
Insulation	High-vacuum multilayer insulation
Main Material	High-strength aluminum alloy
Vacuum Warranty	≥5 years

Applications
• Biological sample storage
• Cryopreservation of cells and biological materials
• Storage of semen and reproductive samples
• Laboratory sample preservation
• Agricultural and animal breeding applications
• Medical and biotechnology laboratories
• Manual transportation of cryogenic biological samples
• Sample storage in remote or mountainous areas

Applicable Standards
The YDS-10 is designed for liquid nitrogen-based cryogenic storage of biological samples. Specific regulatory and laboratory requirements should be confirmed according to the sample type and intended application.
Safety Note: Liquid nitrogen is an extremely cold cryogenic liquid. Appropriate cryogenic gloves, face protection, ventilation and safe handling procedures should be used during filling, transportation and sample retrieval.

Comparison

Feature	YDS-10 Storage-Type LN2 Tank	Large LN2 Storage Tank	LN2 Transport Container
Capacity	10 L	Typically larger	Model-dependent
Portability	High	Low	High
Sample Storage	Yes	Yes	Usually focused on transport
Manual Handling	Suitable	Limited	Suitable
Static Evaporation	0.12 L/day	Generally lower per unit volume	Model-dependent
Sample Canisters	6	Configuration-dependent	Configuration-dependent
Typical Use	Small-scale biological sample storage and transport	Long-term centralized storage	Cryogenic sample transportation
Space Requirement	Compact	Large	Compact to medium

FAQ
Q1: What is the capacity of the YDS-10 liquid nitrogen tank?
The YDS-10 has a geometric capacity of 10 liters.
Q2: How long can liquid nitrogen be stored in the YDS-10?
Under static storage conditions, the specified liquid nitrogen holding time is approximately 86 days, with a static evaporation rate of 0.12 L/day.
Q3: How many sample canisters does the YDS-10 have?
The standard configuration includes six sample canisters, each with an outer diameter of 38 mm and a height of 120 mm.
Q4: How many cryogenic straws can be stored?
The specified capacity is 792 straws for 0.5 mL straws or 1,788 straws for 0.25 mL straws.
Q5: Is the YDS-10 suitable for transportation?
Yes. Its compact size, 6.2 kg empty weight and hinged carrying handle make it suitable for manual movement and transportation of biological samples.
Q6: What material is used for the tank?
The tank is manufactured from high-strength aluminum alloy and uses a high-vacuum multilayer insulation structure.
Q7: Is a locking lid available?
Yes. A lockable lid can be selected as an option to help protect stored samples.
Q8: How long is the vacuum quality guarantee?
The manufacturer provides a vacuum quality guarantee of no less than five years.
