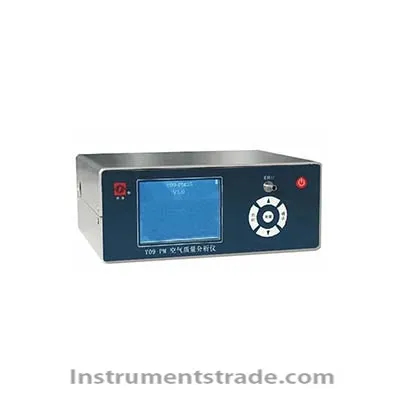

Y09 - PM PM2.5 PM10 air quality analyzer

Product ID:PM2.5002

US$0.00 ~ US$1.00 PDF Format
Supply Ability:20
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Brand NameYM
    Payment TermsT/T western union paypal
    Model NumberY09 - PM
    Brief introduction:
    Y09 - PM air quality analyzer is used for monitoring of the concentration of suspended particles in the air on the principle of light scattering, detection speed, small portable, convenient for carrying. Using three-channel (PM 1.0, 2.5 PM and 10.0 PM), measure and display the results at the same time, this method is completely in line with relevant laws and regulations and standards of the country. Due to the automatic measurement method, can effectively avoid the error brought by the operation, do not need regular calibration and zero, effectively improve the work efficiency. This instrument adopts the semiconductor laser light source, LCD display, its small volume, light weight, high detection accuracy, operation simple and clear function, computer control, can be stored, printed sampling results, use very convenient.
    Technical parameters
    Detection principle Light scattering principle
    Light source Semiconductor laser
    Concentration detection range 0.1 ~ 999.9 μg/m3
    Particle size channel PM 1.0  PM 2.5  PM 10
    Sample flow 2.83 L/min
    Detection period 0 ~ 999999 s
    Purification time ≤10 min
    Measurement position 0 ~ 999
    Printing Portable thermal printer
    Data storage 1000 groups
    size 200×160×80 (mm)
    Weight 1.5kg
    Supply voltage DC16.8V Built in lithium ion battery
    Maximum power consumption 10 W
    Typical working hours 5 hrs
  • Brief introduction:
    Y09 - PM air quality analyzer is used for monitoring of the concentration of suspended particles in the air on the principle of light scattering, detection speed, small portable, convenient for carrying. Using three-channel (PM 1.0, 2.5 PM and 10.0 PM), measure and display the results at the same time, this method is completely in line with relevant laws and regulations and standards of the country. Due to the automatic measurement method, can effectively avoid the error brought by the operation, do not need regular calibration and zero, effectively improve the work efficiency. This instrument adopts the semiconductor laser light source, LCD display, its small volume, light weight, high detection accuracy, operation simple and clear function, computer control, can be stored, printed sampling results, use very convenient.
