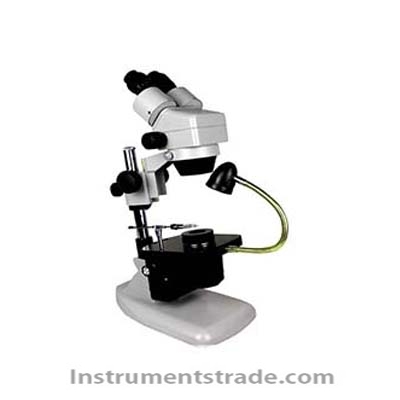

XZB-02 Gemological Microscope

Position: Home > > Optical instruments and equipment > Biological and medical microscope > Stereo microscope > XZB-02 Gemological Microscope

XZB-02 Gemological Microscope

Product ID：GSXliti006

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberXZB-02

Brand NameWZAOKA

Payment TermsTT，PAYPAL，Alibaba.com Pay

XZB-02 Gemological Microscope

Product Introduction
The XZB-02 Gemological Microscope is designed for detailed examination of gemstones, jewelry, and other small specimens. It provides clear, high-resolution stereoscopic images with continuous magnification from 7X to 45X, enabling users to inspect surface details, inclusions, and internal crystal characteristics.
Its trinocular viewing head provides a dedicated interface for connecting compatible cameras, supporting image capture and video recording. The adjustable focusing mechanism, flexible gemstone clamp, and configurable illumination help improve observation convenience. Optional polarizing accessories and auxiliary objectives further expand its suitability for gemological examination, jewelry inspection, and gemstone research.

Performance Features
• High-Resolution Stereo Imaging: Produces clear three-dimensional images for detailed gemstone observation.
• Continuous Zoom Magnification: Provides a 7X–45X magnification range for flexible inspection.
• Trinocular Viewing Head: Supports compatible photography and video accessories for documentation.
• Long Working Distance: A standard working distance of 95 mm provides space for positioning and manipulating specimens.
• Adjustable Focusing: A 125 mm focusing travel accommodates gemstones and samples of different sizes.
• Flexible Gemstone Clamps: Includes wire and flat-jaw clamp options for secure specimen positioning.
• Improved Viewing Angles: Clamp mounting holes on both sides of the stage allow adjustment of the gemstone's height and angle.
• Adjustable Illumination: The lamp connection design facilitates adjustment of the lighting angle.
• Optional Polarizer: Helps reveal optical and internal structural characteristics of gemstones.
• Adjustable Eyepiece Spacing: Supports interpupillary adjustment from 55 to 75 mm for comfortable viewing.
• Expandable Magnification: Optional auxiliary objectives and eyepieces provide additional magnification configurations.

Working Principle
The XZB-02 uses stereoscopic optical imaging to magnify gemstones and other small specimens. Light reflected or transmitted from the specimen passes through the microscope's optical system, producing a magnified image with depth perception for detailed examination.
Its continuous zoom system allows users to adjust magnification from 7X to 45X without changing the main optical configuration. Adjustable illumination helps reveal surface features, while an optional polarizer can improve observation of certain optical properties and internal crystal structures. The trinocular port allows a compatible camera to capture images or videos for analysis and documentation.

Technical Parameters

Parameter	Specification
Model	XZB-02
Instrument Type	Gemological Stereoscopic Microscope
Continuous Magnification	7X–45X
Working Distance	95 mm
Eyepiece	Wide-field 10X / 23 mm
Adjustable Interpupillary Distance	55–75 mm
Focusing Travel	125 mm
Viewing Head	Trinocular
Camera Connection	Dedicated trinocular interface for compatible accessories
Gemstone Clamp Options	Wire clamp and flat-jaw clamp
Optional Polarizer	Available
Auxiliary Objective 0.75X	Working distance: 105 mm
Auxiliary Objective 1.5X	Working distance: 47 mm
Auxiliary Objective 2X	Working distance: 33 mm

Note: Confirm the included accessories, illumination configuration, camera compatibility, and exact model designation with the supplier before ordering.

Application Scenarios
• Gemstone Identification: Examination of inclusions, surface features, and internal structures.
• Diamond Inspection: Magnified observation of diamond surfaces, inclusions, and cutting details.
• Jewelry Quality Control: Inspection of gemstone settings, fine details, and jewelry workmanship.
• Gemological Laboratories: Routine optical examination and documentation of gemstones.
• Gemstone Cutting and Polishing: Inspection of surface finish, fractures, and processing quality.
• Jewelry Manufacturing: Quality checks during production, assembly, and finishing.
• Teaching and Research: Visual examination of gemstone characteristics in educational and research environments.
• Image Documentation: Photography and video recording through compatible trinocular camera accessories.

XZB-02 vs. Conventional Jewelry Inspection Microscopes

Feature	XZB-02 Gemological Microscope	Conventional Inspection Microscope
Optical Imaging	Stereoscopic, three-dimensional viewing	Depends on model
Magnification	Continuous 7X–45X zoom	Depends on model
Working Distance	95 mm	Depends on model
Viewing Head	Trinocular	Depends on configuration
Camera Compatibility	Dedicated camera port	Depends on model
Focusing Travel	125 mm	Depends on design
Interpupillary Adjustment	55–75 mm	Depends on model
Gemstone Positioning	Wire and flat-jaw clamp options	Depends on accessories
Polarizing Accessory	Available	Model-dependent
Auxiliary Objectives	0.75X, 1.5X, and 2X options	Depends on model
Typical Applications	Gemstone examination and jewelry inspection	General inspection tasks

Frequently Asked Questions
1. What is the XZB-02 gemological microscope used for?
It is designed for examining gemstones, diamonds, jewelry, and other small specimens requiring detailed stereoscopic observation.
2. What is the magnification range of the XZB-02?
The standard continuous zoom magnification range is 7X to 45X.
3. Does the XZB-02 support photography and video recording?
Yes. Its trinocular viewing head provides a dedicated interface for compatible cameras and imaging accessories.
4. What is the working distance of the microscope?
The standard working distance is 95 mm, providing room to position and manipulate gemstones during inspection.
5. Can the XZB-02 inspect gemstones of different sizes?
Yes. Its 125 mm focusing travel and adjustable gemstone clamp positioning help accommodate specimens of different sizes and viewing angles.
6. What gemstone clamps are available?
Wire gemstone clamps and flat-jaw clamps are available to suit different specimen shapes and holding requirements.
7. What is the purpose of the optional polarizer?
A polarizer can help reveal optical characteristics and certain internal crystal features, depending on the gemstone and observation conditions.
8. Can the microscope's magnification be expanded?
Yes. Optional auxiliary objectives include 0.75X, 1.5X, and 2X versions. Their working distances differ, so the appropriate accessory should be selected according to the inspection requirements.
9. What is the interpupillary distance adjustment range?
The interpupillary distance can be adjusted from 55 to 75 mm to accommodate different users.
