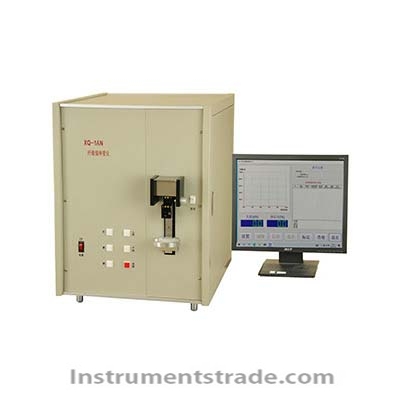

XQ-1A Fiber Strength and Elongation Tester

Position: Home > > Industry specific instrument > Textile industry special equipment > Fiber type testing apparatus > XQ-1A Fiber Strength and Elongation Tester

XQ-1A Fiber Strength and Elongation Tester

Product ID：HZFZxwei009

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberXQ-1A

Brand NameYIMA

Payment TermsT/T, paypal，Alibaba.com Pay

XQ-1A Fiber Strength and Elongation Tester

Product Introduction
The XQ-1A Fiber Strength and Elongation Tester is an upgraded version of the XQ-1 fiber tensile testing instrument, designed to measure the tensile properties of individual chemical and natural fibers. Featuring precision mechanics, pneumatic clamping, and computer-controlled operation, it provides stable measurements and real-time load-elongation curves for fiber performance analysis.
The tester supports dry and wet fiber testing and can connect to a vibration-type fiber fineness tester to determine the breaking force, linear density, and specific strength of the same fiber. Test data and tensile curves can be printed using an external printer.
Designed for textile manufacturers, fiber laboratories, and inspection agencies, the XQ-1A follows test method requirements associated with GB/T 14337, ISO 5079, and BISFA standards.

Performance Features
• Pneumatic clamping: Provides convenient specimen clamping for tensile tests.
•Computer-controlled operation: Automates test procedures and data processing.
• Real-time curve display: Displays load-elongation curves during fiber stretching.
• Dry and wet testing: Evaluates single-fiber tensile properties under different conditions.
• High measurement resolution: Load resolution of 0.1 cN and elongation measurement error of ≤0.05 mm.
• Adjustable test speed: Lower clamp speed from 1 to 100 mm/min.
• Data storage and printing: Supports test data analysis, storage, and printing of results and curves.
• System integration: RS232 interface supports connection to a compatible vibration-type fiber fineness tester.

Working Principle
The XQ-1A securely clamps an individual fiber between the upper and lower grips. During testing, the lower clamp moves at a controlled speed, stretching the fiber while the instrument measures the applied load and elongation.
The computer records the load-elongation curve and processes the measurement data to evaluate tensile performance. When connected to a compatible fiber fineness tester, the system can combine tensile force and linear density measurements to calculate specific strength.

Technical Parameters

Parameter	Specification
Model	XQ-1A
Instrument Type	Fiber Strength and Elongation Tester
Test Specimens	Individual chemical and natural fibers
Testing Conditions	Dry and wet
Load Measurement Range	0–100 cN
Load Measurement Error	≤ ±1%
Load Resolution	0.1 cN
Elongation Measurement Range	100 mm
Elongation Measurement Error	≤ 0.05 mm
Elongation Resolution	0.1%
Lower Clamp Speed	1–100 mm/min
Lower Clamp Travel	100 mm
Clamp Spacing	10–50 mm
Interface	RS232
Compatible Equipment	Vibration-type fiber fineness tester
Power Supply	220 V AC ±10%
Weight	Approx. 45 kg
Dimensions (L × W × H)	540 × 434 × 560 mm
Applicable Standards	GB/T 14337, ISO 5079, relevant BISFA test methods

Application Scenarios
• Synthetic fiber manufacturing: Measuring the tensile strength and elongation of chemical fibers.
• Natural fiber testing: Evaluating the tensile properties of individual natural fibers.
• Textile quality control: Monitoring fiber consistency and production quality.
• Fiber inspection laboratories: Conducting standardized tensile performance tests.
• Research and development: Studying fiber mechanical properties and material performance.
• Integrated fiber analysis: Combining tensile measurements with linear density data using compatible fineness testing equipment.

XQ-1A vs. Conventional Manual Fiber Tensile Testing

Feature	XQ-1A Tester	Conventional Manual Testing
Specimen Clamping	Pneumatic	Depends on equipment
Test Operation	Computer-controlled	Often requires more manual operation
Load-Elongation Curves	Real-time display	Depends on the measurement system
Data Analysis and Storage	Computer-based	Depends on workflow
Dry and Wet Testing	Supported	Depends on equipment
Fineness Tester Integration	RS232 interface	Depends on system compatibility
Test Speed	Adjustable, 1–100 mm/min	Depends on equipment

Frequently Asked Questions (FAQ)
1. What does the XQ-1A Fiber Strength and Elongation Tester measure?
It measures the tensile properties of individual fibers, including load and elongation during stretching.
2. Can the XQ-1A test both natural and chemical fibers?
Yes. It is suitable for individual natural and chemical fibers.
3. Does it support wet fiber testing?
Yes. The instrument supports tensile testing under both dry and wet conditions.
4. What is the load measurement range?
The load measurement range is 0–100 cN, with a resolution of 0.1 cN and measurement error of ≤ ±1%.
5. What is the maximum elongation measurement range?
The specified elongation measurement range is 100 mm, with measurement error of ≤0.05 mm.
6. Can the instrument display tensile curves?
Yes. Its computer-controlled system displays load-elongation curves in real time and supports data analysis and storage.
7. Can it measure fiber specific strength?
Yes, when connected to a compatible vibration-type fiber fineness tester, it can combine breaking-force and linear-density measurements to determine specific strength.
8. Which standards does the XQ-1A support?
It is designed for test methods associated with GB/T 14337, ISO 5079, and relevant BISFA standards. Confirm the required test method and configuration before ordering.
