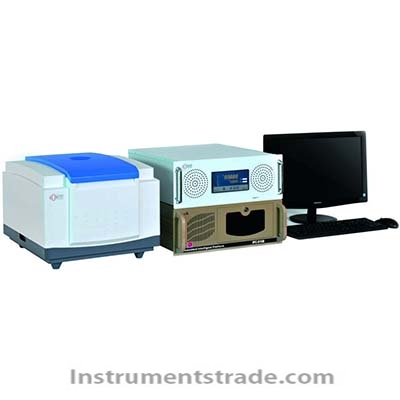

PQ001 Nuclear Magnetic Resonance Fiber Oil Content Analyzer
Product Introduction
PQ001 Nuclear Magnetic Resonance Fiber Oil Content Analyzer is a professional low-field nuclear magnetic resonance (NMR) instrument designed for fiber manufacturers to rapidly measure fiber oiling rate, oil content, and moisture content. Equipped with dedicated fiber oiling rate analysis software, the analyzer provides fast, accurate, and user-friendly testing solutions for textile and chemical fiber industries.
Based on advanced nuclear magnetic resonance detection technology, PQ001 integrates optimized hardware design, intelligent software operation, and specialized testing algorithms to achieve high precision analysis of fiber finishing oil content. The instrument complies with the requirements of GB/T 6504-2008 "Test method for oil content of man-made fibers", making it an ideal solution for production quality control, process optimization, and laboratory analysis.
PQ001 can also be used for solid fat content measurement and moisture analysis, providing a versatile analytical platform for industrial applications.

Product Functions
• Fiber oiling rate rapid measurement according to GB/T 6504-2008
• Fiber oil content analysis
• Moisture content detection
• Solid fat content determination
• Quality control and production process monitoring for fiber enterprises

Performance Features
High Precision Fiber Oiling Rate Measurement
PQ001 provides excellent measurement accuracy for fiber oil content analysis:
• Oil content error ≤0.1% at 5% oil content
• Oil content error ≤0.02% at 0.5% oil content
• Relative standard deviation (RSD) ≤2%
• Detection limit as low as 10 mg water or oil
The high sensitivity NMR detection technology ensures reliable results even for low-content oil samples.

Fast and Non-Destructive Testing
Compared with traditional chemical extraction methods, PQ001 provides rapid analysis without complicated sample preparation procedures.
• Short testing time
• No chemical reagent consumption
• Non-destructive measurement
• Suitable for routine quality inspection and production monitoring

Professional Fiber Analysis Software
The dedicated testing software provides a convenient operating experience:
• Chinese and English bilingual interface
• Intuitive graphical operation
• Automated testing workflow
• Easy parameter setting and result management
The software design allows operators to quickly perform fiber oiling rate analysis without complex training.

Stable Magnetic System Design
The instrument adopts a permanent magnet system with stable magnetic field performance, ensuring long-term measurement reliability and repeatability.

Working Principle
PQ001 uses low-field nuclear magnetic resonance technology to analyze hydrogen nuclei signals in fiber samples.
During measurement, the hydrogen nuclei in oil, water, and other hydrogen-containing components generate characteristic NMR signals under an external magnetic field. By analyzing signal intensity and relaxation characteristics, the instrument calculates the content of oil and moisture in fiber samples.
Because oil and water components have different NMR response characteristics, PQ001 can accurately distinguish and quantify fiber oiling rate and moisture content without chemical extraction.

Technical Parameters

Parameter	Specification
Instrument Type	Nuclear Magnetic Resonance Fiber Oil Content Analyzer
Magnetic System	Permanent Magnet
Magnetic Field Strength	0.5 ± 0.08 T
Main Frequency	21.3 MHz
Probe Coil Diameter	25 mm
Effective Sample Detection Range	Ø25 mm × H25 mm
Oil Content Accuracy	Error ≤0.1% (5% oil content); Error ≤0.02% (0.5% oil content)
Repeatability	Relative Standard Deviation ≤2%
Detection Limit	10 mg water or oil
Applicable Standard	GB/T 6504-2008
Software Interface	Chinese / English
Dimensions	1685 mm × 520 mm × 386 mm
Weight	Approx. 134 kg

Applications
Chemical Fiber Manufacturing
PQ001 is widely used for:
• Polyester fiber oiling rate inspection
• Nylon fiber oil content testing
• Chemical fiber production process monitoring
• Fiber finishing agent optimization

Textile Quality Control
Applications include:
• Incoming raw material inspection
• Production quality management
• Product consistency evaluation
• Research and development testing

Laboratory Analysis
Suitable for:
• Fiber research institutes
• Textile laboratories
• Quality inspection organizations
• Industrial testing centers

PQ001 vs Traditional Fiber Oil Content Testing Methods

Comparison Item	PQ001 NMR Analyzer	Traditional Extraction Method
Detection Principle	Nuclear magnetic resonance	Chemical extraction and weighing
Testing Speed	Fast measurement	Longer testing process
Chemical Reagents	Not required	Required
Sample Damage	Non-destructive	May damage samples
Operation Difficulty	Simple software operation	Complex manual procedures
Environmental Impact	Low	Chemical waste generation
Repeatability	High	Operator dependent

Frequently Asked Questions (FAQ)
1. What is PQ001 Nuclear Magnetic Resonance Fiber Oil Content Analyzer used for?
PQ001 is mainly used to measure fiber oiling rate, oil content, moisture content, and solid fat content. It is specially designed for chemical fiber manufacturers and textile quality control laboratories.

2. Does PQ001 comply with industry standards?
Yes. PQ001 meets the requirements of GB/T 6504-2008, the standard method for determining oil content in man-made fibers.

3. What is the minimum detection limit of PQ001?
The minimum detection limit is 10 mg of water or oil, allowing accurate measurement of low-content samples.

4. Is chemical reagent required during testing?
No. PQ001 uses nuclear magnetic resonance technology and does not require chemical extraction reagents, making the testing process cleaner and more environmentally friendly.

5. What industries can benefit from this instrument?
PQ001 is suitable for chemical fiber production enterprises, textile manufacturers, research laboratories, quality inspection institutions, and material testing centers.

6. Why choose an NMR fiber oil content analyzer instead of traditional methods?
NMR analysis provides faster testing speed, higher repeatability, simpler operation, and reduced environmental impact compared with traditional chemical extraction methods, making it suitable for modern fiber production quality control.

Summary
PQ001 Nuclear Magnetic Resonance Fiber Oil Content Analyzer is a specialized NMR testing instrument for fiber oiling rate and moisture analysis. With high accuracy, rapid detection, professional software, and compliance with GB/T 6504-2008, it provides an efficient and reliable solution for chemical fiber manufacturers, textile laboratories, and quality control applications.
