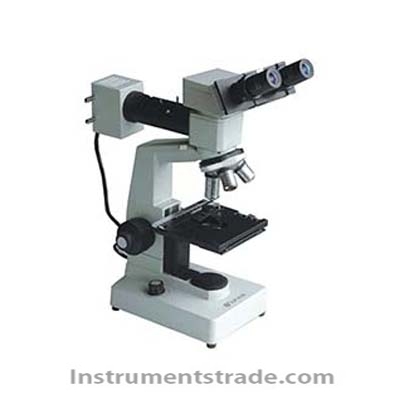

XJP-108 series metallographic microscope for Cermet

Product ID：GGXjx020

Price: Please inquire PDF Format

Supply Ability:60 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberXJP-108 series

Brand NameWUZHOUAOKA

Payment TermsTT，PAYPAL，Alibaba.com Pay

XJP-108 series metallographic microscope
Introduction:
The XJP-H100 series of metallographic microscopes were developed for the electronics, metallurgy, chemical and instrumentation industries to clearly observe transparent, translucent and opaque objects.
Technical Parameters:

	Technical Specification		Model
			XJP-H102	XJP-H103	XJP-H108	XJP-H109
Viewing Body	Monocular Body	Square 45°Incline	●
	Dual Viewing body			●
	Binocular Body	30°Incline, Interpupillary Adjustable Distance: 55mm～75mm			●
	Trinocular Body					●
Eyepiece	WF10×(Viewing Field Diameter:ø18mm)、WF16×(Viewing Field Diameter:ø11mm)		●	●	●	●
MetallurgicalPlain-field Objectives (without cover glass)	4×/NA0.1、10×/NA0.25、40×(s)/NA0.65		●	●	●	●
Mechanical Stage	Size:130mm×122mm Moving Range:70mm×30mm Vernier Division:0.1mm		●	●	●	●
Nosepiece	Nosepiece of Three Holes Revolving On Ball		●	●	●	●
Focusing	a.Coaxial Coarse And Fine Focusing System		●	●	●	●
	b.Focusing Range: 40 mm
	c.Division Of Fine Focus Adjustment:0.002mm
Upright Vertical Illumination	110V, 220V/6V 20W Halogen Bulb, with brightness adjustable; Filter(Light Blue、Light Green)		●	●	●	●
Optional Accessory	Photo Unit
	Color Micro-TV Unit
	Digital Micro-Photo Unit
	Metallurgical Achromatic Objectives: 63X(s)、100X(s、oil)
	Plain-Field Eyepiece: 12.5×/ø11、20×/ø11
	ptional Transmit light source 6V 20W

Introduction:
The XJP-H100 series of metallographic microscopes were developed for the electronics, metallurgy, chemical and instrumentation industries to clearly observe transparent, translucent and opaque objects.
