XH-1 Fiber Thermal Shrinkage Tester

Product Introduction

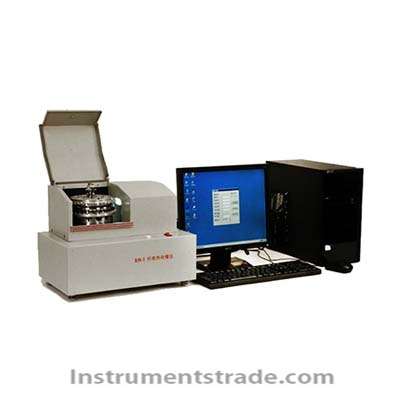

The XH-1 Fiber Thermal Shrinkage Tester is a precision instrument developed for measuring the dry heat shrinkage rate of individual synthetic staple fibers. Developed through collaboration between the manufacturer and the Shanghai Lipu Institute of Applied Science and Technology at Donghua University, the tester uses digital measurement technology to provide fast testing and stable, reliable results.
Designed for textile laboratories, synthetic fiber manufacturers, and quality inspection organizations, the XH-1 measures fiber length before and after heating to determine thermal shrinkage. It is intended for testing methods specified in the Chinese textile industry standard FZ/T 50004.

Performance Features
• Digital measurement technology: Supports precise fiber length measurement and shrinkage analysis.
• Wide shrinkage range: Measures thermal shrinkage rates from 0% to 25%.
• High measurement precision: Length measurement precision of ±0.01 mm.
• Reliable results: Thermal shrinkage measurement error of ≤±0.1%.
• Multi-sample holder: Cylinder rack accommodates up to 35 fiber specimens.
• Standardized testing: Designed for dry heat shrinkage testing of individual chemical staple fibers in accordance with FZ/T 50004.
• Compact construction: Bench-top design for textile laboratories and quality control facilities.

Working Principle
The XH-1 measures the initial length of a single fiber specimen held between upper and lower clamps. After the specimen undergoes the specified dry heat treatment, its length is measured again. The instrument calculates the thermal shrinkage rate from the change in length before and after heating.
The digital measurement system supports precise readings and consistent test results, helping users evaluate fiber dimensional stability under dry heat conditions.

Technical Parameters

Parameter	Specification
Model	XH-1
Instrument Name	Fiber Thermal Shrinkage Tester
Application	Dry heat shrinkage testing of synthetic staple fibers
Thermal Shrinkage Measurement Range	0–25%
Measurement Precision	±0.01 mm
Thermal Shrinkage Measurement Error	≤±0.1%
Distance Between Upper and Lower Clamps	20 ±1 mm
Specimen Capacity	Up to 35 fibers per cylinder rack
Power Supply	220 V AC ±10%
Main Unit Weight	Approx. 20 kg
Dimensions (L × W × H)	450 × 300 × 360 mm
Applicable Standard	FZ/T 50004

Application Scenarios
• Synthetic fiber manufacturing: Evaluating dry heat shrinkage during fiber production.
• Textile laboratories: Testing dimensional stability and thermal performance of staple fibers.
• Quality control departments: Checking fiber consistency between production batches.
• Third-party testing laboratories: Supporting standardized fiber performance testing.
• Research and development: Studying the effects of fiber composition and processing conditions on thermal shrinkage.

XH-1 vs. Conventional Fiber Shrinkage Testing Methods

Feature	XH-1 Fiber Thermal Shrinkage Tester	Manual Measurement Method
Measurement Technology	Digital measurement	Manual length measurement
Shrinkage Range	0–25%	Depends on the method
Length Measurement Precision	±0.01 mm	Depends on operator and equipment
Shrinkage Measurement Error	≤±0.1%	Depends on the method
Specimen Capacity	Up to 35 fibers per rack	Depends on the setup
Standardized Testing	Designed for FZ/T 50004 methods	Depends on test procedure
Typical Use	Laboratory testing and quality control	Basic or preliminary testing

Frequently Asked Questions (FAQ)
1. What does the XH-1 Fiber Thermal Shrinkage Tester measure?
It measures the dry heat shrinkage rate of individual synthetic staple fibers by comparing fiber length before and after heating.
2. What is the thermal shrinkage measurement range?
The instrument has a measurement range of 0–25%.
3. What is the measurement precision?
The specified length measurement precision is ±0.01 mm, with a thermal shrinkage measurement error of no more than ±0.1%.
4. How many fiber specimens can be tested on the holder?
The cylinder rack can accommodate up to 35 fiber specimens.
5. Which testing standard does the XH-1 follow?
It is designed for dry heat shrinkage testing of individual chemical staple fibers according to the test method requirements of FZ/T 50004.
6. What is the distance between the upper and lower clamps?
The specified clamp spacing is 20 ±1 mm.
7. Which industries use this fiber shrinkage tester?
Typical users include synthetic fiber manufacturers, textile laboratories, fiber inspection agencies, and research institutions.
8. What power supply does the instrument require?
The XH-1 requires a 220 V AC power supply with a tolerance of ±10%.
