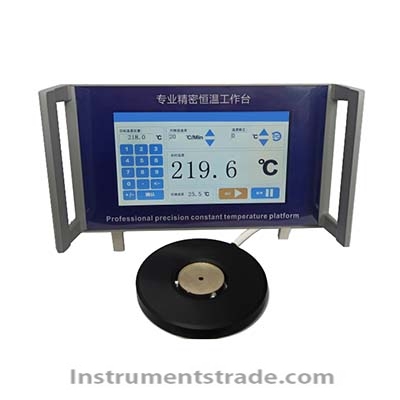

WT-4000H microscope precision constant temperature workbench Introduction: The WT-4000H precision temperature control heating stage is specially developed for materials science, biochemistry, metallurgy, organic chemistry, polymer and nanomaterial science. When used in conjunction with optical or electron microscopes, it allows for the observation of states and various changes during melting, sublimation, and crystallization processes at the microscopic level. This instrument features a user-friendly design, high automation, simple operation, advanced technology, excellent performance, and innovative and reliable structure. The heating stage consists of a precision temperature controller and a constant temperature stage for holding objects, which are connected by a 5-pin cable socket. The constant temperature stage for holding objects is placed on the stage of an optical or electronic microscope. It is particularly suitable for use with a polarizing microscope to form a polarizing melting point measurement system. Features: 1. Equipped with a high-definition full-color capacitive touch LCD screen, the device intuitively displays various parameters such as ambient temperature, target temperature, real-time temperature, heating/cooling speed, temperature correction, and the equipment's operational process. Multiple controllable heating/cooling rates are available on the screen to cater to users' varying needs for heating/cooling speeds. 2. During the temperature rise process, it can be paused at any time and the set parameters can be modified. After resuming operation, the sensor correction function will operate according to the new set values. Linear correction can be performed on the temperature of the temperature sensor based on the customer's sample loading volume, volume, the slide on which the sample is placed, and the influence of ambient temperature. Technical Specifications: Input power supply: AC 220V ±10% 45-60HZ Hot plate heating working power supply: DC 24V 15A Power consumption: 360W Temperature range: room temperature - 380℃ (tested under natural air cooling with an ambient temperature of 25 degrees) Maximum temperature of the external body of the hot stage: hot body 400℃; ≤70℃ at room temperature 25℃ Maximum load capacity of the heating element: 200 grams; Size of the heating element: Φ37mm Working mode: Continuous Accuracy: Measurement accuracy: full range ≤±0.5% System fluctuation: ±0.5℃ Maximum temperature rise rate: room temperature to 200℃ ≤ 160 seconds The slowest heating rate reaches 350℃ in 2 hours or longer (depending on the heating rate and the working environment of the heating stage) The adjustable temperature rise rate range is: 5, 10, 15, 20 degrees per minute Instant constant temperature response time: ≤0.01 seconds
WT-4000H microscope precision constant temperature workbench Introduction: The WT-4000H precision temperature control heating stage is specially developed for materials science, biochemistry, metallurgy, organic chemistry, polymer and nanomaterial science. When used in conjunction with optical or electron microscopes, it allows for the observation of states and various changes during melting, sublimation, and crystallization processes at the microscopic level. This instrument features a user-friendly design, high automation, simple operation, advanced technology, excellent performance, and innovative and reliable structure. The heating stage consists of a precision temperature controller and a constant temperature stage for holding objects, which are connected by a 5-pin cable socket. The constant temperature stage for holding objects is placed on the stage of an optical or electronic microscope. It is particularly suitable for use with a polarizing microscope to form a polarizing melting point measurement system.
