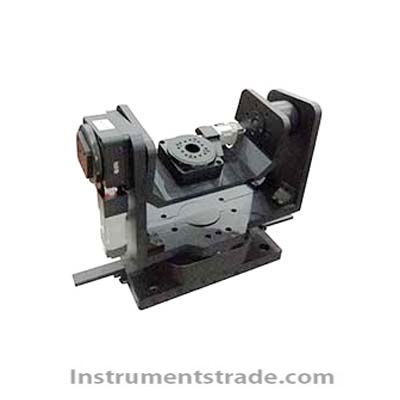

WN303RA200MD three-dimensional arbitrary angle electric rotating table

Product ID:GSYwytai031

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberWN303RA200MD
    Brand NameBEIJINGWEINA
    Payment TermsTT,PAYPAL
    WN303RA200MD three-dimensional arbitrary angle electric rotating table

    Features:
    1. Standard stepper motor and RS232 interface, the company's self-developed servo motor series motion controller can realize automatic control for it
    2. The rotating shaft system is precisely processed by multiple processes, with high matching accuracy, large load capacity and long service life
    3. Equipped with servo motor, fast rotation speed and accurate positioning
    4. Adopting the worm gear and worm structure which is precisely researched and equipped, the movement is comfortable, it can rotate in any forward and reverse direction, and the empty return is very small.
    5. Exquisitely designed emptying back structure, which can adjust the empty back gap caused by long-term use
    6. The special structure design ensures the extremely low end jump and eccentricity of the rotating table, making the rotating movement more stable
    7. The center through hole of the rotating table has strict coaxiality requirements with the center of rotation, and the center aperture of the rotating table has strict tolerance limits, which is convenient for customers to make precise positioning
    8. Equipped with two conductive slip rings, which can allow the turntable to rotate indefinitely without interference from winding
    9. The scale circle on the periphery of the table top is a laser engraved ruler, and the ruler can be rotated relative to the table top, which is convenient for initial positioning and reading
    10. The servo motor and the worm are connected by imported high-quality elastic coupling, the transmission is synchronized, the deflection performance is good, the eccentric disturbance is greatly reduced and the noise is low
    11. The limit function can be increased, the initial zero position can be increased, the stepper motor can be replaced, the rotary encoder can be installed, and the product modification and customization can be accepted
    technical parameter:
    Angle range: Unlimited rotation around X, Y, Z three axes
    Table size: φ100
    Transmission ratio: 180:1
    Drive mechanism: Worm gear and worm mechanism
    Guide rail form: bearing
    Stepping motor (1.8°): 200W servo motor around Z axis, 100W servo motor for the remaining two axes
    Body material: aluminum alloy
    Surface treatment: black anodized
    Center load: 10kg
    Weight: 23kg
    Resolution: 0.72″
    Speed: 35°/sec
    Repeat positioning accuracy: 0.005°=18″
    End jump accuracy: 15µ
    Empty back: 0.005°=18″
    Conductive slip ring: 2
