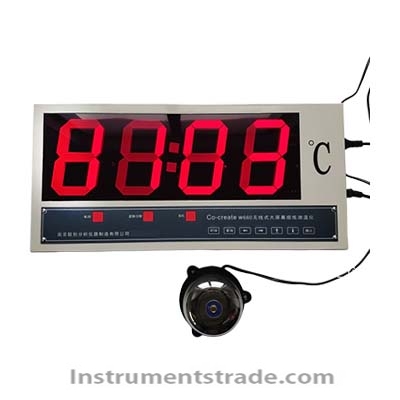

W660 Wireless Large-Screen Molten Metal Temperature Meter

Product ID：CLWDqtOther005

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
Request QuoteAdd To Cart
share:
  • Product Introduction
  • Other information
  • Model NumberW660
    Brand NameNJLIANCHUANG
    Payment TermsTT，PAYPAL，Alibaba.com Pay
    W660 Wireless Large-Screen Molten Metal Temperature Meter
    Product Overview
    The W660 Wireless Large-Screen Molten Metal Temperature Meter is an industrial temperature measurement system that combines the flexibility of a handheld molten metal thermometer with the long-distance visibility of a wall-mounted large-screen display. It uses reliable wireless transmission technology to synchronously transmit measured temperature values from the handheld measuring unit to the remote large-screen display, eliminating the cable connection between the testing gun and display.
    The W660 is designed for rapid and precise molten metal temperature measurement in smelting, casting, and metal processing applications. When paired with the appropriate thermocouple, it can measure molten steel, iron, copper, aluminum, and zinc over a wide temperature range.
    The wireless design not only improves operational flexibility but also helps reduce interference caused by long signal cables. With a transmission distance of more than 500 m, the system is suitable for industrial sites where operators and observers need to view temperature measurements from different locations.


    Key Features
    • Wireless temperature transmission: Temperature data from the handheld measuring instrument is transmitted wirelessly to the large-screen display in real time.
    • Long transmission distance: Wireless transmission distance is greater than 500 m, supporting remote temperature monitoring in large industrial facilities.
    • Handheld and large-screen combination: Combines the flexibility of a handheld thermometer with the excellent long-distance visibility of a wall-mounted display.
    • Large 5-inch display: Uses a 5-inch digital display with 128 mm-high digits, making temperature readings clearly visible from a distance.
    • Reliable wireless communication: Uses a professional imported data transmission module to improve the reliability of wireless temperature data transmission.
    • Strong anti-interference capability: Advanced interference-resistant technology enables stable operation in demanding industrial environments.
    • Measurement during furnace operation: Temperature measurement can be performed during medium-frequency furnace operation without switching off the furnace power.
    • Automatic temperature hold: The measured temperature value is automatically retained after measurement completion.
    • Multiple measurement alerts: Provides synchronized light indication, audible bell notification, thermocouple disconnection alarm, over-range alarm, and low-voltage warning.
    • Large historical data storage: Stores up to 1,000 sets of historical measurement data for review.
    • RS-232 communication: Provides a standard RS-232C interface for computer communication and historical data export.
    • Excel data export: Historical measurement data can be exported to a computer for long-term storage.
    • Optional printer: A printer can be configured for immediate printing of temperature measurement results.
    • Time display: Continuously displays the current time and can function as a clock when not measuring.
    • Data retention after power failure: Time and measurement data can be retained even after power interruption.
    • Site monitoring compatibility: When combined with a monitoring system, operators can remotely observe measurement conditions and strengthen production-site management.


    Working Principle
    The W660 consists of a wireless transmitting handheld molten metal thermometer and a wireless receiving large-screen display.
    During temperature measurement, a compatible thermocouple is connected to the handheld measuring unit through the testing gun. When the thermocouple contacts the molten metal, it generates a thermoelectric signal corresponding to the measured temperature.
    The handheld instrument processes the temperature signal and converts it into a digital temperature value. The measurement data is then transmitted wirelessly at 433 MHz to the receiving large-screen display.
    The receiving unit displays the temperature value using large 128 mm-high digital characters, allowing personnel at a distance to monitor the molten metal temperature without being physically connected to the handheld thermometer.
    After the measurement is completed, the system can automatically retain the measured value while providing light and audible indications. Measurement data can also be stored internally and transferred to a computer through the standard RS-232C interface.


    Technical Parameters
    Measurement and Performance
    Item Specification
    Measurement Accuracy ≤ ±0.2% ±1°C
    Resolution 1°C
    Response Time 1 s
    Wireless Transmission Distance >500 m
    Wireless Transmission Frequency 433 MHz
    Compatible Thermocouples S, B, W, R, K
    RS-232C Interface Standard
    Measurement Range and Applications
    Thermocouple Measurement Range Suitable Application
    Single Platinum-Rhodium KS602 0–1750°C Molten steel, iron, copper and aluminum
    Single Platinum-Rhodium KR602 0–1750°C Molten steel, iron, copper and aluminum
    Double Platinum-Rhodium KB602 500–1800°C High-temperature molten steel
    Tungsten-Rhenium KW602 0–2000°C Molten steel and iron
    Nickel-Chromium/Nickel-Silicon K Type 0–1000°C Molten aluminum and zinc
    Environmental Conditions
    Item Specification
    Operating Temperature 0–50°C
    Operating Humidity 5–80% RH
    Storage Temperature -20–60°C
    Storage Humidity 5–90% RH
    Display and Power Supply
    Item Specification
    Large-Screen Display Dimensions 500 × 238 × 90 mm
    Large-Screen Display 5-inch digital display
    Digit Height 128 mm
    Handheld Transmitter Power Ni-MH rechargeable battery, DC 6 V ±10%
    Large-Screen Display Power AC 220 V ±10%, 50 Hz


    Applications
    The W660 Wireless Large-Screen Molten Metal Temperature Meter is suitable for:
    • Steel smelting and casting
    • Iron smelting and casting
    • Copper melting
    • Aluminum melting
    • Zinc melting
    • Foundry operations
    • Medium-frequency furnace temperature measurement
    • Molten steel temperature monitoring
    • Molten iron temperature monitoring
    • High-temperature metal processing
    • Remote molten metal temperature monitoring
    • Industrial production lines requiring long-distance temperature display


    Application Scenarios
    Steel and Iron Smelting
    The W660 can be equipped with KS602, KR602, or KW602 thermocouples to measure molten steel and iron temperatures during smelting and casting. The wireless large-screen display allows production personnel to monitor the temperature without staying close to the furnace.
    Medium-Frequency Furnace Measurement
    The system's strong anti-interference capability allows operators to measure molten metal temperature while the medium-frequency furnace remains powered on, improving measurement convenience and production efficiency.
    Large Foundry Workshops
    In large workshops, the handheld operator can perform the measurement close to the furnace while the temperature result is transmitted to a large-screen display installed at a remote location. This eliminates long signal cables between the measuring gun and display.
    Remote Production Monitoring
    The W660 supports a wireless transmission distance of more than 500 m, making it suitable for production environments where temperature values need to be observed at a considerable distance from the measuring point.
    Production Site Management
    The large-screen display can be combined with site monitoring equipment to provide additional visibility of the measurement process. This can help production managers monitor operating conditions and improve internal production management.


    Comparison
    Feature W660 Wireless Large-Screen Temperature Meter Wired Large-Screen Temperature Meter
    Temperature Transmission Wireless Wired
    Transmission Distance >500 m Limited by cable length
    Handheld Measurement Yes Yes
    Remote Large-Screen Display Yes Yes
    Connection Cable Not required between transmitter and display Required
    Wireless Frequency 433 MHz Not applicable
    Large-Screen Digit Height 128 mm 128 mm
    Anti-Interference Design Enhanced wireless anti-interference design Depends on cable and instrument design
    Historical Data Storage 1,000 sets Depends on model
    RS-232C Interface Standard Depends on model
    Computer Data Export Supported Depends on model
    Measurement During Medium-Frequency Furnace Operation Supported Depends on installation
    Remote Monitoring Highly flexible Limited by cable installation
    Installation Flexibility High Relatively lower


    Instrument Configuration
    Standard Configuration
    • FAQ
      1. What is the W660 Wireless Large-Screen Molten Metal Temperature Meter used for?
      The W660 is designed for rapid and accurate molten metal temperature measurement in smelting, casting, foundry, and metal processing applications.
      2. How does the W660 transmit temperature data?
      The handheld temperature meter uses a 433 MHz wireless transmission system to transmit measured temperature values to the remote large-screen display.
      3. What is the wireless transmission distance?
      The specified wireless transmission distance is greater than 500 m, making the system suitable for large industrial workshops and remote monitoring applications.
      4. What thermocouples can be used with the W660?
      The W660 supports S, B, W, R, and K type thermocouples, with different thermocouple configurations covering measurement ranges from 0°C to 2000°C.
      5. What molten metals can the W660 measure?
      Depending on the selected thermocouple, the instrument can measure molten steel, iron, copper, aluminum, and zinc.
      6. Can the W660 measure temperature while a medium-frequency furnace is operating?
      Yes. The instrument uses enhanced anti-interference technology and can perform temperature measurement during medium-frequency furnace operation without switching off the furnace power.
      7. How large is the display?
      The wireless receiving display uses a 5-inch digital display with digits approximately 128 mm high, allowing temperature readings to be seen clearly from a distance.
      8. Can the W660 store historical measurement data?
      Yes. The instrument can store up to 1,000 sets of historical temperature data for later review.
      9. Can measurement data be transferred to a computer?
      Yes. The W660 is equipped with a standard RS-232C interface. Historical data can be exported to a computer for long-term storage.
      10. Does the W660 support printing?
      Yes. A printer is available as an optional accessory for immediate printing of measurement data.
      11. What happens when the temperature measurement is completed?
      The system provides synchronized light and audible indications, and the measured temperature value is automatically retained. The instrument also provides alarms for thermocouple disconnection, over-range conditions, and low battery voltage.
      12. What are the main advantages of the wireless design?
      The wireless design eliminates the cable between the handheld measuring unit and the large-screen display, providing greater operating flexibility, easier installation, longer-distance display, and improved resistance to interference caused by long signal cables.


    • Related Products
    Learn More >
    Products
    Analytical instruments
    Physical property test
    Environmental monitoring and analysis
    Lab general equipment
    About us
    About this website
    Our service
    Product purchase
    Contact Us

    Newsletter

    Make Sure you dont miss interesting happenings by joining our newsletter program.

    Contact Us
    +86-18620722006
    instruments@instrumentstrade.com
    Copyright © 2017-2024 instrumentstrade.com All rights reserved.   Powered By UeeShop
    No. Component Quantity
    1 Wireless Transmitting Handheld Molten Metal Temperature Meter 1
    2 Testing Gun 1 set
    3 Wireless Receiving Large-Screen Display 1
    4 Intelligent Charger 1
