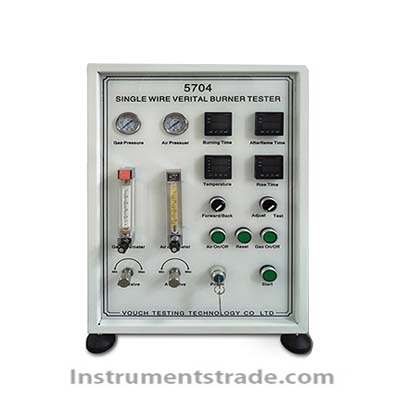

VOUCH 5704 Single Wire and Cable Combustion Tester Features: 1. Imported time and temperature control instruments with digital display 2. Isolated box design 3.2mm stainless steel, CNC-formed, beautiful and durable 4. Special burners and furniture fully comply with standard requirements 5. Pneumatic motion control, no manual operation required Technical Specifications: Executive standard: GB18380.11IEC60332-1-1/2/3 Test area dimensions: 320W*470D*1200H Flame height adjustment: 10-250mm Propane flow adjustment: 100-1000Lmm/min Air flow rate: 1-10L/min Flame temperature measurement: up to 1050 degrees Flame angle adjustment: 0-45 degrees Temperature rise timing: 0-99.99s Ignition time adjustment range: 0-99.99s Ignition time resolution: 0.01s Temperature rise time resolution: 0.01s Material of inner and outer boxes: The inner and outer boxes for the testing area are made of 2mm 304# stainless steel plates, processed and formed through CNC machining Transmission mechanism: Linear bearing paired with a nitro-coated optical shaft transmission design Fixture design: Anodizing of imported aluminum materials Blowtorch: 1KW premixed burner Time controller: digital display timer Transmission control: Pneumatic automatic control (no manual operation required) Ignition method: manual ignition Flowmeter: dedicated propane flowmeter, air flowmeter Thermocouple: Imported thermocouple
VOUCH 5704 Single Wire and Cable Combustion Tester Features: 1. Imported time and temperature control instruments with digital display 2. Isolated box design 3.2mm stainless steel, CNC-formed, beautiful and durable 4. Special burners and furniture fully comply with standard requirements 5. Pneumatic motion control, no manual operation required
