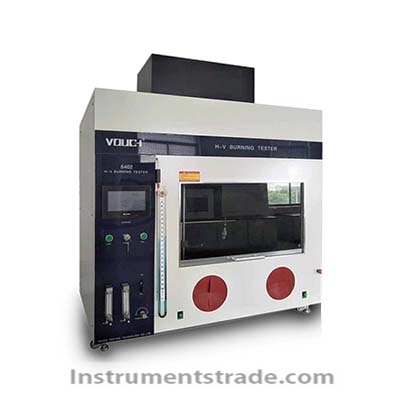

VOUCH 5402 Horizontal and Vertical Combustion Tester Introduction: The VOUCH 5402 horizontal and vertical combustion tester is primarily suitable for research, production, and quality inspection departments of lighting equipment, low-voltage electrical appliances, motors, tools, instruments, and other electrical and electronic plastic or rubber products and their components, as well as for insulation materials, engineering plastics, fire-resistant sealing materials for type approval, or other solid combustible material industries. Features: 1. Background inside the box: black (powder paint) 2. Color touch screen controller, with test programs directly selectable 3. PLC program control, one-button single-person independent operation 4. Linear bearing with chrome-plated shaft transmission design 5. Silent design tempered glass sliding window 6. Equipped with manual operation access 7. Test gas: Methane with a purity of over 99.9% Technical Specifications: Test items: HB, V, HBF 5V, VTM, HBF. Multiple options are available Outline dimensions: 1200*600*1120 Inner box volume: 0.8 cubic meters Flame height adjustment: 10-200mm Flame flow adjustment: 100-1000mm/min Flame pressure difference adjustment: 5-200mm water column Flame angle adjustment: 0-45 degrees Vertical movement distance of the sample: 450mm Horizontal movement distance of the sample: 180mm Ignition time adjustment range: 0-99.99 seconds Timing range for residual flame and afterglow: 0.0s-999.9s Resolution of the combustion time timer: 0.01s Resolution of afterglow and afterburning time: 0.1s
VOUCH 5402 Horizontal and Vertical Combustion Tester Introduction: The VOUCH 5402 horizontal and vertical combustion tester is primarily suitable for research, production, and quality inspection departments of lighting equipment, low-voltage electrical appliances, motors, tools, instruments, and other electrical and electronic plastic or rubber products and their components, as well as for insulation materials, engineering plastics, fire-resistant sealing materials for type approval, or other solid combustible material industries.
