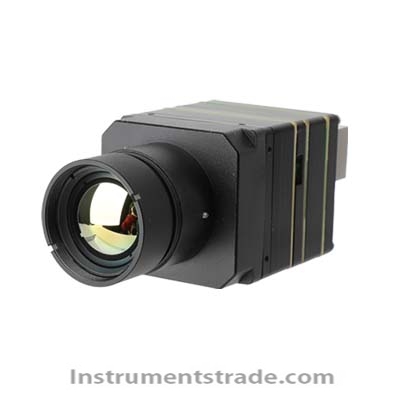

VD641N Network Thermal Imaging Module

Product Overview
The VD641N Network Thermal Imaging Module is a compact network-based thermal imaging component featuring a 640×480 uncooled vanadium oxide (VOX) detector. It provides clear infrared imaging, multiple pseudo-color palettes, web-based monitoring, raw thermal data output, smart alarms, and remote configuration.
With plug-in-free web video playback, ONVIF Profile S/T support, SDK, and WEB API interfaces, the module is suitable for integration into various thermal imaging and network monitoring systems.

Key Features
• 640×480 uncooled VOX detector with 17 μm pixel pitch.
• Compact design for flexible system integration.
• Multiple pseudo-color palettes, including black hot, white hot, iron red, and rainbow.
• Athermal fixed-focus lenses reduce focus changes caused by temperature variations.
• Supports manual and automatic focusing with multiple optional lens configurations.
• Built-in storage temporarily saves images when an alarm event occurs.
• Web browser-based monitoring and configuration without plug-ins.
• Raw thermal image data available through SDK or client software.
• Supports ONVIF Profile S and Profile T for network integration.
• Supports SDK and WEB API for secondary development.
• Smart alarms including intrusion, boundary crossing, motion detection, network disconnection, IP conflict, and storage faults.

Working Principle
The VD641N uses an uncooled VOX infrared detector to sense thermal radiation in the 8–14 μm wavelength range. The detector converts infrared radiation into electrical signals, which are processed to generate thermal images. Images and data can be displayed through a web browser or client software and transmitted over Ethernet for remote monitoring and system integration.

Technical Specifications

Item	Specification
Detector Type	Uncooled VOX detector
Resolution	640 × 480 pixels
Pixel Pitch	17 μm
NETD	≤40 mK @ F1, 300 K, 50 Hz
Frame Rate	50 Hz
Spectral Range	8–14 μm
Lens Options	Athermal 19, 25, 37, 50 mm; Motorized 75, 100, 150 mm, 25–225 mm
Digital Zoom	1–16× continuous zoom; regional magnification
Image Enhancement	Supported
Image Correction	Manual, automatic startup, and periodic correction
Image Flip	Horizontal / vertical
Pseudo-Color	14 palettes
Focus	Manual / automatic
PTZ Control	Supported
Storage	Built-in storage
Smart Alarms	Boundary crossing, intrusion, motion, network, IP, and storage alarms
Network Interface	RJ45 100/1000M adaptive Ethernet
Network Protocols	TCP/IP, IPv4/IPv6, HTTP/HTTPS, FTP, RTSP, RTP, UDP, IGMP, ICMP, ARP, SMTP, etc.
Browser / Client	Edge, Chrome, Firefox, PC client
Security	User authentication, MAC binding, HTTPS, IEEE 802.1X, IP filtering
Remote Functions	Parameter configuration, software upgrade, IP configuration
Secondary Development	SDK / WEB API
Power Supply	DC 12 V
Power Consumption	4 W
Communication Interfaces	Ethernet, RS-422
Alarm Input	1 channel
Alarm Output	1 switch output
Motor Interface	2 channels
Operating Temperature	-20 to +50°C
Storage Temperature	-40 to +70°C
Weight	190 g with 25 mm lens
Dimensions	42 × 45 × 96 mm with 25 mm lens

Applications
• Network thermal monitoring systems
• Industrial temperature and equipment monitoring
• Security and perimeter monitoring
• Fire detection and early warning
• Intelligent surveillance systems
• Thermal imaging equipment integration

Application Scenarios
• Remote thermal monitoring through Ethernet networks.
• Integration into intelligent security and surveillance systems.
• Thermal monitoring of industrial equipment and critical facilities.
• Development of customized thermal imaging systems using SDK or WEB API.

Comparison

Feature	VD641N	Conventional Thermal Imaging Module
Detector	640×480 VOX	Varies
Network Connectivity	Built-in Ethernet	May require additional module
Web Monitoring	Supported	Not always available
ONVIF	Profile S / T	Varies
Raw Thermal Data	SDK / Client output	Varies
Smart Alarms	Multiple alarm types	Basic or optional
Secondary Development	SDK / WEB API	Varies
Remote Configuration	Supported	Limited
Power Consumption	4 W	Varies

FAQ
Q1: What type of detector does the VD641N use?
A: It uses a 640×480 uncooled vanadium oxide (VOX) infrared detector with a 17 μm pixel pitch.
Q2: Can the VD641N be monitored through a web browser?
A: Yes. Images can be viewed and the module can be configured through Edge, Chrome, or Firefox without installing browser plug-ins.
Q3: Does the module support network protocols and ONVIF?
A: Yes. It supports common IP network protocols and ONVIF Profile S and Profile T for system integration.
Q4: Can raw thermal data be obtained?
A: Yes. Raw thermal image data can be obtained through the SDK or client software.
Q5: Does the VD641N support secondary development?
A: Yes. SDK and WEB API interfaces are available for customized software and system development.
Q6: What lenses are available?
A: Optional athermal fixed-focus lenses include 19, 25, 37, and 50 mm, while motorized-focus lenses include 75, 100, 150 mm, and 25–225 mm configurations.
Q7: What alarm functions are supported?
A: The module supports boundary crossing, area intrusion, motion detection, network disconnection, IP conflict, storage-full, and storage-error alarms.
