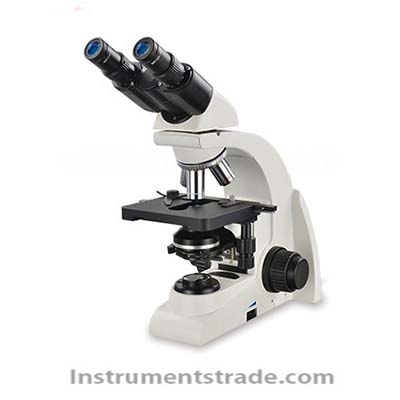

UD102i Darkfield Microscope

Product ID：GSXanshiye001

Price: Please inquire PDF Format
Supply Ability:50SETS/MON
Port:SHENZHEN
Request QuoteAdd To Cart
share:
  • Product Introduction
  • Other information
  • Model NumberUD102i
    Brand NameCQAOPU
    Payment TermsTT，PAYPAL，Alibaba.com Pay
    UD102i Darkfield Microscope
    Product Overview
    The UD102i Darkfield Microscope is a professional laboratory microscope specifically designed for high-contrast observation of transparent and semi-transparent biological specimens. Utilizing an advanced UCIS infinity-corrected optical system, it delivers exceptional image clarity, excellent chromatic aberration correction, and high-resolution imaging for microbiological research and laboratory analysis.
    Darkfield illumination enables microorganisms to appear bright against a dark background, making it easier to observe specimen outlines, movement, and fine structural details that are difficult to detect under conventional brightfield microscopy. The UD102i is particularly suitable for observing bacteria, protozoa, yeast, microorganisms, cell suspensions, and other transparent samples, providing researchers with a powerful tool for studying microbial morphology and motility.
    Designed for research laboratories, universities, hospitals, and quality control laboratories, the microscope combines professional optical performance with ergonomic operation and excellent expandability for advanced biological observation.

    Key Features
    ●UCIS infinity optical correction system delivers high-resolution images with outstanding chromatic aberration correction.
    ●Optimized for darkfield microscopy, providing excellent contrast for transparent and semi-transparent specimens.
    ●Wide-field high-eyepoint eyepieces offer a bright, flat, and comfortable viewing experience.
    ●Multiple objective lenses support different magnifications for various biological observation requirements.
    ●360° rotatable binocular viewing head with 30° inclination and adjustable diopter for ergonomic operation.
    ●Precision coaxial focusing system with fine adjustment accuracy of 0.001 mm for sharp image focusing.
    ●Double-layer mechanical stage enables smooth and accurate specimen positioning.
    ●NA 1.25 Abbe condenser enhances illumination efficiency and image quality.
    ●Adjustable halogen illumination with optional high-brightness 3W LED lighting for different observation conditions.
    ●Darkfield and phase contrast slots allow convenient switching between multiple observation methods.
    ●Modular design supports future upgrades with additional optical accessories.

    Working Principle
    Darkfield microscopy works by illuminating the specimen with light that does not directly enter the objective lens. Instead, only light scattered by the specimen reaches the imaging system, causing the specimen to appear bright against a dark background.
    This imaging method significantly improves the visibility of transparent samples that normally produce very little contrast under brightfield illumination. Fine structures such as bacterial flagella, microorganism outlines, and cellular movement become much easier to observe.
    Combined with the UCIS infinity optical system and high numerical aperture condenser, the UD102i delivers sharp, high-contrast images suitable for detailed biological and microbiological analysis.

    Technical Specifications
    Parameter Specification
    Optical System UCIS Infinity Chromatic Aberration Correction Optical System
    Observation Method Darkfield Observation
    Viewing Head Binocular, 30° inclined, 360° rotatable
    Eyepieces High-eyepoint Wide-field Plan Eyepieces
    Objectives Multiple magnification objectives available
    Stage Double-layer Mechanical Stage
    Focusing System Coaxial coarse and fine focusing
    Fine Focus Precision 0.001 mm
    Fine Focus Travel 0.1 mm per rotation
    Coarse Focus Travel 14 mm per rotation
    Stage Protection Focus stop mechanism
    Condenser NA 1.25 Abbe Condenser
    Condenser Adjustment Center-adjustable with lifting mechanism
    Observation Slots Darkfield / Phase Contrast
    Light Source 6V 20W Halogen Lamp
    Optional Light Source High-brightness 3W LED
    Power Supply 100–240V AC

    Applications
    Microbiology Research
    Observe bacteria, protozoa, yeast, algae, fungi, and other microorganisms with enhanced contrast and detail.
    Bacterial Motility Studies
    Clearly visualize bacterial flagella movement and microbial locomotion for physiological and microbiological research.
    Clinical Laboratories
    Suitable for routine biological specimen observation and laboratory analysis.
    Universities and Educational Institutions
    Ideal for microbiology teaching, laboratory demonstrations, and scientific education.
    Environmental and Water Analysis
    Used for detecting microorganisms in environmental water samples and ecological research.
    Food and Pharmaceutical Laboratories
    Applicable to microbial quality inspection, contamination analysis, and laboratory research.

    UD102i vs Conventional Biological Microscopes
    Feature UD102i Darkfield Microscope Conventional Brightfield Microscope
    Transparent Specimen Visibility Excellent Limited
    Microorganism Motility Observation Excellent Moderate
    Image Contrast Very High Standard
    Infinity Optical System Yes Optional
    Chromatic Aberration Correction Excellent Standard
    Darkfield Observation Standard Usually Not Available
    Phase Contrast Upgrade Supported Limited
    Expandability High Moderate
    Ergonomic Design Professional Standard

    Frequently Asked Questions (FAQ)
    1. What types of specimens can the UD102i observe?
    The microscope is ideal for observing bacteria, protozoa, yeast, algae, microorganisms, cell suspensions, and other transparent or semi-transparent biological specimens.
    2. Why choose a darkfield microscope instead of a brightfield microscope?
    Darkfield microscopy provides much higher contrast for transparent specimens, making fine structures and microorganism movement easier to observe without staining.
    3. Can the microscope observe bacterial flagella?
    Yes. Darkfield illumination enhances the visibility of bacterial flagella and microbial movement, making it suitable for motility studies.
    4. Is LED illumination available?
    Yes. The microscope is equipped with a 6V 20W halogen lamp and can be optionally configured with a high-brightness 3W LED light source.
    5. Can the microscope be upgraded?
    Yes. The modular design supports additional accessories and optical components for advanced research applications.
    6. Which industries commonly use the UD102i?
    It is widely used in microbiology laboratories, hospitals, universities, research institutes, environmental laboratories, food testing laboratories, and pharmaceutical quality control.

    Product Category: Biological Microscope | Darkfield Microscope | Laboratory Microscope | Microbiology Microscope | Research Microscope
