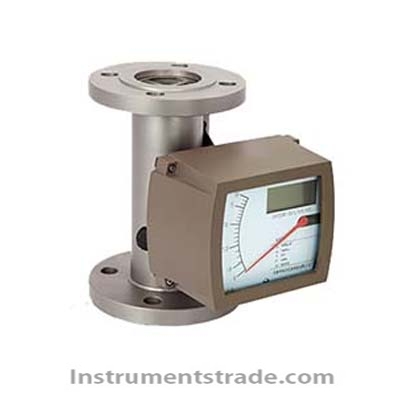

TY-60JF Metal Tube Float Flow Meter

Product Introduction
The TY-60JF Metal Tube Float Flow Meter is an industrial variable area flow meter designed for continuous measurement of liquid and gas volumetric flow in closed pipelines. Its robust metal tube construction provides reliable operation across a wide range of temperatures and industrial conditions.
With a low measurement threshold, high repeatability, and multiple connection and installation configurations, the TY-60JF is suitable for measuring small and large flow rates in process systems. Optional PTFE or F46 fluoroplastic lining improves compatibility with corrosive media, while intelligent local indication provides convenient on-site flow monitoring.
The flow meter is widely applicable in chemical processing, petroleum, metallurgy, power generation, environmental protection, pharmaceuticals, and other industrial sectors.

Performance Features
1. Variable area measurement: Measures volumetric flow continuously using a float moving within a tapered measuring tube.
2.Low-flow capability: Supports measurement of small flow rates for applications requiring sensitive flow monitoring.
3.Rugged metal construction: Provides reliable mechanical strength for industrial operating environments.
4.High repeatability: Delivers consistent measurement results under stable operating conditions.
5. Corrosion-resistant options: Supports stainless steel construction and optional PTFE or F46 fluoroplastic lining.
6.Wide temperature range: Offers standard, high-temperature, and lined configurations for different media and operating conditions.
7. Multiple installation orientations: Supports bottom-to-top, left-to-right, and bottom-to-side flow arrangements.
8. Flexible connections: Available with flange, threaded, or clamp connections, depending on configuration.
9. Local indication: Enables operators to read flow measurements directly at the installation site.
10.Optional hazardous-area protection: Intrinsically safe and flameproof configurations are specified for suitable industrial applications.
11. Flexible power supply: Intelligent versions can use a 3.6 V lithium battery or a 24 V DC supply, according to configuration.
12. Industrial versatility: Suitable for a broad range of liquid and gas flow measurement applications.

Working Principle
The TY-60JF operates on the variable area principle, also known as the rotameter measurement principle.
The process fluid flows through a vertically oriented tapered measuring tube, lifting a float until the upward force of the flowing medium balances the float's effective weight. As the flow rate increases, the float rises and the annular flow area between the float and tube wall increases.
The float position corresponds to the volumetric flow rate and is displayed by the instrument's indication system. The design provides continuous local flow monitoring without requiring a conventional differential-pressure transmitter.
Accurate measurement depends on correct installation, fluid properties, operating pressure, temperature, and selection of the appropriate calibrated range.

Technical Parameters

Parameter	Specification
Model	TY-60JF
Product Type	Metal Tube Float Flow Meter / Rotameter
Measurement Principle	Variable area
Measured Variables	Liquid and gas volumetric flow
Water Flow Range	2.5–100,000 L/h
Air Flow Range	0.07–3,000 m³/h
Rangeability	10:1 and 5:1, depending on configuration
Standard Accuracy Class	Class 1.5
Optional Accuracy Class	Class 1.0 by special order
Maximum Working Pressure	DN15, DN25, DN40, DN50: up to 4.0 MPa
Maximum Working Pressure for Larger Sizes	DN80, DN100, DN150: up to 1.6 MPa
Standard Medium Temperature	−40°C to +100°C
High-Temperature Configuration	−80°C to +250°C, as specified in the source; confirm the applicable model configuration
F46-Lined Temperature	−40°C to +80°C
PTFE-Lined Temperature	−40°C to +120°C
Ambient Temperature, Pointer Version	−40°C to +65°C
Ambient Temperature, Intelligent Version	−25°C to +65°C
Connection Options	Flange, threaded, clamp
Electrical Interface	M20 × 1.5; other options available by request
Protection Rating	IP65
Intrinsic Safety Rating	Ex ib IIC T4 with compatible LB987S safety barrier
Flameproof Rating	Ex d IIB T4
Medium Viscosity	≤5 mPa·s for DN15–DN150, as specified
Battery Power	One 3.6 V lithium battery; approximately one year of operation
External Power Supply	24 V DC, ripple ≤5%
Measuring Tube Materials	304 stainless steel, 316 stainless steel, or compatible lined construction
Float Materials	304 or 316 stainless steel, PTFE, or F46

Note: The source contains an ambiguous rangeability specification and a potentially configuration-dependent high-temperature rating. Confirm the nominal diameter, calibrated flow range, lining material, pressure rating, and temperature limits before ordering.

Application Scenarios
• Chemical processing: Measures compatible liquid and gas flows in chemical production and process pipelines.
• Petroleum and oil processing: Monitors process fluids in refining and related industrial systems.
• Metallurgy and power generation: Supports flow measurement in utility and industrial process equipment.
• Environmental protection: Monitors liquid and gas flows in environmental treatment systems.
• Pharmaceutical manufacturing: Measures compatible process fluids in pharmaceutical production and supporting utilities.
• Light industry: Provides flow monitoring for manufacturing and process control applications.
•Corrosive fluid measurement: Uses suitable PTFE- or F46-lined configurations where the medium is compatible with the selected lining.
• Gas flow monitoring: Measures air and other compatible gases within the selected instrument's calibrated range.

TY-60JF vs. Conventional Flow Meters

Comparison Item	TY-60JF Metal Tube Rotameter	Conventional Variable Area Meter
Measuring Tube	Robust metal construction	May use metal or transparent materials
Measurement Principle	Variable area	Variable area
Media	Liquids and gases	Depends on design
Low-Flow Measurement	Supports low-flow applications	Depends on calibrated range
Corrosion Resistance	Optional PTFE or F46 lining	Depends on wetted materials
Temperature Options	Standard, high-temperature, and lined versions	Depends on model
Installation	Multiple flow-direction configurations	Depends on design
Process Connections	Flange, threaded, or clamp	Depends on model
Local Indication	Available	Depends on configuration
Hazardous-Area Options	Specified intrinsically safe and flameproof versions	Depends on certification and configuration

Frequently Asked Questions
1. What is the TY-60JF Metal Tube Float Flow Meter used for?
It measures the volumetric flow of liquids and gases in closed pipelines and is suitable for industrial process monitoring and flow control.
2. What is the measurement principle of the TY-60JF?
It uses the variable area principle. The float moves within a tapered measuring tube in response to flow, and its position indicates the flow rate.
3. What are the available flow ranges?
The listed water flow range is 2.5–100,000 L/h, while the air flow range is 0.07–3,000 m³/h. The available range depends on nominal diameter and calibration.
4. Can the TY-60JF measure corrosive liquids?
Yes, when supplied with a suitable PTFE or F46 lining and compatible wetted materials. Chemical compatibility, temperature, and pressure limits must be checked for the specific medium.
5. What is the maximum operating pressure?
The specified maximum is up to 4.0 MPa for certain smaller nominal diameters and up to 1.6 MPa for DN80, DN100, and DN150 configurations. Confirm the exact rating for the selected model.
6. What is the operating temperature range?
The standard version is listed for −40°C to +100°C. High-temperature and lined versions have different limits, so the exact configuration must be verified before use.
7. What power supply options are available?
The intelligent version supports a 3.6 V lithium battery with an indicated service life of approximately one year or a 24 V DC external supply, depending on configuration.
8. Is the TY-60JF suitable for hazardous areas?
The specifications list an intrinsic safety option of Ex ib IIC T4 when used with a compatible LB987S safety barrier and a flameproof option of Ex d IIB T4. Confirm the exact certification and installation requirements for the supplied unit.
9. What connection types are available?
The flow meter can be configured with flange, threaded, or clamp connections. The appropriate connection depends on the pipeline and process requirements.
