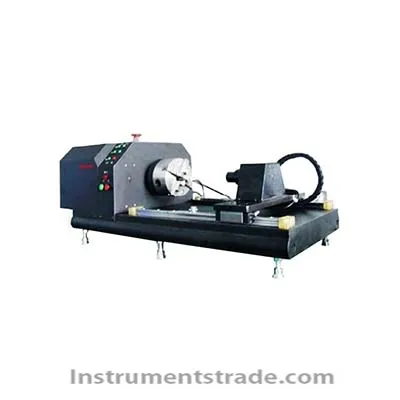

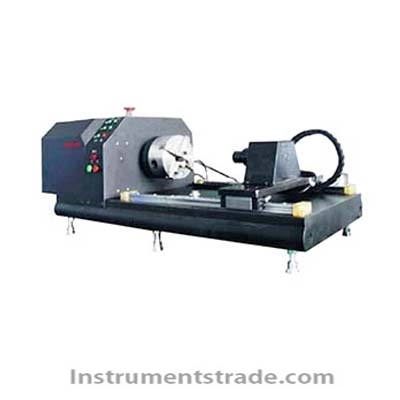

TTM201 bone screw special torsion testing machine

Product ID:WSHnw004

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTTM201
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Used for metal bone screw twist performance test experiment. Measurement of metal bone screw maximum breaking torque and torsional Angle of fracture.
    Meet the following criteria;
    Inspection standard: JJG269-2006 "torsion testing machine"
    Test method: YY0018-2008 "joint bone implants Metal bone screw"
    YY/T0662-2008 "surgical implants Under the asymmetrical thread and spherical surface metal of metal bone screw mechanical performance requirements and test methods"
    ISO 6475:6475 "Implants for surgery - Metal ipads screws with asymmetrical thread
    Features:
    1. The servo motor driver, ensure the reverse speed constancy;
    2. The cycloidal reducer drive, ensure the transmission of high efficiency and stability;
    3. High electrical control system stability and stable and reliable operation, quick response, low noise, adjustment of parameters according to different models, make the equipment running in the best condition;
    4. Has perfect safety protection functions such as overload protection, abrupt stop.
    5. All the test software of Chinese Windows platform, has strong data and graphics functions, can be printed out immediately the complete test reports and test curve.
    6. With torsional strength and torsional Angle of automatic tracking measurement and loading rate and peak instructions and other functions;
    Technical indicators:
    The maximum torque: 20 N.m
    Torque measuring range: 1 ~ 100%
    Level of testing machine: 0.5 on the Richter scale are unlikely
    Torque value relative error: plus or minus 0.5%
    Torque resolution: 0.0001 N, m
    Torsion Angle measuring range: 0 ° ~ 10000 °
    Torsion Angle relative error value: plus or minus 1.0%
    Reverse speed: 360 ° ~ 1800 ° / min
    Chuck: the maximum distance between 300 mm
    Power: 100 w
    Power: 220 v + 20 v
    Machine weight: 100 kg

  • Brief introduction:
    Used for metal bone screw twist performance test experiment. Measurement of metal bone screw maximum breaking torque and torsional Angle of fracture.
    Meet the following criteria;
    Inspection standard: JJG269-2006 "torsion testing machine"
    Test method: YY0018-2008 "joint bone implants Metal bone screw"
