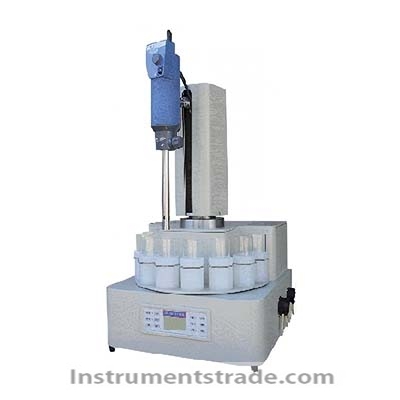

TTL-260 Fully Automatic Homogenizer

Position: Home > > Lab general equipment > Mixing / dispersing equipment > Homogeneous / emulsification > TTL-260 Fully Automatic Homogenizer

TTL-260 Fully Automatic Homogenizer

Product ID：SYHHFSjrh003

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTTL-260

Brand NameBJTONGTAILIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

TTL-260 Fully Automatic Homogenizer for Food Safety and Biological Sample Preparation

Product Overview
The TTL-260 Fully Automatic Homogenizer is designed for automated sample preparation in food safety, biotechnology, biopharmaceutical, agricultural, veterinary, and feed analysis. It is suitable for homogenizing samples such as agricultural and livestock products, food, fish and meat, feed, pesticides, and veterinary drug residues.
The system integrates sample homogenization and cutter-head cleaning into an automated workflow. Each homogenizing head has an independent cleaning tank to help minimize cross-contamination between samples. Programmable processing and cleaning procedures improve consistency, reduce manual operation, and increase laboratory sample preparation efficiency.

Key Features
• Supports a wide sample container range from 10 mL to 175 mL for different sample preparation requirements.
• Microcomputer-controlled automation covers the homogenization and cutter-head cleaning processes.
• Independent cleaning tank for each homogenizing head helps reduce cross-contamination between samples.
• Multiple standard programs and customizable programs allow users to define different processing workflows.
• Cutter head moves vertically during homogenization to improve sample processing efficiency.
• Automatic cleaning supports running water, organic solvents, and high-power ultrasonic cleaning modes.
• Programmable sample quantity, cleaning cycles, batch cycles, and pipeline cleaning for streamlined operation.
• LCD display provides Chinese-language operation, process status, remaining time, and fault information.
• Ultrasonic cleaning includes water-shortage protection and warning functions.
• Optional protective cover provides a more enclosed sample processing environment.

Working Principle
The TTL-260 homogenizes samples using a motor-driven dispersing/homogenizing head. During processing, the cutter head rotates while moving vertically within the sample, improving contact between the sample and homogenizing head and promoting more uniform sample preparation.
After homogenization, the instrument can automatically execute a programmed cleaning procedure. The independent cleaning tank allows the cutter head to be cleaned between samples using running water, organic solvents, or ultrasonic cleaning, depending on the selected workflow.
The microcomputer-controlled system coordinates homogenization, cleaning, batch processing, and process monitoring, helping reduce operator-to-operator differences in sample pretreatment.

Technical Specifications

Parameter	Specification
Product Type	TTL-260 Fully Automatic Homogenizer
Processing Mode	Single channel
Homogenizing Unit	1 dispersing/homogenizing unit
Sample Container Range	10–175 mL
Control System	Microcomputer controlled
Display	LCD
Operation Language	Chinese
Homogenization	Programmable automatic processing
Cutter Head Movement	Vertical reciprocating movement during homogenization
Cleaning Modes	Running water, organic solvent, ultrasonic cleaning
Cleaning Tank	Independent tank for each cutter head
Sample Quantity Setting	Programmable
Automatic Cleaning Program	Programmable
Batch Cycle Setting	One-touch selection
Pipeline Cleaning	One-touch cleaning function
Ultrasonic Protection	Water-shortage protection and warning
Pump	External peristaltic pump head
Peristaltic Tubing	High-quality tubing
Protective Cover	Optional

Sample Capacity

Container	Standard Capacity	Optional Capacity
175 mL Dedicated Beaker	8 per batch	—
100 mL Round-Bottom Screw-Cap Tube	8 per batch	—
50 mL Round-Bottom Screw-Cap Tube	8 per batch	12 per batch
10/15 mL Round-Bottom Screw-Cap Tube	8 per batch	16 per batch

Applications
The TTL-260 is suitable for automated sample pretreatment in:
• Food safety and food quality testing
• Biotechnology and biopharmaceutical laboratories
• Agricultural and livestock product analysis
• Fish and meat sample preparation
• Feed analysis
• Pesticide residue testing
• Veterinary drug residue testing
• Pharmaceutical and biological research
• Quality and functional indicator testing

Applicable Standards
The TTL-260 is designed as an automated sample homogenization and pretreatment system. Applicable testing standards should be selected according to the sample type and analytical method, particularly for food safety, pesticide residue, veterinary drug residue, pharmaceutical, and biological testing.

Comparison

Feature	TTL-260 Automatic Homogenizer	Manual Homogenizer	Conventional Laboratory Homogenizer
Homogenization	Automatic	Manual	Usually automatic
Cutter Head Cleaning	Automatic	Manual	Model dependent
Independent Cleaning Tank	Yes	No	Model dependent
Cross-Contamination Control	Designed for reduced cross-contamination	Operator dependent	Model dependent
Programmable Workflow	Yes	No	Usually limited
Batch Cycle Setting	Yes	No	Model dependent
Automatic Pipeline Cleaning	Yes	No	Usually unavailable
Ultrasonic Cleaning	Supported	Manual	Model dependent
Sample Container Range	10–175 mL	Flexible	Model dependent
Multiple Sample Containers	Yes	Yes	Model dependent
Process Monitoring	LCD display	Manual observation	Usually available
Sample Pretreatment Consistency	High	Operator dependent	Moderate to high

FAQ
Q1: What types of samples can the TTL-260 homogenize?
A: It is suitable for food, agricultural and livestock products, fish and meat, feed, biological samples, and samples associated with pesticide or veterinary drug residue testing.
Q2: What sample container sizes are supported?
A: The system supports sample containers from 10 mL to 175 mL, including 10/15 mL, 50 mL, 100 mL, and 175 mL configurations.
Q3: How many samples can be processed in one batch?
A: Standard configurations provide 8 samples per batch for 175 mL beakers, 100 mL tubes, 50 mL tubes, and 10/15 mL tubes. Optional configurations increase the capacity to 12 × 50 mL or 16 × 10/15 mL tubes.
Q4: How does the TTL-260 help prevent cross-contamination?
A: Each homogenizing head is equipped with an independent cleaning tank, allowing the cutter head to be automatically cleaned between samples.
Q5: What cleaning methods are available?
A: The system supports cleaning with running water, organic solvents, and high-power ultrasonic cleaning, depending on the selected procedure.
Q6: Can the homogenization and cleaning procedures be programmed?
A: Yes. Users can select standard programs or create customized workflows, including sample quantity, homogenization steps, cleaning procedures, and batch cycle settings.
Q7: Does the cutter head move during homogenization?
A: Yes. The cutter head moves vertically while homogenizing to enhance contact with the sample and improve the homogenization effect.
Q8: Is the TTL-260 suitable for high-throughput sample preparation?
A: Yes. Automated processing, programmable batch cycles, and automatic cutter-head cleaning make it suitable for repetitive sample pretreatment and routine laboratory testing.

Introduction:
Fully automatic homogenizer TTL-260 is suitable for use in homogenizers in food safety and biomedical applications. It is used in biotechnology, agricultural and livestock products, food, fish, feed, pesticides, and veterinary drug residues. Pre-processing areas for quality and functional index testing. TTL series automatic homogenizer, equipped with independent cleaning pool, can effectively avoid cross-contamination between samples during the process; from homogenizing the sample to cleaning the cutter head, all are automatically completed by the instrument, greatly improving the pre-sample Processing efficiency. In addition to saving a lot of manpower, it also eliminates the artificial operator's difference, so that the process of sample pretreatment becomes efficient, consistent, simple and accurate.
