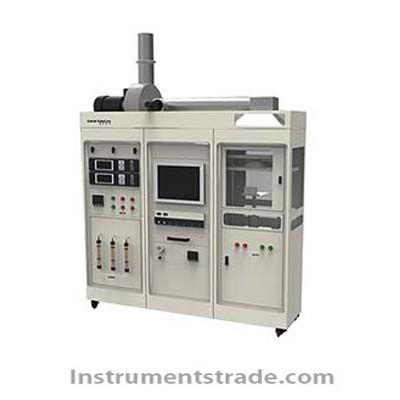

TTech - GBT16172 cone calorimeter for Material Fire Properties

Product ID:WRzx003

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTTech - GBT16172
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Heat release is the core of assessment materials and products fire feature parameter measurement. CAN meet all existing standard cone calorimeter (including ISO 5660, ASTM E 5660, ASTM E 1474, ASTM E 1740, ASTM F 1550, ASTM D 6113, NFPA 264, CAN ULC part 15 135 and BS 476), also CAN buy parts form, this lab if you need any specific test, such as the production of heat release, mass loss, smoke, etc., CAN buy the first parts, then gradually add other testing instruments to the same box, instrument become complete specifications. The flexible characteristic is one of the many advantages of cone calorimeter.
    The cone calorimeter test theory is based on pure burning calories is proportional to the amount of oxygen combustion, per 1 kg of oxygen combustion will produce 13.1 MJ/kg gas, thermal test gas, ignition time, oxygen consumption rate, CO, CO2 formation rate, gas flow will be measured.
    Technical features:
    1. 19-inch standard rack integration design, beautiful and easy, easy to operate
    2. - in truncated cone, cone heater 230 v, 5000 w, heat output is 0 ~ 120 kW/m2
    3. The 19 "touch screen of the computer control the whole test process
    4. Automatic ignition system, automatic measuring burning time
    5. A K type thermocouple and 3 phase PID temperature controller for temperature control
    6. Automatic division ram - protect samples before test area, ensure the quality of the initial measurement stability, the operator can have extra time before the beginning of the test test system. For the sample of the flammable, without opening closing mechanism, it is easy to burn too early. This extra time is very important for the operator
    7. Sample holder - sample size is 100 mm x 100 mm, thickness is less than 50 mm;
    8.10 kV spark ignition, equipped with safety device cease-fire. Igniter by connecting lever to close the mechanism for automatic positioning
    9. The automatic ignition system; Automatic timing; Automatic expiration blowout;
    10. By axial flow fan, exhaust pipe, stainless steel, collect smoke cover, exhaust diffuser, orifice flow meter and a thermometer;
    11. Stainless steel, prolong life. Including cover, gas samples needle, fan
    12. Including ring sampler, getter pump, particle filter, cold trap, exhaust valve, water filter and filter of CO2
    13. Level 3 filters; The filtering precision is 0.5 um
    14. The freezing cold trap; Air conditioning refrigeration system; Control the temperature of 0 ~ 5 ℃
    15. The sampler has 12 holes and air flow in the opposite direction; Built-in dust filter; Is apart from the collection of hood 685 mm;
    16. Paramagnetic oxygen analyzer, range 0-25%; Import the shi fu mei oxygen sensor; Linear response;
    17. The smoke density were measured with a laser system,
    18. Through the testing process of high precision bearing sensor to try material weight change is measured.
    19. The temperature control system: PID temperature control, measure radiation cone temperature thermocouple 3 teams,
