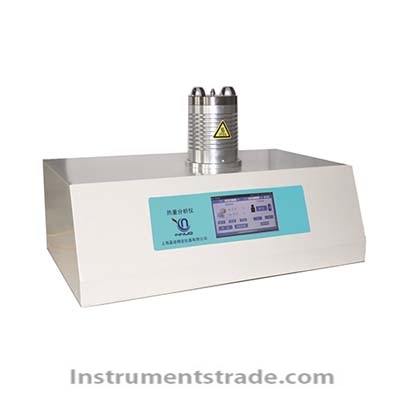

TGA1250B Thermogravimetric Analyzer (TGA)

Position: Home > > Physical property test > Thermal analysis instrument > Thermogravimetric analyzer > TGA1250B Thermogravimetric Analyzer (TGA)

TGA1250B Thermogravimetric Analyzer (TGA)

Product ID：WLrz011

Price: US$7,980.00 ~ US$18,980.00 PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTGA1250

Brand NameSHYINGNUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

TGA1250B Thermogravimetric Analyzer (TGA)
The TGA1250B Thermogravimetric Analyzer is a high-precision thermal analysis instrument designed for advanced material research, quality control, and decomposition studies. With a maximum temperature of 1250°C, ultra-sensitive 0.01 mg resolution, and intelligent PID control system, it delivers stable and accurate thermogravimetric analysis for a wide range of industrial and laboratory applications.
This advanced TGA system integrates dual gas control, automated programming, and a rigid mechanical structure to ensure long-term reliability and measurement accuracy.

Product Overview
The TGA1250B operates based on continuous monitoring of sample mass changes under controlled temperature conditions. It is widely used for studying thermal stability, composition analysis, oxidation behavior, and material decomposition.
Its compact furnace structure, water bath insulation system, and electromagnetic balance weighing system ensure high accuracy even under extreme thermal conditions.

Key Features
• Industrial-grade wide-screen touch interface with real-time display of temperature, sample mass, and system status
• High-speed Gigabit Ethernet communication, stable and self-recovering connection
• Compact furnace design with adjustable heating and cooling rates
• Water bath thermal isolation to eliminate furnace heat interference on balance system
• Modular mechanical structure for easy maintenance and flexible sample configuration
• Dual gas flow system (Nitrogen/Oxygen) with automatic switching
• Sample temperature correction capability for higher accuracy
• Adaptive software compatible with WIN7/WIN10, laptops and desktops
• Programmable automation system supporting multi-step experimental workflows
• Fixed integrated furnace design for safer operation
• Detachable sample holder for easy cleaning and replacement
• Electromagnetic force balance weighing system (bottom-pan structure)

Working Principle
The TGA1250B Thermogravimetric Analyzer works by continuously measuring the mass change of a sample as it is heated under a controlled atmosphere.
• The sample is placed in a precision crucible.
• The furnace heats according to a programmed temperature profile.
• As temperature increases, the sample undergoes physical or chemical changes (decomposition, oxidation, volatilization).
• he high-precision electromagnetic balance detects real-time weight loss.
• Data is transmitted via Ethernet to analysis software for curve plotting and interpretation.
This enables accurate determination of thermal decomposition points, moisture content, and compositional changes.

Technical Parameters

Parameter	Specification
Temperature Range	RT ~ 1250°C
Temperature Resolution	0.01°C
Temperature Stability	±0.1°C
Heating Rate	0.1 ~ 80°C/min
Cooling Rate	0.1 ~ 30°C/min (above 100°C, constant rate cooling)
Temperature Control	PID control system
Balance Range	0.01 mg ~ 2 g
Thermogravimetric Resolution	0.01 mg
Isothermal Time	0 ~ 300 min (recommended <30 min above 1000°C)
Gas Control	N₂ / O₂ dual gas automatic switching
Communication Interface	Gigabit Ethernet
Power Supply	AC 220V, 50/60Hz (customizable)
Crucible Size	10 mm × 6 mm (H × D)
Heating Power	1000 W
Dimensions	70 × 44 × 42 cm
Weight	50 kg (net), 65 kg (packed)
Sensors & Chips	Fully imported high-precision components

Optional Accessories:
Curie point magnet testing module
Calibration standards: 153°C, 358°C, 772°C, 1131°C (non-metrological standard)

Application Areas
The TGA1250B Thermogravimetric Analyzer is widely used in:
• Polymer and plastic thermal stability testing
• Chemical decomposition analysis
• Pharmaceutical material research
• Battery and energy material evaluation
• Metal oxidation and corrosion studies
• Coal, petroleum, and fuel analysis
• Quality control in manufacturing industries
• Academic research and laboratory studies

Comparison with Conventional TGA Systems

Feature	TGA1250B	Conventional TGA
Temperature Range	Up to 1250°C	Typically ≤1000°C
Balance Resolution	0.01 mg	0.1 mg
Gas Control	Automatic dual gas switching	Manual or single gas
Communication	Gigabit Ethernet	USB/legacy ports
Software	Programmable automation system	Basic control software
Furnace Structure	Fixed integrated design	Movable furnace system
Thermal Isolation	Water bath insulation	Limited insulation

FAQ
Q1: What is the maximum temperature of the TGA1250B?
A: It can reach up to 1250°C, suitable for high-temperature material analysis.
Q2: What gases can be used in the system?
A: The system supports nitrogen and oxygen, with automatic switching.
Q3: What is the weighing accuracy?
A: The thermogravimetric resolution is 0.01 mg.
Q4: Is the software compatible with modern computers?
A: Yes, it supports Windows 7 and Windows 10, both laptops and desktops.
Q5: Can the instrument run automated experiments?
A: Yes, it supports full programmable automation with multi-step control.
Q6: What industries commonly use this TGA system?
A: It is widely used in materials science, polymers, chemistry, pharmaceuticals, and energy research.

Conclusion
The TGA1250B Thermogravimetric Analyzer combines high-temperature capability, ultra-sensitive weighing, dual gas control, and intelligent automation. It is an advanced solution for precise thermogravimetric analysis (TGA) in both research and industrial environments, ensuring high reliability and data accuracy for modern material characterization needs.
