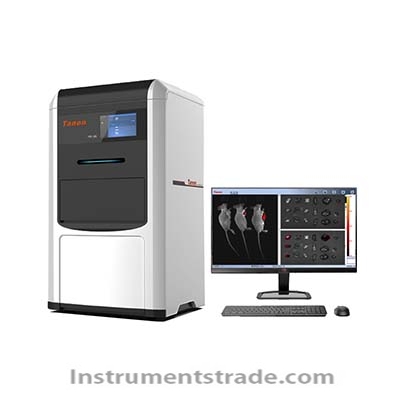

Tanon ABL-X6 In Vivo Animal Imaging System

Product ID：SHCXhtcx005

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberTanon ABL-X6

Brand NameSHTIANNENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

Tanon ABL-X6 In Vivo Animal Imaging System
Introduction:
The Tanon ABL-X6 series small animal in vivo imaging system integrates internationally advanced research-grade ultra-high sensitivity cooled cameras, high-power narrow-band LED excitation light sources, and automated control technology. It has undergone optimized design in terms of sample stage, light source control, and chassis shell based on traditional designs, providing researchers with a simple, convenient, intelligent, and more scientific tool for small animal in vivo functional research. The application areas of the ABL-X series in vivo imaging system include oncology, drug development, antibody research, nanomaterials, inflammation, immune diseases, gene therapy, cell apoptosis, quantum dot labeling, and other fields
For example, in vivo imaging technology allows for direct and rapid observation of tumor growth, metastasis, and response to drugs in various cancer models; long-term tracking of disease response to drugs; and tracing the trajectory of nanomedicines within the body
Features:
1. Ultra-high sensitivity imaging
A scientific-grade deep-cooling high-sensitivity camera with enhanced light-sensing efficiency
Equipped with an F0.85 ultra-large aperture automatic lens, it boasts higher sensitivity and can capture faint luminescence and fluorescence
2. High-definition optical path system
Up to 10 million pixel resolution lens, providing better imaging details
The optical path design of the back-illuminated filter reduces background interference, resulting in clearer target signals
3. Touch screen
The embedded touch screen on the front of the machine body makes sample platform operation more convenient and allows for simultaneous display of the instrument's working status
4. Fully automatic multi-functional constant temperature life chamber
The polymer's low-energy consumption constant temperature mode effectively reduces the mortality rate of mice caused by hypothermia
Fully automatic elevating anesthesia platform, convenient for experiments involving 1-5 mice
The uniquely designed multi-channel fluorescence excitation light source effectively reduces experimental errors
5. Automated sample feeding platform
The sample platform can be horizontally moved in and out electrically, enhancing the convenience of operation
6. More flexible shooting perspective options
The Tanon ABL series in vivo imaging system is equipped with an automatic positioning lifting platform, which can meet the imaging needs of 1-5 mice with simple operation. It can also accommodate samples in 96-well plates, petri dishes, and other in vitro imaging requirements
Technical Specifications:

camera	Imported with original packaging, scientific-grade deep cooling CCD camera
pixel matrix	E2V back-illuminated CCD chip, 1024×1024
quantum efficiency	96%
electric lens	F0.85 electric lens, with adjustable focal length and aperture
Specifications	X6	X6 PRO
chemiluminescence	√	√
Bioluminescence	√	√
Visible light fluorescence	√	√
Near-infrared fluorescence	√	√
Gas anesthesia system	-	√
X-ray module	optional	optional
excitation light source	Visible fluorescence, near-infrared	Visible fluorescence, near-infrared
