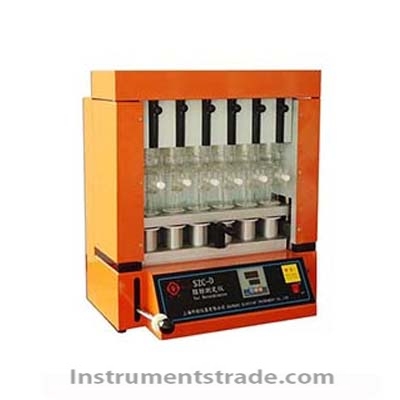

SZC-D Fat Analyzer
Product Overview
The SZC-D Fat Analyzer is a Soxhlet extraction-based instrument designed for the determination of crude fat content by solvent extraction and gravimetric analysis. It integrates soaking, extraction, heating, condensation and solvent recovery into one automated system.
The instrument adopts a fully enclosed electric heating system with automatic temperature control, providing uniform heating and reliable operation. The temperature can be adjusted according to the boiling point of the selected solvent and ambient conditions, helping shorten extraction time and improve testing efficiency.
The SZC-D can process 6 samples simultaneously. Its enclosed design helps prevent solvent leakage and reduces the release of laboratory waste. The solvent recovery function also allows solvents to be collected and reused, helping reduce operating costs.

Key Features
• Soxhlet extraction principle: Uses solvent extraction combined with gravimetric determination for crude fat analysis.
• Integrated extraction process: Soaking, extraction, heating, condensation and solvent recovery are integrated into one system.
• Six-sample capacity: Allows up to 6 samples to be tested simultaneously for improved laboratory efficiency.
• Fully enclosed electric heating: Uses a fully enclosed aluminum alloy heating plate for uniform and stable heating.
• Wide temperature adjustment: Temperature can be continuously adjusted from room temperature to 200°C.
• Automatic temperature control: Digital temperature display and automatic temperature regulation provide precise thermal control.
• Automatic solvent recovery: Recovers extraction solvent for reuse and helps reduce reagent consumption.
• Timed operation: Built-in timing function and end-of-cycle alarm simplify unattended operation.
• Reliable sealing: PTFE sealing components provide good resistance to chemical solvents and help minimize solvent leakage.
• Enhanced safety: The electrical control system uses contactless control and a fully enclosed design.
• High recovery efficiency: Solvent recovery can reach ≥80%, while the specified extraction recovery rate can reach ≥99% under defined conditions.
• Good reproducibility: Designed to provide stable performance, convenient operation and consistent analytical results.

Working Principle
The SZC-D Fat Analyzer uses the Soxhlet extraction method combined with gravimetric determination.
A prepared sample is placed in an extraction vessel and contacted with an appropriate organic solvent. The solvent is heated and vaporized, then condensed and returned to the sample to repeatedly extract fat-soluble components.
During the extraction process, the system integrates soaking, continuous extraction, heating, condensation and solvent recovery. After extraction, the solvent is removed or recovered, leaving the extracted fat residue.
The fat content is determined gravimetrically according to the mass of the extracted residue relative to the original sample mass.
The heating temperature can be adjusted according to the boiling point of the extraction solvent and laboratory conditions, allowing users to optimize the extraction process.

Technical Specifications

Item	Specification
Product Model	SZC-D
Measurement Principle	Soxhlet extraction and gravimetric determination
Sample Capacity	6 samples simultaneously
Measurement Range	Crude fat content ≥0.5%
Applicable Samples	Grain, food, feed, oilseeds and various oil products
Power Supply	220 V ±10%, 50 Hz
Power Consumption	500 W
Temperature Range	Room temperature to 200°C
Temperature Adjustment	Continuously adjustable
Temperature Control Accuracy	±1°C
Solvent Recovery Rate	≥80%
Extraction Recovery Rate	≥99%
Accuracy	Relative difference ≤3%
Parallel Difference	≤0.3%
Heating Method	Fully enclosed aluminum alloy electric heating plate
Sealing Method	PTFE sealing
Reflux Rate	120 drops/min
Cooling Water Temperature	≤30°C
Dimensions	590 × 390 × 625 mm
Weight	25 kg
Timing Function	Yes
End-of-Test Alarm	Yes
Automatic Solvent Recovery	Yes

Measurement Range
The SZC-D is suitable for determination of crude fat content ≥0.5% in:
• Grain
• Food products
• Animal feed
• Oilseeds
• Edible and industrial oil products
• Other solid samples requiring Soxhlet-based crude fat extraction

Applications
The SZC-D Fat Analyzer is suitable for laboratories involved in food, agricultural and feed analysis, including:
• Food quality testing laboratories
• Grain and oil testing laboratories
• Feed testing laboratories
• Agricultural product analysis
• Food processing enterprises
• Oil and fat production and quality control
• Research and educational laboratories
• Quality inspection institutions

Application Scenarios
Food Fat Content Analysis
Used to determine crude fat content in food samples for quality control, product development and laboratory analysis.
Grain and Oilseed Testing
Suitable for analyzing fat content in grain, oilseeds and agricultural products.
Feed Analysis
Can be used to determine crude fat content in animal feed and feed ingredients.
Oil Product Analysis
Suitable for the analysis of various oil-containing products requiring solvent extraction and gravimetric determination.
Laboratory Quality Control
The six-sample configuration, automatic temperature control and solvent recovery functions improve laboratory testing efficiency and reproducibility.

SZC-D vs. Conventional Manual Soxhlet Extraction

Feature	SZC-D Fat Analyzer	Conventional Manual Extraction
Extraction Principle	Soxhlet extraction	Soxhlet or manual solvent extraction
Sample Capacity	6 samples simultaneously	Usually lower or more operator-dependent
Temperature Control	Automatic digital control	Manual or less automated
Temperature Range	Room temperature–200°C	Depends on heating equipment
Solvent Recovery	Automatic	Usually requires additional operation
Timing	Automatic timing	Manual timing
End-of-Test Alarm	Available	Usually unavailable
Heating	Fully enclosed aluminum alloy heating plate	Conventional heating system
Sealing	PTFE sealing	Depends on setup
Operation	Integrated and simplified	More manual procedures
Laboratory Efficiency	High	Relatively lower

FAQ
What is the measurement principle of the SZC-D Fat Analyzer?
The SZC-D uses the Soxhlet extraction method combined with gravimetric determination. Fat-soluble components are extracted with an appropriate solvent and the extracted residue is determined by weighing.
How many samples can the SZC-D test at the same time?
The instrument can test 6 samples simultaneously, making it suitable for laboratories requiring batch analysis.
What is the temperature range?
The temperature can be adjusted from room temperature to 200°C, with a temperature control accuracy of ±1°C.
What samples can be tested with the SZC-D?
It is suitable for samples including grain, food, feed, oilseeds and various oil-containing products with a crude fat content of ≥0.5%.
Does the SZC-D recover extraction solvent?
Yes. The instrument integrates an automatic solvent recovery function, with a specified solvent recovery rate of ≥80%. Recovered solvent can potentially be reused according to laboratory procedures and solvent requirements.
Is the instrument fully enclosed?
Yes. The SZC-D uses a fully enclosed electric heating system and PTFE sealing structure to improve operational safety and reduce solvent leakage.
Does the instrument have automatic temperature control?
Yes. It features automatic digital temperature control with a temperature control accuracy of ±1°C.
Does it have a timing function?
Yes. The SZC-D includes a timer and an automatic end-of-operation alarm.
What is the extraction recovery rate?
Under the specified operating conditions of a reflux rate of 120 drops/min and cooling water temperature of ≤30°C, the stated recovery rate is ≥99%.
