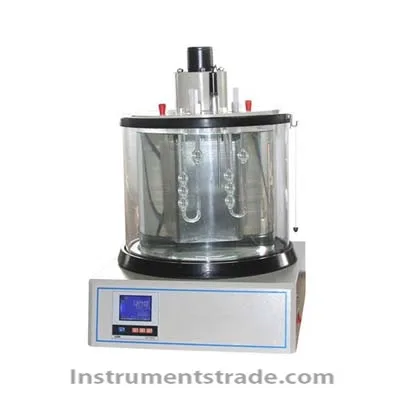

Introduction Is suitable for the determination of kinematic viscosity of asphalt sample under specified temperature, can also be applied to determination of polyethylene, polypropylene ten hydrogen naphthalene solution viscosity under specified temperature. Features 1. With high precision temperature control, digital display instrument, electric device, temperature control accuracy of plus or minus 0.1 ℃. 2. The use of high temperature resistant, hard glass and thermal insulation coat cylinder (called a duplex), heat preservation performance is good, clear sample observation. 3. Adopts desktop, all-in-one design method, instrument integral sex is good, easy to use. 4. The instrument of constant temperature bath the highest heating temperature is 180 ℃. Technical parameter 1. Working power supply: AC (220 + / - 10%) V, 50 hz. 2. Bath heating power: 1700 w. 3. Bath temperature: room temperature 180.0 ℃. 4. Oil bath temperature control precision: plus or minus 0.1 ℃. 5. Mercury thermometer: rod type, (100 ~ 150 ℃), dividing the value of 0.1 ℃, Rod type, (150 ~ 200 ℃), dividing the value of 0.1 ℃. 6. Oil bath capacity: not less than 23 l. 7. Mixing motor: power 6 w;The speed of 1200 r/min. 8. Ambient temperature: - 10 ℃ ~ + 35 ℃. 9. Relative humidity: < 85%. 10. Temperature sensors, industrial platinum resistance, and its index number for Pt100. 11. Machine power: no more than 1800 w. 12. Capillary viscometer: candy Finn type upstream capillary viscometer is a set of seven teams, models respectively 200, 300, 350, 400, 450, 500, 450 (that is, R tube diameter were 1.02mm, 1.26mm, 1.48mm, 1.88mm, 2.20 mm, 3.10mm, 4.00mm). 13. Appearance size: 530mm* 400mm* 670mm(length * width * is high, including bath crock, etc.).
Introduction Is suitable for the determination of kinematic viscosity of asphalt sample under specified temperature, can also be applied to determination of polyethylene, polypropylene ten hydrogen naphthalene solution viscosity under specified temperature.
