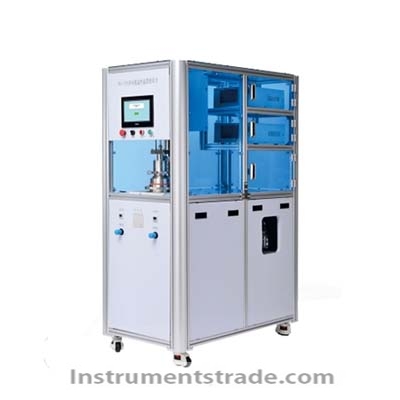

SX-L1056S1 Filter Performance Test Bench Introduction: The SX-L1056S1 filter efficiency test bench is suitable for testing efficiency levels ranging from 40% to 99.95%. It conducts tests on filter materials and filters according to international standards. The design structure of the entire test bench is compact and lightweight. During the operation and testing process, only a suitable power supply and compressed air (water-free and oil-free) are required. It is suitable for use in laboratories, factories, and other similar settings. Technical Specifications: Model: SX L1056S1 Test efficiency range: 40%–99.95% Test area: Maximum 300×300 mm Test flow rate: 10–100 L/min, adjustable, with an accuracy of ±3% Pressure difference measurement: 0–1000 Pa, accuracy ±1% FS Aerosol type: DEHS, NaCl (salty/oily) Particle counter: protective gas jacket, sampling flow rate 2.83 L/min Air pump: Imported, capable of continuous and stable operation Data storage: 1-1000 sets, export via USB Operation interface: 7-inch color touch screen Printing: Built-in thermal printing Power supply: AC 220 V/50 Hz Power: 1 kW Outline dimensions: approximately 900×850×1600 mm Weight: Approximately 150 kg Material: shell made of steel plate with baking paint Operating environment: 0–40 ℃, RH 10%–70% Storage environment: 0–45 ℃, RH 0%–70%
SX-L1056S1 Filter Performance Test Bench Introduction: The SX-L1056S1 filter efficiency test bench is suitable for testing efficiency levels ranging from 40% to 99.95%. It conducts tests on filter materials and filters according to international standards. The design structure of the entire test bench is compact and lightweight. During the operation and testing process, only a suitable power supply and compressed air (water-free and oil-free) are required. It is suitable for use in laboratories, factories, and other similar settings.
