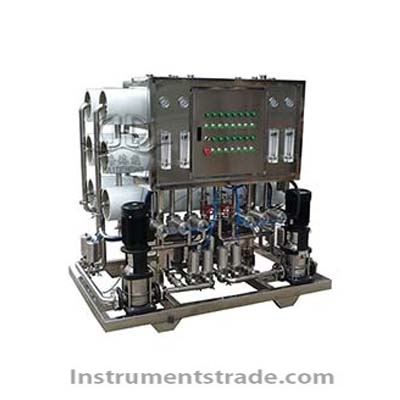

HDNUF-6000L Automatic Hollow Fiber Ultrafiltration System

Product ID：SHGCglxt001

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberHDNUF-6000L

Brand NameHAIDENENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

HDNUF-6000L Fully Automatic Hollow Fiber Ultrafiltration System

Product Introduction
The HDNUF-6000L Fully Automatic Hollow Fiber Ultrafiltration System is designed for the separation, concentration, and purification of macromolecules, as well as water treatment applications. Hollow fiber ultrafiltration membranes operate at relatively low pressure and normal temperatures, enabling membrane separation without phase changes.
The system uses PLC-controlled automatic backwashing and automatic forward and reverse flushing to support stable filtration performance. Its stainless steel construction, sanitary SUS304 pneumatic butterfly valves, and integrated human-machine interface (HMI) make it suitable for industrial water treatment and process applications.
Depending on the membrane configuration, hollow fiber ultrafiltration can remove colloidal particles, bacteria, suspended impurities, and high-molecular-weight substances while retaining selected dissolved minerals. It can also serve as pretreatment for reverse osmosis (RO) systems or as a polishing step in high-purity water production.

Performance Features
• PLC-Controlled Automatic Backwashing: Automatic backwashing helps maintain membrane performance and reduce manual intervention.
• Duty/Standby Configuration: The system adopts a one-in-service, one-standby arrangement to support operational continuity.
• Automatic Forward and Reverse Flushing: Supports membrane cleaning and helps control fouling during operation.
• Manual Chemical Cleaning: Enables chemical cleaning when required by membrane fouling conditions and operating procedures.
• Stainless Steel Construction: Stainless steel equipment construction supports durability in industrial environments.
• Sanitary Pneumatic Valves: Uses SUS304 sanitary pneumatic butterfly valves for automated flow control.
• Multiple Pump Protections: Water pumps include dry-run or low-water protection, overload protection, overtemperature protection, and overcurrent protection.
• Integrated HMI and PLC Control: The operator interface displays relevant operating information and supports PLC-based remote control.
• Flexible Application: Suitable for water filtration, process-water treatment, macromolecule concentration, and RO pretreatment, subject to membrane selection and feed-water conditions.

Working Principle
Hollow fiber ultrafiltration uses semipermeable membranes with selective pore structures to separate suspended and macromolecular substances from water or process liquids.
During filtration, feed liquid passes along or through the hollow fiber membrane structure under a controlled pressure difference. Water and sufficiently small dissolved components pass through the membrane as permeate, while larger particles and retained macromolecules remain in the concentrated stream.
The PLC control system manages automatic backwashing and forward/reverse flushing according to the configured operating sequence. When membrane fouling requires additional treatment, manual chemical cleaning can be performed using membrane-compatible cleaning procedures. The duty/standby configuration and pump protection functions support safer and more reliable operation.

Technical Specifications

Parameter	Specification
Model	HDNUF-6000L
Equipment type	Fully automatic hollow fiber ultrafiltration system
Membrane technology	Hollow fiber ultrafiltration
Control system	PLC
Operator interface	Human-machine interface (HMI)
Remote control	PLC-based remote control
Backwashing	PLC-controlled automatic backwashing
Forward and reverse flushing	Automatic
Chemical cleaning	Manual
Operating arrangement	One duty, one standby
Main equipment material	Stainless steel
Valve type	SUS304 sanitary pneumatic butterfly valves
Pump protection	Low-water/dry-run, overload, overtemperature, and overcurrent protection
Online monitoring	Operating information displayed through the HMI
Main applications	Water purification, industrial filtration, macromolecule concentration, process-water treatment, and RO pretreatment

Note: Rated flow, membrane pore size, operating pressure, recovery rate, water-quality specifications, dimensions, and power requirements were not provided in the source information and should be confirmed with the manufacturer.

Application Scenarios
• Drinking Water Treatment: Ultrafiltration-based removal of colloids and microorganisms when the system is appropriately configured and validated.
• Reverse Osmosis Pretreatment: Reduces suspended solids and colloidal loading before RO treatment.
• High-Purity Water Production: Can be used as a filtration or polishing stage within a suitably designed water-treatment process.
• Food and Beverage Processing: Concentration and separation of selected macromolecules and process liquids.
• Fermentation and Biotechnology: Concentration and purification of macromolecular products.
• Pharmaceutical Processing: Membrane-based separation and concentration where the membrane and equipment materials are suitable for the process.
• Environmental Protection: Industrial wastewater treatment and process-water reuse, depending on feed-water composition and treatment objectives.
• Chemical Industry: Separation and concentration of compatible chemical solutions and macromolecular materials.

HDNUF-6000L vs. Conventional Ultrafiltration Equipment

Feature	HDNUF-6000L	Conventional Manual Ultrafiltration Equipment
Control method	PLC-based automatic control	May require more manual operation
Backwashing	Automatic PLC control	Depends on system configuration
Forward/reverse flushing	Automatic	May be manual or automated
Cleaning options	Automatic flushing and manual chemical cleaning	Depends on design
Operating arrangement	One duty, one standby	Varies by system
Valve configuration	SUS304 sanitary pneumatic butterfly valves	Depends on equipment
Pump safety protection	Multiple protection functions specified	Depends on configuration
Operator interface	HMI with online information display	Varies by model
Remote control	PLC remote-control capability specified	May not be available
Best suited for	Automated industrial filtration and separation	Basic or manually operated filtration applications

Comparison is based on the supplied product description. Actual performance depends on membrane configuration, feed-water quality, and operating conditions.

Frequently Asked Questions
Q1: What is the HDNUF-6000L ultrafiltration system used for?
It is designed for membrane filtration, water purification, macromolecule separation, concentration, and pretreatment for reverse osmosis systems.
Q2: What are the main advantages of hollow fiber ultrafiltration?
Hollow fiber membranes provide a large membrane area in a compact structure and can separate colloids and macromolecular substances under relatively low-pressure conditions.
Q3: Does the HDNUF-6000L support automatic cleaning?
Yes. It supports PLC-controlled automatic backwashing and automatic forward and reverse flushing. Chemical cleaning is performed manually.
Q4: What does the one-duty, one-standby arrangement mean?
It indicates that one unit operates while the other remains on standby, helping support continuity when the system is configured for alternating or backup operation. The exact switching sequence should be confirmed with the manufacturer.
Q5: Can the system remove bacteria and viruses?
Ultrafiltration membranes can remove many bacteria and some viral particles, depending on membrane characteristics and integrity. Actual removal performance must be confirmed through membrane specifications and validation; ultrafiltration alone should not be assumed to guarantee complete virus removal or disinfection.
Q6: Can the HDNUF-6000L be used before reverse osmosis?
Yes. Hollow fiber ultrafiltration is commonly used as RO pretreatment to reduce colloidal and suspended-solid loading. Suitability depends on the feed-water quality and the required pretreatment design.
Q7: What materials are used in the equipment?
The source specifies stainless steel construction and SUS304 sanitary pneumatic butterfly valves. The exact material grades of all wetted components should be confirmed for applications with strict hygiene or chemical compatibility requirements.
Q8: What pump protection functions are included?
The specified protections include low-water or dry-run protection, overload protection, overtemperature protection, and overcurrent protection.
Q9: What capacity and operating pressure does the system support?
The supplied description does not state rated flow or operating pressure. Contact the manufacturer for these values and the corresponding membrane configuration.

Frequently Asked Questions (FAQ)
1. What is the HDNUF-6000L Ultrafiltration System used for?
It is designed for water purification and membrane-based separation, concentration, and purification of macromolecular substances.
2. What is hollow fiber ultrafiltration?
It is a membrane separation process that uses hollow fiber membranes to retain particles and substances larger than the membrane's effective separation threshold.
3. Does the HDNUF-6000L support automatic cleaning?
Yes. It supports PLC-controlled automatic backwashing and automatic forward and reverse flushing. Chemical cleaning is performed manually.
4. What does the one-duty, one-standby configuration mean?
It indicates that one unit operates while another remains on standby, allowing operational flexibility. The exact arrangement should be confirmed against the supplied system configuration.
5. What protections are provided for the water pumps?
The stated protections include low-water protection, overload protection, overtemperature protection, and overcurrent protection.
6. Can the system be used as reverse osmosis pretreatment?
Yes. Ultrafiltration can reduce colloidal and suspended impurities before reverse osmosis, helping protect downstream RO membranes. Actual performance depends on feedwater quality and system design.
7. Can the system produce drinking water?
It can be used in drinking water treatment when appropriately designed for the source water and required standards. Compliance with drinking water requirements must be verified through system specifications and water-quality testing.
8. Can the system be used in pharmaceutical or food processing?
Potentially, yes, provided the membrane materials, wetted components, cleaning procedures, and validation meet the requirements of the intended application.
9. Which technical details should be confirmed before purchase?
Important details include rated flow capacity, operating pressure, membrane pore size, recovery rate, feedwater requirements, and the precise duty/standby arrangement.
