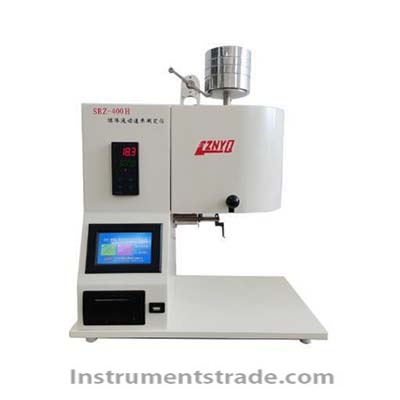

SRZ-400H Melt Flow Rate Tester

Position: Home > > Industry specific instrument > Rubber plastic industry special testing instruments > Melt index instrument > SRZ-400H Melt Flow Rate Tester

SRZ-400H Melt Flow Rate Tester

Product ID：HZXSrrzs021

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSRZ-400H

Brand NameCCZHINENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

SRZ-400H Melt Flow Rate Tester
Product Introduction
The SRZ-400H Melt Flow Rate Tester is a high-precision MFR and MVR testing instrument designed for measuring the melt flow properties of thermoplastic materials. The instrument complies with GB3682-2018 requirements for mass method MFR and volume method MVR testing, while key parameters meet the requirements of ISO1133-2011 standards.
The SRZ-400H melt flow index tester is widely used for evaluating the melt flow rate of polymers including polyethylene (PE), polypropylene (PP), polystyrene (PS), ABS, polyamide, fiber resin, acrylic resin, polyoxymethylene (POM), fluoroplastics, and polycarbonate (PC).
With touchscreen operation, high-accuracy temperature control, automatic cutting positioning, and intelligent calculation functions, the SRZ-400H provides reliable test data for polymer research, material development, and quality control.

Performance Features
• MFR and MVR testing capability
Supports both mass flow rate and volume flow rate measurement methods according to international standards.
• Touchscreen intelligent operation
Replaces traditional control methods with a user-friendly touchscreen interface for easier operation.
• Large color display
High-resolution color screen provides more information display and improved visibility.
• Voice operation guidance
Built-in voice prompts simplify testing procedures and reduce operation errors.
• High-precision temperature control
Equipped with precision temperature control system to maintain stable test conditions.
• Accurate automatic cutting system
Motor-driven cutting mechanism uses photoelectric closed-loop positioning to ensure consistent sample segments.
• Advanced calculation function
Automatically calculates test results, retains decimal values, and improves measurement accuracy.
• Flexible testing process control
Any testing step can be manually skipped according to user requirements.
• Wide application range
Suitable for various thermoplastic polymers and research-grade material evaluation.

Working Principle
The SRZ-400H melt flow rate tester determines polymer flow characteristics by measuring the amount of molten material flowing through a standard die under specified temperature and load conditions.
The testing process:
1.A polymer sample is placed into the heated barrel.
2.The sample is melted at a preset temperature.
3.A specified load is applied through the piston.
4.The molten polymer flows through the standard capillary die.
5.The instrument measures:
• MFR (Melt Mass Flow Rate): mass of material flowing per unit time (g/10 min or g/min)
• MVR (Melt Volume Flow Rate): volume of material flowing per unit time
The automatic cutting system periodically cuts extruded samples, ensuring consistent sample weight and improving repeatability.

Technical Parameters

Parameter	Specification
Model	SRZ-400H
Testing Method	MFR (Mass Method) / MVR (Volume Method)
Standard Compliance	GB3682-2018, ISO1133-2011
Accuracy Grade	Grade 1
Temperature Range	80–400℃
Temperature Accuracy	±0.2℃
Temperature Resolution	0.1℃
Temperature Recovery Time	≤4 min
Maximum Power Consumption	≤0.5 kW
Barrel Inner Diameter	Φ9.550 mm ±0.025 mm
Piston Head Diameter	Φ9.475 mm ±0.015 mm
Piston Head Length	6.35 mm ±0.1 mm
Die Inner Diameter	Φ2.095 mm ±0.005 mm
Die Length	8.00 mm ±0.025 mm
Position Ring Distance	30 mm
Position Control Accuracy	±0.1 mm
MFR Measurement Range	0.1–100 g/min
MVR Measurement Range	0.1–400 g/min
Display	Large Color Touchscreen
Power Supply	AC220V / 0.5kW
Dimensions	460 × 280 × 415 mm
Weight	50 kg

Application Scenarios
1. Plastic Material Research
Used for evaluating melt flow behavior during polymer formulation development and new material research.
2. Polymer Production Quality Control
Suitable for monitoring batch consistency and quality stability of thermoplastic products.
3. Plastic Processing Industry
Applied in injection molding, extrusion, and polymer processing industries to evaluate material processability.
4. Laboratory Material Testing
Ideal for universities, research institutes, and testing laboratories conducting polymer performance analysis.
5. Raw Material Inspection
Used for incoming inspection of plastic raw materials including PE, PP, ABS, PC, POM, and engineering plastics.

SRZ-400H Melt Flow Rate Tester vs Traditional MFR Testing Equipment

Feature	SRZ-400H Melt Flow Rate Tester	Traditional Melt Flow Tester
Control Method	Touchscreen intelligent control	Button/manual operation
Testing Modes	MFR and MVR	Usually single mode
Temperature Accuracy	±0.2℃	Lower precision models available
Display	Large color touchscreen	Small LCD display
Operation Guidance	Voice prompts	Manual operation required
Cutting System	Automatic photoelectric closed-loop positioning	Mechanical positioning
Data Calculation	Automatic precise calculation	Manual calculation possible
Application Range	Research and industrial QC	Basic material testing

FAQ
Q1: What materials can SRZ-400H test?
The SRZ-400H can test various thermoplastics including PE, PP, PS, ABS, PA, POM, fluoroplastics, acrylic resin, and PC.
Q2: What is the difference between MFR and MVR testing?
MFR measures the mass of molten polymer flowing within a specific time, while MVR measures the volume of molten polymer flow.
Q3: Which standards does SRZ-400H comply with?
The instrument complies with GB3682-2018 and key requirements of ISO1133-2011 standards.
Q4: Does SRZ-400H have automatic cutting?
Yes. The instrument uses motor-driven photoelectric closed-loop positioning for accurate automatic cutting.
Q5: How accurate is the temperature control?
The temperature control accuracy reaches ±0.2℃, ensuring stable testing conditions.
Q6: Is the instrument suitable for laboratory research?
Yes. Its precise control, automatic calculation, and wide material compatibility make it suitable for research laboratories and industrial testing centers.

Product Summary
The SRZ-400H Melt Flow Rate Tester is a professional MFR/MVR polymer testing instrument combining high-precision temperature control, touchscreen operation, automatic sample cutting, and intelligent data processing. Designed according to GB3682-2018 and ISO1133-2011 standards, it provides accurate melt flow analysis solutions for plastic manufacturers, research institutions, quality inspection laboratories, and polymer development applications.
