SN-T Benchtop Xenon Arc Weathering Test Chamber for Accelerated Weathering Testing

Position: Home > > Physical property test > Environmental test box > Xenon lamp aging test box > SN-T Benchtop Xenon Arc Weathering Test Chamber

SN-T Benchtop Xenon Arc Weathering Test Chamber

Product ID：WHsd006

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSN-T

Brand NameZHONGKEHUANSHI

Payment TermsTT，PAYPAL，Alibaba.com Pay

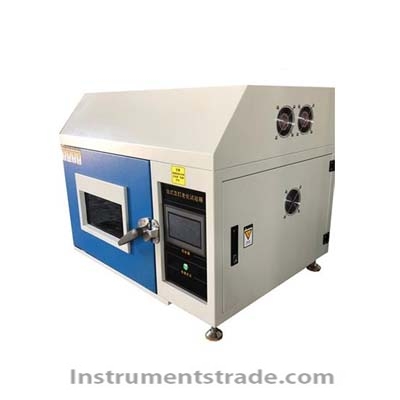

SN-T Benchtop Xenon Arc Weathering Test Chamber
SN-T Benchtop Xenon Arc Weathering Test Chamber is an accelerated weathering testing instrument that uses a xenon arc lamp to simulate the full solar spectrum reaching the earth’s surface. By precisely controlling temperature, humidity, radiation intensity, and water spray conditions, it reproduces outdoor environmental damage and evaluates the light resistance, weather resistance, and aging performance of various materials.
The xenon arc weathering tester is widely used in automotive, coatings, rubber, plastics, pigments, adhesives, textiles, and other industries for product development, quality control, and reliability testing.

Product Features
• Full-spectrum sunlight simulation using xenon arc lamp technology to reproduce natural sunlight aging effects.
• Accelerated weathering testing by combining light irradiation, heat radiation, temperature control, humidity control, and water spray cycles.
• Compact benchtop design suitable for laboratories, research institutions, and quality inspection departments.
• High-precision temperature control system with intelligent microcomputer calculation for stable test conditions.
• SUS304 mirror stainless steel inner chamber provides corrosion resistance and easy cleaning.
• Independent heating and lighting systems reduce interference and improve testing accuracy.
• Adjustable water spray pressure and spray cycles simulate different outdoor climate conditions.
• Equipped with safety protection functions including over-temperature protection, leakage protection, and fault alarm shutdown.

Working Principle
The SN-T Xenon Arc Weathering Test Chamber uses a xenon arc lamp as the light source to generate a spectrum close to natural sunlight, including ultraviolet, visible, and infrared wavelengths.
During testing, material samples are exposed to controlled xenon lamp radiation while the chamber regulates temperature, humidity, and water spray conditions. The combined effects of light, heat, moisture, and thermal cycling accelerate material degradation processes such as:
• Color fading
• Gloss reduction
• Cracking
• Powdering
• Strength deterioration
• Surface aging
By comparing the physical and optical changes before and after exposure, users can evaluate material durability and weather resistance.

Key Performance Features
Full Solar Spectrum Simulation
The xenon arc lamp provides a continuous spectrum similar to natural sunlight, making it suitable for evaluating outdoor aging behavior of materials.
Accelerated Aging Testing
The system reproduces harsh environmental conditions to shorten testing cycles and provide reliable durability evaluation results.
Precision Temperature Control
Advanced microcomputer control technology ensures stable temperature operation with excellent uniformity and accuracy.
Water Spray Simulation
The integrated spray system simulates rain exposure and thermal shock conditions commonly encountered in outdoor environments.

Technical Specifications

Parameter	Specification
Model	SN-T
Product Type	Benchtop Xenon Arc Weathering Test Chamber
Temperature Range	RT+10℃～70℃
Black Panel Temperature	63℃±3℃
Temperature Fluctuation	≤±0.5℃
Temperature Uniformity	≤±2℃
Temperature Deviation	≤±1.5℃
Sample Tray Size	251 × 460 mm
Glass Filter	1 piece
Xenon Lamp Type	Air-cooled xenon lamp
Xenon Lamp Quantity	2 pcs (1 operating + 1 spare)
Xenon Lamp Power	2.5KW × 1
Sample Rack to Lamp Distance	230～280 mm
Spray Cycle	102 min light / 18 min spray or 48 min light / 12 min spray
Spray Pressure	0.12～0.15 MPa
Spray Nozzle Diameter	Φ0.8 mm
Power Supply	AC380V / 50Hz

Optional Irradiance Settings

Irradiance Mode	Value
Broadband 300–400 nm	60 W/m²
Narrowband 420 nm	1.10 W/m²
340 nm Irradiance	0.51 W/m²
Full Spectrum 290–800 nm	550 W/m²

Chamber Structure
External and Internal Materials
• External shell is manufactured from A3 steel plate with CNC processing and electrostatic powder coating for durability and appearance.
• Inner chamber is made of SUS304 mirror stainless steel with excellent corrosion resistance.
• High-temperature resistant sealing strips ensure reliable chamber sealing during testing.
• Ergonomic non-reaction door handle improves operation convenience.
Air Circulation System
• Long-axis fan motor provides strong air circulation.
• High-temperature resistant stainless steel multi-blade impeller ensures vertical airflow circulation.
• Uniform temperature distribution improves test reliability.
Control System
• Equipped with intelligent SAMWON-ST series temperature controller from Korea.
• Temperature display accuracy reaches 0.1℃.
• High-precision microcomputer timer controller provides accurate test time management.
• Intelligent PID calculation optimizes heating output and improves energy efficiency.
Heating System
• Uses far-infrared stainless steel high-speed heating elements.
• Heating system and illumination system operate independently.
• Microcomputer power calculation provides accurate temperature regulation and efficient energy consumption.
Illumination System
• Metal black panel thermometer monitors sample surface temperature.
• High-quality xenon arc lamp tubes provide approximately 1800–2000 hours service life.
• Stable optical output ensures repeatable weathering test results.
Water Spray System
• Uses tap water with solid content below 20 ppm.
• Water spray system adopts non-recycling spray design.
• Spray pressure adjustable from 0.12 to 0.15 MPa.
• Two spray nozzles are installed at the top of the working chamber.
Safety Protection System
• Over-temperature protection
• Leakage protection
• Fault alarm and automatic shutdown
• Safe operation monitoring system

Applications
SN-T Xenon Arc Weathering Test Chamber is widely used for accelerated aging and durability evaluation of:

Industry	Testing Applications
Automotive Industry	Interior materials, exterior parts, coatings, plastics
Coating Industry	Paints, protective coatings, pigments
Rubber Industry	Rubber products, seals, tires
Plastic Industry	Polymer aging resistance evaluation
Textile Industry	Fabric color fastness and durability testing
Adhesive Industry	Aging resistance of bonding materials
Research Institutions	Material development and reliability studies

Xenon Arc Weathering Test Chamber vs UV Weathering Tester

Comparison	Xenon Arc Weathering Test Chamber	UV Weathering Tester
Light Source	Xenon arc lamp	UV fluorescent lamp
Spectrum Simulation	Full solar spectrum	Mainly UV spectrum
Testing Accuracy	Closer to real outdoor exposure	Focuses on UV degradation
Applicable Materials	Wide range of materials	Mainly UV-sensitive materials
Applications	Automotive, plastics, coatings, textiles	Coatings, polymers, outdoor materials
Environmental Simulation	Light + heat + humidity + spray	Mainly UV + condensation

Why Choose SN-T Xenon Arc Weathering Test Chamber?
• Provides realistic sunlight simulation for reliable material durability evaluation.
• Compact laboratory design saves installation space.
• Suitable for R&D laboratories and quality control departments.
• Combines multiple environmental factors into one accelerated aging system.
• Helps manufacturers improve product reliability and reduce outdoor testing time.

Frequently Asked Questions (FAQ)
1. What is a xenon arc weathering test chamber used for?
A xenon arc weathering test chamber is used to simulate natural sunlight and outdoor climate conditions to evaluate material aging, color fading, cracking, and weather resistance.
2. What materials can be tested with the SN-T xenon weathering chamber?
It can test automotive components, coatings, plastics, rubber products, textiles, pigments, adhesives, and other materials requiring weather durability evaluation.
3. Why use a xenon lamp instead of a UV lamp?
A xenon lamp provides a broader spectrum closer to natural sunlight, including ultraviolet, visible, and infrared wavelengths, making it suitable for more realistic outdoor aging simulation.
4. Does the SN-T chamber include water spray testing?
Yes. The chamber integrates adjustable water spray cycles to simulate rain exposure and moisture-related aging effects.
5. How long does xenon lamp replacement usually take?
The xenon lamp tube typically provides approximately 1800–2000 hours of service life depending on operating conditions.
6. What factors should be considered when purchasing a xenon weathering test chamber?
Important factors include lamp type, irradiance control, temperature accuracy, spray function, sample capacity, control system reliability, and compliance with relevant testing standards.
