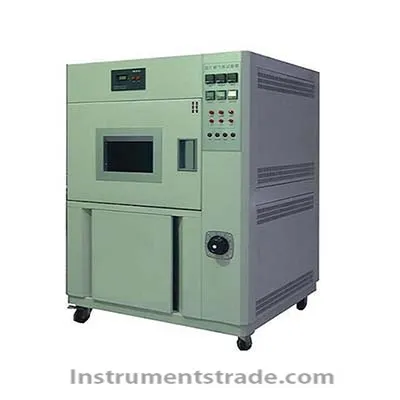

SN - 500 xenon lamp aging test chamber for coating industry

Product ID:WHsd002

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSN - 500
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Sunshine and moisture damage to the material nature, each year is difficult to estimate the economic losses. And mainly includes the damage done by fades, yellowing, color, strength decrease, embrittlement, oxidation, brightness, crack, blur and pulverization, etc. To be exposed to sunlight after directly or through the window products and materials, the greatest risk is affected by the light damage. Long-term exposure to the fluorescent lamp, halogen lamp or other light emitting light material, may also be affected by the photodegradation. Xenon lamp weather-resistant test box adopts can simulate full sunlight spectrum xenon arc lamp to represent the destructive waves under different environment. This equipment is for scientific research, product development and quality control to provide the corresponding environmental simulation and accelerated test. Xenon lamp weather-resistant test chamber can be used for the selection of new materials, or improve existing materials
    Features:
    1. Indoor material light fastness test
    2. The model climate environment
    3. The relative humidity control
    4. The full spectrum xenon lamp;
    5. Solar irradiance eye control;
    6. Relative humidity control;
    7. The blackboard and/or test chamber air temperature control system;
    Technical indicators:
    Studio size: W760 D500 * * H500
    Sample pallet size: 450 * 450 mm
    Adjustable temperature range: room temperature to 110 ℃
    Humidity range: 30 ~ 95% R? H is adjustable
    The board temperature: 40 ~ 110 ℃ + 3 ℃
    Temperature fluctuation degree, plus or minus 0.5 ℃
    Temperature uniformity: plus or minus 2.0 ℃
    Glass filter: 3 only
    Xenon lamp light source: import air cooled tubes
    Xenon lamp quantity: 3
    Xenon lamp power: 1.8 KW/each
    Heating power: 2 kw
    Humidifying power: 1.0 KW
    Rack and light distance: 230 ~ 280 mm
    Wavelength: 290 ~ 800 nm
    Adjustable light cycle, time: 1 ~ 999 h, m, s
    Irradiance: 290 nm - 290 nm wavelength between irradiance to an average of 550 w /
