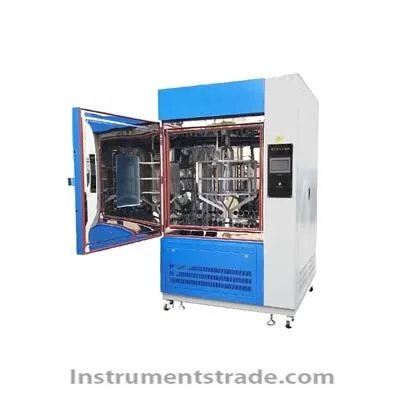

SN – 900 xenon lamp weather-resistant test case

Product ID:WHsd005

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSN – 900
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Full spectrum xenon lamp, a variety of alternative filtration system. Stability of thin film by means of simulating the sun's radiation performance of the component. Type A - SN xenon lamp test box adopts can simulate full sunlight spectrum xenon arc lamp to reproduce the destructive waves of light of different environment, for scientific research, product development and quality control to provide the corresponding environmental simulation and accelerated test. Type A - SN xenon lamp test box can be used for the selection of new materials and improving existing material or assessment of change after the change of the durability test, can be A good simulation under different environmental conditions, materials exposed to changes in the sun.
    Box body is made of nc machine tool processing forming, modelling beautiful generous, and with no reaction handle, easy to operate.
    Enclosure bladder imported advanced stainless steel (SUS304) mirror plate, outside the box body is made of A3 steel plate welded bravery, increase the appearance quality and cleanliness.
    Equipment is mainly divided into the main body, heating, humidification, cooling, dehumidification, display control parts, air conditioning parts and other accessories, safety protection measures;
    Technical indicators:
    Sample pallet size: 450 * 720 mm (suitable for any shape specimen)
    Adjustable temperature range: RT ~ 80 ℃
    Humidity range: 45 ~ 90% R? H is adjustable
    The board temperature: 63 ℃, 100 ℃ + 3 ℃
    Temperature fluctuation degree, plus or minus 0.5 ℃
    Temperature deviation degree: plus or minus 2.0 ℃
    Humidity deviation: plus or minus 2% or less
    Glass filter: 3 pieces
    Xenon lamp quantity: 3
    Rainfall time: 0 ~ 9999 min, continuous rainfall is adjustable
    Rain cycle: 0 ~ 240 min, interval (break) rainfall is adjustable
    Spray nozzle aperture: Ф 0.8 mm
    Xenon lamp power: 1.8 KW/each
    Heating power: 3 kw
    Humidifying power: 1.5 KW
    Rack and light distance: 230 ~ 280 mm
    Wavelength: 290 ~ 800 nm
    Irradiance: 290 nm - 290 nm wavelength irradiance of 550 w /


  • Brief introduction:
    Full spectrum xenon lamp, a variety of alternative filtration system. Stability of thin film by means of simulating the sun's radiation performance of the component. Type A - SN xenon lamp test box adopts can simulate full sunlight spectrum xenon arc lamp to reproduce the destructive waves of light of different environment, for scientific research, product development and quality control to provide the corresponding environmental simulation and accelerated test.
