Instrument description:

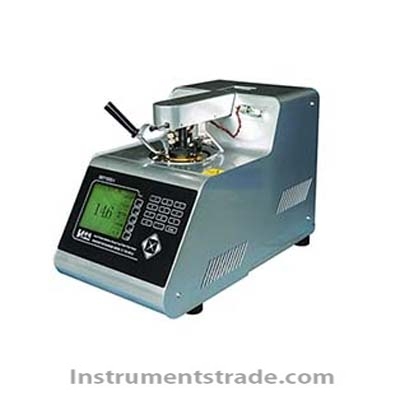

The SKY1002-I automatic petroleum product flash point tester (binsky-martin closed cup method) determines the flash point of petroleum products in accordance with ASTM d93-02. This instrument has simple interface operation, convenient parameter setting, and can be sensitive to capture flash point and flash point. Users can choose 4 modes of test.
In order to facilitate the accurate measurement of flash and flash points in laboratories with different atmospheric pressures in different regions, the instrument can be calibrated according to the data of different atmospheric pressures. Main features:
1) ion ring detection system, can accurately and sensitively automatically capture flash point and ignition point
2) the ion ring can be easily disassembled and cleaned
3) microcomputer control, light touch key setting, high brightness large screen LCD display
4) user-friendly interface operation, with system fault automatic error reporting function
5) the test results can be printed with a plug-in printer
6) it can save 500 sets of test results, and can call up any query when needed
7) the instrument data has the function of correction of ambient atmospheric pressure (subject to the model of the machine, manual and automatic correction).
8) in the ignition test mode, the system has the function of automatic fire suppression
9) the instrument has a strong exhaust air system. After each analysis, the system is started, and the instrument can cool down extremely quickly
10) test data can be directly output through the serial port Technical parameters:
Measuring range: 40 ~ 370 ℃
Heating power: 500W
Flash point detection: thermocouple detection system
Temperature detection: PT100 platinum resistance
Ignition power: < 15W
Ignition gas: liquefied gas, butane gas, pipeline gas, natural gas (pressure <10kPa)
Cooling mode: air cooling
Printing machine: external, RS232 interface
Communication interface: RS232
Power supply voltage: ac198-242v;49-51 hz
