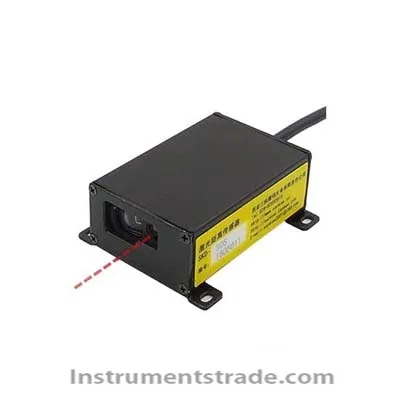

SKD-20S wide temperature industrial laser ranging sensor for Industrial Ranging

Product ID:CLCDcjy003

US$0.00 ~ US$1.00 PDF Format
Supply Ability:1000SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSKD-20S
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
            SKD-20S wide temperature industrial laser ranging sensor is developed by our company a powerful new range of distance measurement equipment. It has the advantages of measuring precision, fast, long distance, non-contact and so on. It has been applied in various industrial occasions such as mine, pier, bridge, tunnel and construction, and has gained wide acclaim from users.
    Features:
    1 long distance, high precision measurement
            0.2m-30m range, the measurement accuracy of up to ± 2mm.
    2 simple and reliable mode of operation
            Computer instruction operation or power on automatically work, can achieve unattended continuous measurement.
    3 rich and comprehensive output mode
            Digital output (RS232 / RS485 / RS422);
            Analog output (current 4-20mA / voltage 0-10V);
            Switch output (single / dual) A variety of output options are selected by you.
    4 can be competent for all kinds of harsh environments
            Solid aluminum alloy shell,
            Good waterproof and dustproof performance,
            External heating / cooling function, response to extreme temperature working environment (custom).
    5 easy and reliable installation
            Use 4 M4 screws to securely install.
    Technical indicators:
    Measuring range: 0.2m to 30m
    Measurement accuracy: typical: ± 2mm
    Minimum resolution: 1mm
    Laser type: 635nm, red visible light
    Laser level: two, power <1mW
    Laser diameter (at 25 ° C):
    6mm - at 10m away
    30mm - at 50m away
    Measuring method: single measurement, continuous measurement
    Operation mode Host computer command control
    Power input: DC 5V / 1A
    Data output: Digital output: RS232 / RS485 serial output
    Temperature range: Storage temperature: -20 to +70
    Operating temperature: -10 to +50
    Volume and weight: 52mm * 42mm * 130mm, 170g

  • Introduction:
            SKD-20S wide temperature industrial laser ranging sensor is developed by our company a powerful new range of distance measurement equipment. It has the advantages of measuring precision, fast, long distance, non-contact and so on. It has been applied in various industrial occasions such as mine, pier, bridge, tunnel and construction, and has gained wide acclaim from users.
