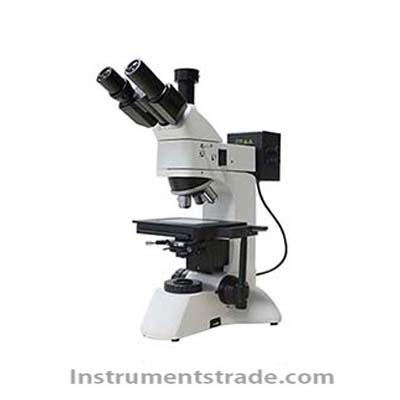

SGO-3231 Upright Transmitted & Reflected Metallurgical Microscope

Product ID：GGXjx017

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberSGO-3231

Brand NameSHENSHIGUANGGU

Payment TermsTT，PAYPAL，Alibaba.com Pay

SGO-3231 Upright Transmitted & Reflected Metallurgical Microscope

Product Introduction
The SGO-3231 Upright Transmitted & Reflected Metallurgical Microscope is designed for microscopic observation of both opaque and transparent specimens. It adopts an advanced infinity optical system and modular functional design to provide clear imaging, flexible illumination, and convenient system expansion.
The microscope supports transmitted and reflected illumination, either independently or simultaneously, as well as polarized-light observation. With a trinocular observation tube and optional CCD, digital camera, or DSLR camera adapters, it can also support high-resolution digital imaging and microscopic recording.
The SGO-3231 is suitable for metallography, biology, mineralogy, precision engineering, electronics, materials research, education, and industrial inspection, making it suitable for schools, research institutes, and manufacturing facilities.

Performance Features
•   Infinity optical system for clear and high-quality microscopic imaging.
•   Trinocular observation tube with 30° inclination and adjustable diopter.
•   Supports 100% transmitted-light photography and camera connection.
•   WF10X wide-field eyepiece provides a broad observation field.
• Transmitted and reflected illumination can operate independently or simultaneously.
•   Reflected illumination supports both bright-field and polarized-light observation.
•   Built-in field diaphragm and aperture diaphragm for effective illumination and contrast control.
•   6V 20W halogen illumination with adjustable brightness.
•   Integrated yellow, blue, green filters and frosted glass for flexible illumination.
• Abbe condenser NA 1.25 with vertical adjustment for transmitted-light observation.
•   Coaxial coarse and fine focusing with adjustable coarse-focus tension.
•   Fine focusing graduation of 2 μm, with locking and limit mechanisms.
•   Four-hole nosepiece with inward ball positioning.
•   Optional CCD, digital camera, and DSLR camera adapters for digital imaging.

Working Principle
The SGO-3231 uses an infinity-corrected optical system to collect and focus light from the specimen through the selected objective and eyepiece.
For transparent specimens, the transmitted illumination system directs light through the condenser and specimen before the image is formed by the objective. The field diaphragm, aperture diaphragm, filters, and condenser can be adjusted to optimize illumination and image contrast.
For opaque specimens, the reflected-light illumination system directs halogen light onto the specimen surface. Reflected light is collected by the objective for observation. The built-in polarizer and analyzer enable polarized-light observation, which is useful for examining optical characteristics of suitable materials.
The trinocular port allows a camera or CCD device to be connected for digital observation, imaging, and recording.

Technical Parameters

Parameter	Specification
Model	SGO-3231 Metallurgical Microscope
Optical System	Infinity optical system
Observation Tube	Trinocular, 30° inclined, adjustable diopter
Eyepiece	WF10X wide-field, field of view Φ18 mm
Objectives	Long-working-distance plan achromatic, no-cover-glass: PL 5X/0.12, PL L10X/0.25, PL L20X/0.40, PL L50X/0.70
Objective Selection	40X / 50X / 60X, one of three configurations
Nosepiece	Four-hole, inward ball positioning
Mechanical Stage	Double-layer mechanical stage
Stage Size	210 × 140 mm
Stage Travel	63 × 50 mm
Reflected Illumination	6V 20W halogen lamp, adjustable brightness
Reflected-Light Components	Field diaphragm, aperture diaphragm, polarizer, yellow/blue/green filters, frosted glass
Polarized Observation	Polarizer and analyzer
Focusing Mechanism	Coaxial coarse and fine focusing
Fine Focus Graduation	2 μm
Focusing Features	Locking and limit mechanisms; adjustable coarse-focus tension
Transmitted Illumination	6V 20W halogen lamp, adjustable brightness
Condenser	Abbe condenser, NA 1.25, vertically adjustable
Transmitted-Light Filters	Blue filter and frosted glass
Collector	Suitable for halogen illumination, built-in field diaphragm
Imaging Expansion	CCD, digital camera, DSLR camera adapters

Application Scenarios
The SGO-3231 is suitable for:
•   Metallographic analysis of metals and opaque materials.
•   Materials science and engineering research.
•   Mineralogical microscopic observation.
•   Biological and transparent specimen observation.
•   Precision engineering inspection.
•   Electronic component and material inspection.
•   Polarized-light observation of suitable specimens.
•   University and laboratory teaching.
•   Industrial quality inspection and research.
•   Digital microscopic imaging and documentation.

SGO-3231 vs. Conventional Single-Illumination Microscopes

Feature	SGO-3231	Conventional Single-Illumination Microscope
Illumination	Transmitted + reflected	Usually one illumination mode
Opaque Specimens	Suitable	Depends on configuration
Transparent Specimens	Suitable	Depends on configuration
Polarized Observation	Supported	Depends on model
Observation Tube	Trinocular	Often binocular or monocular
Optical System	Infinity optical system	Depends on model
Objectives	Long-working-distance plan achromatic	Depends on model
Camera Expansion	CCD/digital camera/DSLR adapters	Depends on model
Mechanical Stage	210 × 140 mm, 63 × 50 mm travel	Depends on model
Fine Focusing	2 μm graduation	Depends on model
Filters	Yellow, blue, green and frosted glass	Depends on model

FAQ
1. What is the SGO-3231 metallurgical microscope used for?
It is designed for microscopic observation and analysis of both opaque and transparent specimens, particularly in metallography, materials science, mineralogy, electronics, and precision engineering.
2. Does the SGO-3231 support both reflected and transmitted illumination?
Yes. It provides both reflected-light and transmitted-light illumination, which can operate independently or simultaneously.
3. Can the SGO-3231 perform polarized-light observation?
Yes. The reflected illumination system includes a polarizer and analyzer for polarized-light observation.
4. What type of objectives are used?
The microscope uses long-working-distance plan achromatic objectives without cover glass, including PL 5X/0.12, PL L10X/0.25, PL L20X/0.40, and PL L50X/0.70.
5. What is the stage size?
The double-layer mechanical stage measures 210 × 140 mm, with a travel range of 63 × 50 mm.
6. What is the fine focusing resolution?
The fine focusing graduation is 2 μm.
7. Can a camera be connected to the microscope?
Yes. Optional CCD, digital camera, and DSLR camera adapters can be configured for digital observation, imaging, and recording.
8. What type of illumination source is used?
Both transmitted and reflected illumination use a 6V 20W halogen lamp with adjustable brightness.
