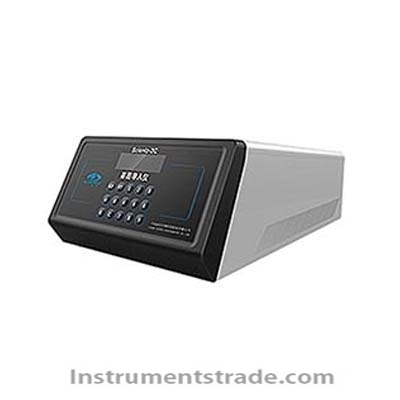

Scientz-2C01 Intelligent Gene Pulser

Product Introduction
The Scientz-2C01 Intelligent Gene Pulser is a microprocessor-controlled electroporation instrument designed for gene transfer and cell transfection in molecular biology research. It uses electrical pulses to facilitate the introduction of DNA and other molecules into bacteria, yeast, mammalian cells, plant cells, and other biological materials.
Featuring an integrated design, LCD display, adjustable voltage and capacitance settings, and customizable program storage, the Scientz-2C01 supports flexible experimental parameter selection, convenient operation, and reproducible electroporation workflows.

Performance Features
• Integrated design: Compact system with intuitive controls and clear LCD display.
•Microprocessor control: Precisely manages pulse discharge and experimental settings.
• Adjustable pulse parameters: Multiple high- and low-voltage, capacitance, and parallel-resistance settings support different experimental requirements.
• Custom program storage: Stores user-defined programs without a specified preset limit.
• Experiment log storage: Helps record and manage experimental operations.
• RC time constant configuration: Allows different combinations of resistance and capacitance settings.
• Efficient operation: Simplifies electroporation workflows and reduces hands-on operating time.
• Reproducible experiments: Programmable parameters support consistent experimental conditions.

Working Principle
The Scientz-2C01 uses electroporation, in which controlled electrical pulses temporarily increase cell membrane permeability, facilitating the entry of DNA or other target molecules into cells.
The instrument generates exponential-decay pulses and allows users to configure voltage, capacitance, and parallel resistance. These parameters influence pulse characteristics and can be selected according to the biological material and experimental protocol. After electroporation, cells can recover under suitable conditions for subsequent analysis.

Technical Parameters

Parameter	Specification
Model	Scientz-2C01
Pulse Waveform	Exponential decay
High-Voltage Output	400–2500 V
Low-Voltage Output	50–450 V
High-Voltage Capacitance	1, 5, 6, 25, 30, 31 µF
Low-Voltage Capacitance	100–1675 µF, 25 µF increments
Parallel Resistance	30 settings; listed values include 50, 100, 150, 1600 and ∞ Ω
Control System	Microcomputer-controlled
Time Constant	RC time constant with configurable combinations
Display	LCD
Main Unit Dimensions	368 × 316 × 229 mm
Net Weight	10.5 kg
Packaging Dimensions	480 × 420 × 280 mm

Note: The parallel-resistance specifications above follow the supplied source; confirm the complete resistance settings with the manufacturer before ordering.

Application Scenarios
•   Bacterial transformation: Introducing DNA into competent bacterial cells.
• Yeast and microbial research: Electroporation-based genetic modification of microorganisms.
• Mammalian cell transfection: Studying gene expression and cellular functions.
•   Plant biotechnology: Gene transfer into plant tissues and protoplasts.
•   Cell fusion research: Supporting cell hybridization and fusion experiments.
• Functional genomics: Introducing marker genes or functional genes for research.
• Cellular and molecular studies: Investigating cellular responses to introduced drugs, proteins, antibodies, and other molecules.

Scientz-2C01 vs. Conventional Gene Transfer Methods

Comparison Item	Scientz-2C01 Electroporation	Chemical-Based Gene Transfer
Delivery Method	Electrical pulses temporarily increase membrane permeability	Chemical reagents facilitate molecule uptake
Parameter Control	Adjustable voltage, capacitance, and resistance	Depends on reagent formulation and protocol
Biological Applications	Bacteria, yeast, mammalian cells, and plant materials, subject to protocol suitability	Varies by reagent and cell type
Program Management	Custom program and experiment log storage	Usually managed through external records
Workflow	Instrument-controlled pulse delivery	Reagent preparation and incubation are typically required
Optimization	Electrical parameters can be adjusted for different samples	Reagent concentration and incubation conditions are optimized

Actual transformation or transfection efficiency depends on cell type, sample preparation, pulse settings, and the experimental protocol.

Frequently Asked Questions (FAQ)
1. What is the Scientz-2C01 Intelligent Gene Pulser used for?
It is used for electroporation-based gene transfer and cell transfection in molecular biology and biotechnology research.
2. Which biological samples can it be used with?
Potential applications include bacteria, yeast, other microorganisms, mammalian cells, plant tissues, and protoplasts, provided suitable protocols and operating conditions are used.
3. What is the high-voltage output range?
The high-voltage output range is 400–2500 V.
4. What is the low-voltage output range?
The low-voltage output range is 50–450 V.
5. What pulse waveform does the instrument generate?
The Scientz-2C01 generates exponential-decay pulses.
6. Can users customize and save experimental programs?
Yes. The instrument supports user-defined program storage and experiment log storage.
7. How does electroporation introduce DNA into cells?
Controlled electrical pulses temporarily increase cell membrane permeability, facilitating the entry of DNA or other target molecules.
8. Does electroporation guarantee higher transformation efficiency than chemical methods?
Not in every case. Efficiency depends on the cell type, sample preparation, electrical parameters, recovery conditions, and protocol optimization.
9. What are the dimensions and weight of the main unit?
The main unit measures 368 × 316 × 229 mm and weighs approximately 10.5 kg.
