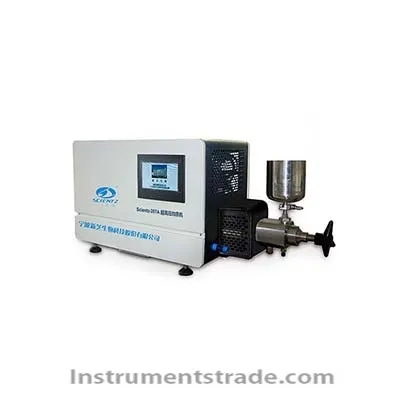

Scientz-207A ultra high pressure homogenizer for biological sample processing

Product ID：SYHHFSjrh015

Price: Please inquire PDF Format

Supply Ability:80 SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberScientz-207A

Brand NameXZSW

Payment TermsT/T, paypal

Introduction:
The Scientz-207A ultra-high pressure homogenizer utilizes the ultra-high pressure energy generated by the servo motor to instantaneously release the material through the slit, and the material is crushed, homogenized and emulsified under the action of high shear effect, cavity effect and collision effect. , disperse the effect, and maintain a constant pressure working state. The particle size of the material can be uniformly refined to below 100 nm, and the breaking rate is more than 95%. It can be used for the treatment of fat emulsion, liposome, cosmetics, lipid nanoparticles, nanosuspension, fermenter samples, and bioengineering laboratories and medicines. It is a standard equipment for the research and development and production of bio-engineering and bio-pharmaceutical industries. It can also be used for emulsification and homogenization of dairy, food and beverage, juice, pharmaceutical, biological and other industries. Homogenization. The machine has a built-in cooling circulation system to directly cool the homogenizing head. All the contact material pipes are made of 316L stainless steel. It can also purchase homogenizing valves for different applications. The product has the advantages of high pressure, small volume, light weight, convenient operation, intuitive display, high processing efficiency and large sample volume. Has applied for invention patents and utility model patents.
Features:
1. Design homogenization pressure 0～207Mpa can be adjusted arbitrarily to meet the needs of nano pharmaceutical customers;
2, the minimum sample processing volume is 15ml;
3. The key components are imported from Germany and Japan and have a long service life;
4. The main engine power is powered by Japanese imported servo motor, which has stable and reliable working performance and long service life.
5. The metal in contact with the material is all made of 316L stainless steel material, and the pipe part is polished to have a mirror effect to prevent sample residue; meet the requirements of food and medicine.
6, automatic injection, continuous work, no need to exhaust;
7, using physical homogenization method, no material residue;
8, with special tools for sealing parts to facilitate replacement;
9, the operation is simple, the maintenance service is more convenient and cost-effective;
Technical Parameters:

Maximum working pressure	1800bar/180Mpa/26100psi
Maximum design pressure	2070bar/207Mpa/30015psi
Maximum throughput	15 L/H (250ml/min)
Minimum throughput	15ml
Material residue	0ml (no residue)
Motor power	3.0Kw/380V/50Hz
Dimensions	L1070W340H460
weight	<60KG
Maximum feed particle	<100 micron
flow control	Freely regulate flow
Pressure and temperature sensor	German brand pressure sensor
Built-in cooler	Configure the cooler, no material consumption, control the homogenization temperature
Whether you need to vent	No need to vent
Electrical control	Dedicated PLC program
Condensate water tray	With condensate tray
